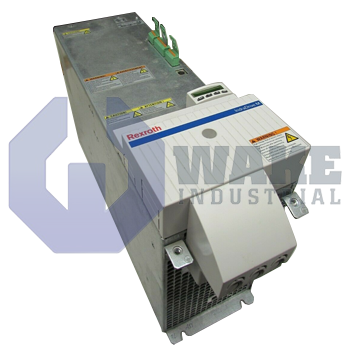

HMV01.1E-W0075-A-07-FCN1 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911332026
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
37 Seconds
The Bosch Rexroth Indramat HMV01.1E-W0075-A-07-FCN1 is part of the HMV IndraDrive Supply Units series and is a feeded supply unit designed for efficient power conversion. It delivers a rated output power of 75 kW with an internal air cooling system using an integrated blower, operates at a DC bus nominal voltage of 700 V, and has an IP20 protection rating.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HMV01.1E-W0075-A-07-FCN1 is a supply module from Bosch Rexroth Indramat in the HMV IndraDrive Supply Units series. In a multi-axis system, it converts incoming three-phase mains power into a stabilized DC link that can be shared by connected inverters and drive controllers. This central power stage supports coordinated motion across multiple axes while concentrating the incoming power connection in one module. It also manages energy flow between the supply network and the common bus during normal operation. Because the supply is centralized, downstream axes can draw from the same DC source instead of relying on separate mains conversion in each drive.
The module can continuously deliver 75 kW to the DC network, allowing downstream axes to draw substantial power without overloading the supply section. Its bus operates at a nominal DC 700 V, which gives connected drives a stable energy source for acceleration and regenerative events. Heat is removed by internal air cooling with an integrated blower, so cabinet air passes across the heat sink without external ducting. The enclosure is rated IP20, which helps limit accidental contact with live parts when the unit is installed inside a closed cabinet. The unit is Design Version 1. This layout keeps the cooling method and enclosure style straightforward for standard control-cabinet installation.
Power enters through a fed connection, meaning the supply section is connected directly to the mains rather than supplied by an upstream converter. The device is classified as an HMV Supply Unit, so it serves as the power interface for the shared DC bus in an IndraDrive installation. It is built as Series Version 01, which identifies its product revision within this line. A direct mains connection shortens the input path and keeps the supply arrangement simple inside the cabinet. This setup also supports use with compatible line components and downstream inverter modules on the same bus.
Frequently Asked Questions about HMV01.1E-W0075-A-07-FCN1:
Q: What cooling method is used on the HMV01.1E-W0075-A-07-FCN1 supply unit?
A: The HMV01.1E-W0075-A-07-FCN1 utilizes internal air cooling with an integrated blower.
Q: What is the DC bus nominal voltage of the HMV01.1E-W0075-A-07-FCN1?
A: This supply unit is rated for a DC bus nominal voltage of 700 V, supporting high power industrial applications.
Q: What is the rated output power of the HMV01.1E-W0075-A-07-FCN1?
A: The HMV01.1E-W0075-A-07-FCN1 delivers a rated output power of 75 kW for demanding drive system requirements.
Q: What is the protection rating for the HMV01.1E-W0075-A-07-FCN1?
A: This model is manufactured with a protection rating of IP20, suitable for installations where touch protection is required but not water-tightness.
Q: What design version is the HMV01.1E-W0075-A-07-FCN1 supply unit?
A: The HMV01.1E-W0075-A-07-FCN1 is produced in Design Version 1 as specified in its documentation.
