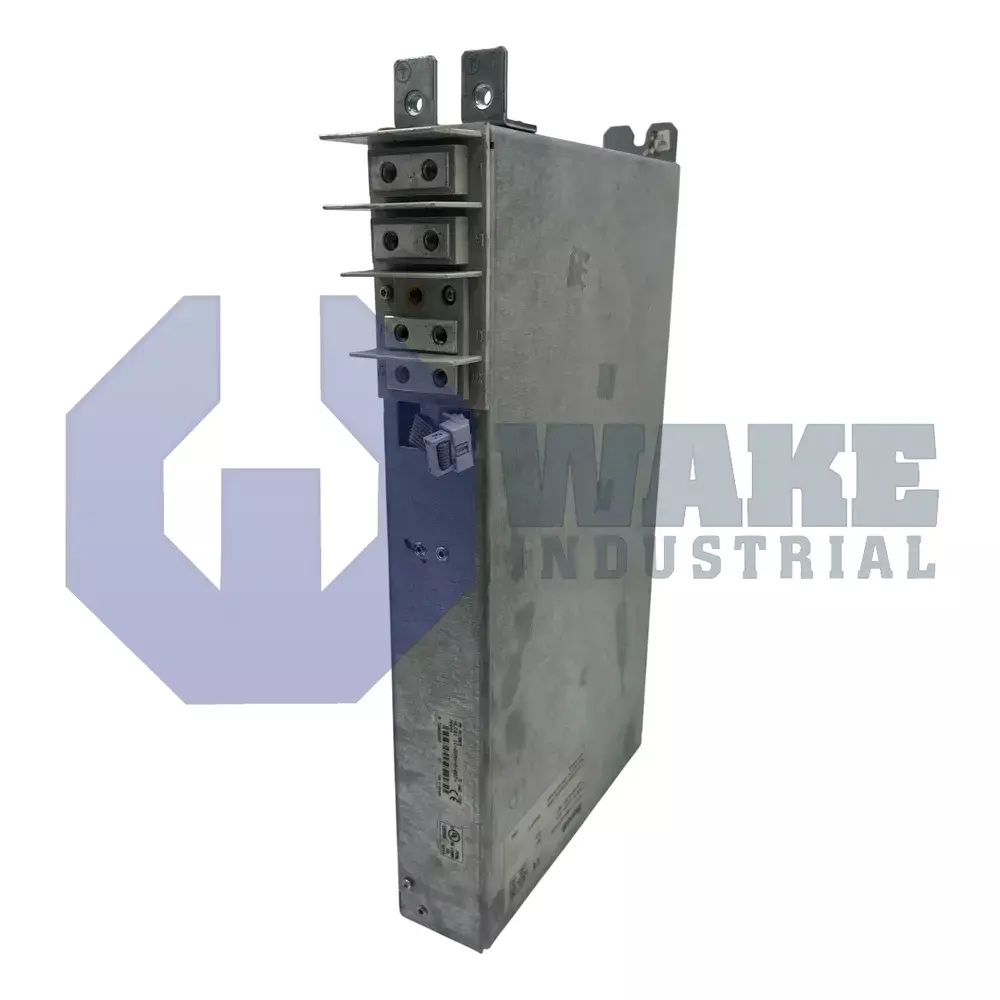

HLC01.1C-02M4-A-007-NNNN
MPN: R911308870
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 1-2 Days
The HLC01.1C-02M4-A-007-NNNN Drive is manufactured by Rexroth Indramat Bosch. This drive has a Nominal Capacitance of 2.4 mF and a Nominal DC Bus Voltage of DC 700 V. This HLC Drive is also under the IP20 Protection type.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HLC01.1C-02M4-A-007-NNNN is a product of Bosch Rexroth Group. It is a DC capacitor that acts as a component of IndraDrive drive systems. It features an input voltage of 245 – 750 DC V, a 2.4mF nominal DC bus capacitance, 200S discharge time from 820V to 50V and insulation resistance of >25MOhm. It comes with a natural convection cooling method and a power dissipation of 24W. The ambient operating temperature is 55 degrees. A high input voltage translates into lower stored energy since the difference in voltage between the DC bus voltage and the bleeder threshold decreases.
The HLC01.1C-02M4-A-007-NNNN comes with an X1 Bus module that facilitates the exchange of data between devices. When looped to other devices at the DC bus capacitor, it does not affect the transfer of data. Leave an 80mm minimum mounting clearance to facilitate adequate airflow and cooling. The DC capacitor weighs approximately 4.3kg. The HLC01.1C-02M4-A-007-NNNN should be mounted directly beside the drive controller if it has the highest DC continuous power. Distance bolts are provided to compensate for the difference between the DC capacitor and drive controller mounting depth. They should be mounted on the bright side of the control cabinet.
The HLC01.1C-02M4-A-007-NNNN features a 700V DC bus nominal voltage, an IP 20 protection category, and 300mm mounting depth. This DC capacitor is intended for application with less than 30 cycles per minute since applications with higher cycle time can cause damage to the controller. You can use it for industrial applications that need certain energy after mains supply failure. The capacitors hold high voltage after switching the power off. Wait 30 minutes before touching any part to avoid electrocution. It comes with a one year warranty.
Frequently Asked Questions about HLC01.1C-02M4-A-007-NNNN:
Q: What is the HLC01.1C-02M4-A-007-NNNN designed for?
A: The HLC01.1C-02M4-A-007-NNNN is a capacitor unit designed to increate the storage energy in the DC bus. The capacitor protects the drive controller from damage that can be caused by sudden power supply faliure.
Q: What should the HLC01.1C-02M4-A-007-NNNN be mounted in the servo system?
A: The HLC01.1C-02M4-A-007-NNNN DC bus capacitor should always be mounted directly next to the drive controller with the highest DC bus continuous power. To compensate the different mount dept of a DC bus capacitor unit and the drive controller, special distance bolts should be used.
Q: What is the X1 module bus on the HLC01.1C-02M4-A-007-NNNN capacitor designed for?
A: The module bus on the HLC01.1C-02M4-A-007-NNNN is designed to function as an internal system connection which is used to exchange data between the devices. The module bus connection can be extended by means of accessory RKB001.
Q: What type of drive controller series is the HLC01.1C-02M4-A-007-NNNN designed for?
A: The HLC01.1C-02M4-A-007-NNNN DC bus capacitor can be used for drive controllers produced by Rexroth Indramat. However, operators should ensure the drive controller used with the capacitor meets the technical data of the capacitor.
Q: Does the HLC01.1C-02M4-A-007-NNNN require an additional air blower?
A: Under ideal oeprating conditions, the HLC01.1C-02M4-A-007-NNNN does not generate a lot of heat and its temparature can be effectively requlated by natural convection. However, if the capacitor is used in hot environment, an air blower can be installed with the capacitor to reduce the ambient temperature around it.
