Product Description:

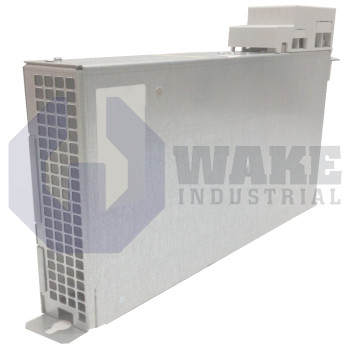

The HLC01.1C-01M0-A-007-NNNN is a capacitor module produced by Bosch Rexroth Indramat for the HLC Capacitor Modules series. It is designed to buffer energy on the common DC bus of drive systems, absorbing regeneration peaks and smoothing voltage variations that could otherwise trip inverters or shorten the service life of connected components. By supplying temporary power without moving parts, the unit supports industrial automation applications that need short-term energy storage rather than continuous power conversion.

The module’s electrical parameters show how it interfaces with drives. A DC bus nominal voltage of 700 V DC indicates the steady-state potential the internal capacitors are expected to sustain. The total capacitance is 1.0 mF, which provides stored energy during rapid load changes. At ambient temperatures up to 55 °C, the unit can handle up to 20 A of charging or discharging current without exceeding thermal limits. Internal losses are limited to 8.5 W when the module operates at 750 V DC. After the mains are removed, a wait of 30 min is required because residual voltage must decay through the built-in bleed resistors before the terminals are safe to touch. Cooling is done by natural convection, so cabinet airflow must remain unobstructed, and wiring to the bus bars must have at least a 10 mm² cross section.

The module has a mounting depth of 300 mm, while its overall width, depth, and height are 50 mm, 251.5 mm, and 352 mm. Its mass is 3.2 kg, which keeps handling manageable during installation. The housing has a rating of IP20, so it is intended for use inside an enclosure where accidental contact and foreign-object ingress are already controlled. During an emergency shutdown, the internal network discharges from 820 V to 50 V in no more than 228 s. Twisted bus leads can extend up to 2 m, which helps keep inductance low while allowing flexible routing inside the cabinet.
