Product Description:

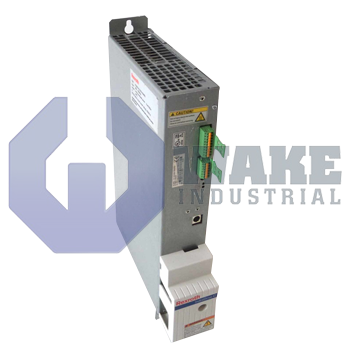

The HLB01.1C-01K0-N06R0-A-007-NNNN is a resistor brake unit produced by Bosch Rexroth Indramat for the HLB Resistor Brake Units series. Installed on the common DC bus of servo inverters, it diverts regenerative energy into its integrated resistive load so the bus voltage stays within safe limits during overhauling moves or emergency stops. In automated lines, this function prevents overvoltage trips and lets axes decelerate at commanded rates without relying on mechanical brakes alone. When several axes share the same DC link, the unit helps stabilize the electrical system during rapid stopping or load-driven motion.

The module can continuously dissipate 1 kW of braking energy and survive short peaks up to 100 kW, giving machines a wide margin between steady-state and transient duty. It is designed for a nominal bus of 700 V and engages only when the bus exceeds a switch-on threshold of 820 V, so normal motoring operation is unaffected. A nominal resistance of 6 ohms sets the current that flows once the transistor closes, and the braking logic is powered by a separate control supply of 24 V ±20%. These electrical limits are coordinated with an inrush current of 3 A lasting 50 ms, which reduces the chance of nuisance trips on the cabinet power rail while still charging internal capacitors quickly.

During repeated stops, the unit can absorb an energy load of 100 kWs before thermal equilibrium is reached, and enclosure ventilation is aided by a rated power dissipation of 28 W along with a standby consumption of 14 W. The housing carries an IP20 rating, so it must be mounted inside a closed panel but offers finger-safe protection once wired. Mechanical integration is supported by a footprint of 65 mm in width, 251.5 mm in depth, and 352 mm in height, while the installation weight is only 5.620 kg. That size allows direct DIN-rail or back-panel mounting without heavy support brackets and helps the unit fit beside other cabinet components.
