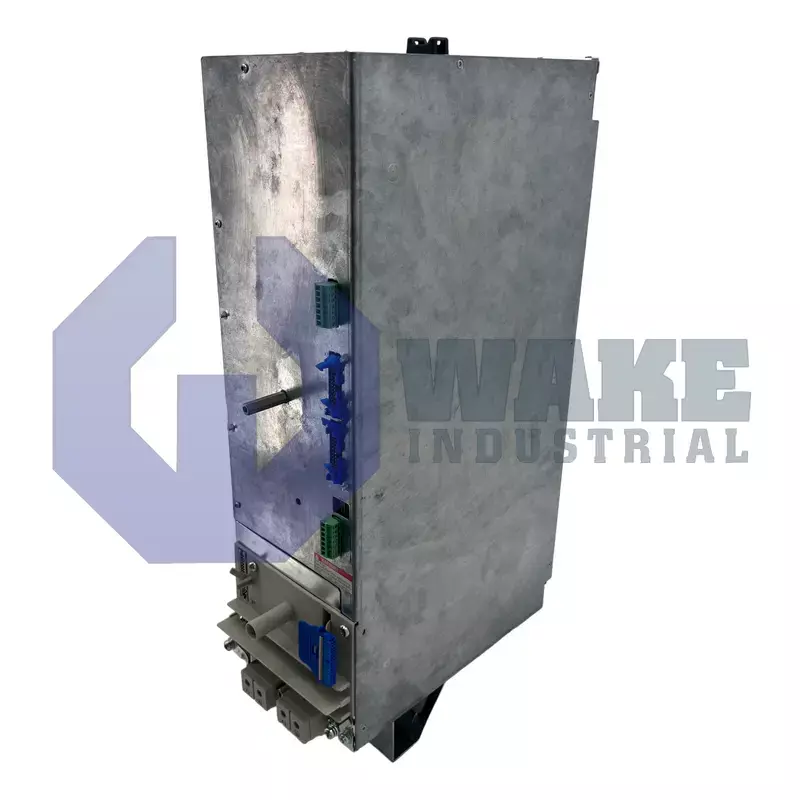

The HDS14.2-W200N Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 300A. This HDS controller is not equipped with Command Communication and the Controller Family is DIAX04.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

HDS14.2-W200N

  • Rated 4.3 (6 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships Fast
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options
The HDS14.2-W200N Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 300A. This HDS controller is not equipped with Command Communication and the Controller Family is DIAX04.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a HDS14.2-W200N to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch Rexroth designs automation equipment for industrial motion control applications. The company’s drive controllers are known for their high responsiveness.

The HDS14.2-W200N is a servo drive platform that operates in combination with 1MB, MKD, and MHD servo motors. The system forms a highly responsive drive system that gives complete control over the motor’s position, speed, and torque. Industries that frequently use this system include the metal machining industry, woodworking industry, textile industry, automotive industry, and paper printing industry. The device is meant to be operated in areas that have temperatures between 5 ᵒC to 45 ᵒC. A greater temperature range is allowed for storage and transportation of the system (-30 ᵒC to 85 ᵒC). The drive is lightweight that makes installation easy and simple. The HDS14.2-W200N supports connection with HVR and HVI modules. In addition, the system is compatible with HZF that is a power connection module. The HZF powers the drive when high-performance applications are needed.

The HDS14.2-W200N supports various additional plug-in modules that extend the system's performance. The drive controller can exchange data with a PLC device because of I/O plug-in cards. The single turn GDS 1.1 measuring systems can also be integrated with this device because of the DFF01.1M card. The drive controller's operating system is installed in the firmware module. Users can install regular software upgrades that are available from time to time. An absolute encoder emulator is also supported by the system. The encoder supports the generation of actual position values corresponding to the synchronous serial interface. The drive’s firmware module is supported by all HDS14.2-W200N units. The software module from one unit can be used in all other HDS14.2-W200N units. The HDS14.2-W200N can be shipped to any address globally with a one-year warranty period from Wake Industrial.

HDS14.2-W200N Documents

  • HDS142W200N
  • HDS14 2 W200N
  • hds14.2-w200n

HDS14.2-W200N Technical Specifications

Command Communication: Not Equipped
Storage and transport temparature : -30 to +850C
Rated current: 200A
Cooling mode : Internal air blower
Weight: 19kg
Continuous current(4kHz/8kHz): 120/80A
Power loss with continuous current: 800W
Power consumption for signal processing: 30W
Protection class: IP10 according to DIN 40 050
Insulation classification: C as per DIN VDE 0110

Frequently Asked Questions about HDS14.2-W200N


Q: How can operators maintain the limits of electrical interference when using the HDS14.2-W200N?

A: To maintain the limit of electrical interference during the operation of the HDS14.2-W200N, operators should ensure shield attachement is used at the controller, also a suitable interference suppression filter should be used in the mains supply line of the controller. The motor power cable should also be shielded.

Q: How many motor feedback connector is on the HDS14.2-W200N controller?

A: The HDS14.2-W200N is designed with only one motor feedback connector which is the X4 motor feedback connector. An HSF or RSF Rexroth Indramat motor feedback is connected to the controller through this connector. If any other type of motor encoder is connected, then it is necesary to use an additional plug-in module.

Q: What is the flat ribbon bus connection on the HDS14.2-W200N designed to do?

A: The control electronics of the HDS14.2-W200N receive power through the X1 connector which is a flet ribbon cable. The maximum length of the cable is about 1 meter.

Q: What is the analog diagnostic output on the X3 connector used for?

A: Analog diagnostic outputs in the X3 connector of the HDS14.2-W200N controller are outputs over which drive internal variable can be generated for text purpose. It has a current load capacity of 4mA and an output voltage of +/10V

Q: What is the proper way to route the supply lines of the HDS14.2-W200N?

A: While routing the supply lines of the HDS14.2-W200N controller, operators should observe a distance of at least 100mm between power and control or signals cables. Also the control or signal cables should not be routed near high frequency units, magnetic fields, or high voltage supply lines.

Internal Product Review

  • ‘‘Purchasing this product is the best business decision I made this year. It totally solved all my automation problems.’’
