The Bosch Rexroth Indramat HDS13.2-W100N is an HDS Drive Controller with a rated current of 100 Amps and a built-in internal air blower for cooling. As part of the HDS Drive Controllers series, it has a protection category of IP10 and operates in ambient temperatures between 5 and 45 degrees Celsius. The controller features insulation classification C according to DIN VDE 0110 and can be installed up to 1000 meters above sea level.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

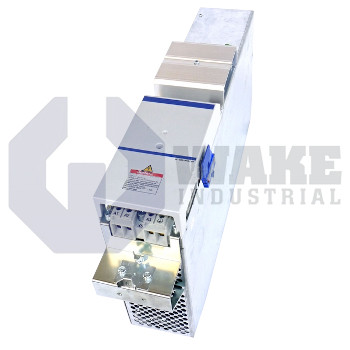

The HDS13.2-W100N is a drive controller produced by Bosch Rexroth Indramat as part of the HDS Drive Controllers series. In a modular Indramat drive rack, it acts as the regulation stage for servo axes by converting available DC bus energy into controlled motor current. The unit executes velocity, torque, and positioning commands from a higher-level CNC or PLC so connected motors can follow commanded motion profiles. This role lets the controller manage acceleration, steady-state speed, and commanded position changes within the drive system. Its modular format also supports integration with compatible power supply modules, which helps keep cabinet layouts organized in multi-axis systems.
Thermal management is handled by a built-in air blower, which moves cabinet air across the heat-dissipating surfaces of the drive. The power stage is rated for a continuous output of 100 A, allowing the controller to support high-torque motor operation under normal load conditions. The controller is rated for ambient temperatures from +5 to +45 °C during operation. Its enclosure has an IP10 protection rating under DIN 40 050, which provides protection against accidental finger contact while still permitting airflow. Installation altitude is limited to 1000 m above sea level.
When cabinet temperature rises above the normal operating range, the unit can continue operating up to +55 °C if the output current is reduced. It withstands storage temperatures from -30 to +85 °C, which allows the drive to remain in unpowered storage through wide seasonal temperature changes. The storage range helps protect electrical materials when the equipment is kept offline for extended periods. The windings and internal wiring use insulation class C according to DIN VDE 0110. This insulation level supports the thermal demands of the power section during industrial duty. The product is Version 2.
Frequently Asked Questions about HDS13.2-W100N:
Q: What cooling method does the HDS13.2-W100N use?
A: The HDS13.2-W100N drive controller features a built-in internal air blower for cooling.
Q: What is the rated current of the HDS13.2-W100N drive controller?
A: It offers a rated current output of 100 A, supporting high-power applications.
Q: What is the maximum installation elevation for HDS13.2-W100N?
A: This controller is designed for installations up to 1000 meters above sea level.
Q: What is the permitted operating temperature range for HDS13.2-W100N?
A: The permissible ambient temperature range for operation is between +5°C and +45°C.
Q: What insulation class does the HDS13.2-W100N drive controller use?
A: HDS13.2-W100N has an insulation classification of C according to DIN VDE 0110.
