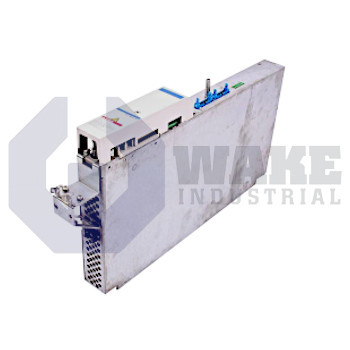

HDS12.2-W040N Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911283208
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
15 Seconds
The Bosch Rexroth Indramat HDS12.2-W040N is part of the HDS Drive Controllers series and uses a built-in internal air blower for cooling. This drive controller offers a rated current of 40 Amps and is designed for installations up to 1000 meters above sea level. It features insulation classification C according to DIN VDE 0110 and an IP10 protection category.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDS12.2-W040N is a drive controller produced by Bosch Rexroth Indramat within the HDS Drive Controllers series. In an automated plant, it supplies regulated power to servo axes, coordinates motion profiles, and exchanges status data with higher-level controls so that motors track commanded speed and torque setpoints. The unit is intended for panel installation and relies on forced air circulation through its chassis, which suits enclosed electrical cabinets used in machining cells, material handling lines, and packaging equipment. This layout helps the controller operate as part of a compact multi-axis drive system without requiring separate external cooling hardware.
The controller draws and conditions motor phase power up to 40 A, while a built-in air blower moves cooling air across heat-generating components to maintain thermal balance. Its enclosure meets the IP 10 classification, which provides protection against accidental contact with live parts but requires installation in a clean area away from liquid spray. Reliable operation is permitted at ambient temperatures from +5 to +45 °C. Above this range, the output must be derated, and continuous service is still permitted until the housing temperature reaches +55 °C. These limits should be considered when cabinet airflow and drive loading are planned for continuous operation.
Installation altitude should not exceed 1000 m because reduced air density at higher elevations lowers cooling effectiveness and increases thermal stress on internal components. During storage or transport, the unit can tolerate temperatures from -30 to +85 °C, which supports handling through unconditioned shipping and warehouse environments. The power stage uses materials rated for the C insulation class, allowing the drive to withstand elevated internal temperatures during demanding duty cycles. The unit is identified as Version 2. This version marking distinguishes the product revision used for this controller.
Frequently Asked Questions about HDS12.2-W040N:
Q: What is the rated current for the HDS12.2-W040N drive controller?
A: The HDS12.2-W040N supports a rated current of 40 A for its operational cycle.
Q: What type of cooling does the HDS12.2-W040N use?
A: The cooling method utilized by this drive controller is a built-in internal air blower.
Q: What is the insulation classification of the HDS12.2-W040N?
A: This model is classified under insulation class C according to DIN VDE 0110.
Q: What is the maximum installation elevation for the HDS12.2-W040N?
A: The HDS12.2-W040N can be installed at elevations up to 1000 meters above sea level.
Q: What ambient temperature range is suitable for operating the HDS12.2-W040N?
A: The permissible ambient temperature range for operation is +5°C to +45°C.
