HDS05.2-W300N-HS60-01-FW
MPN: R911289784
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days

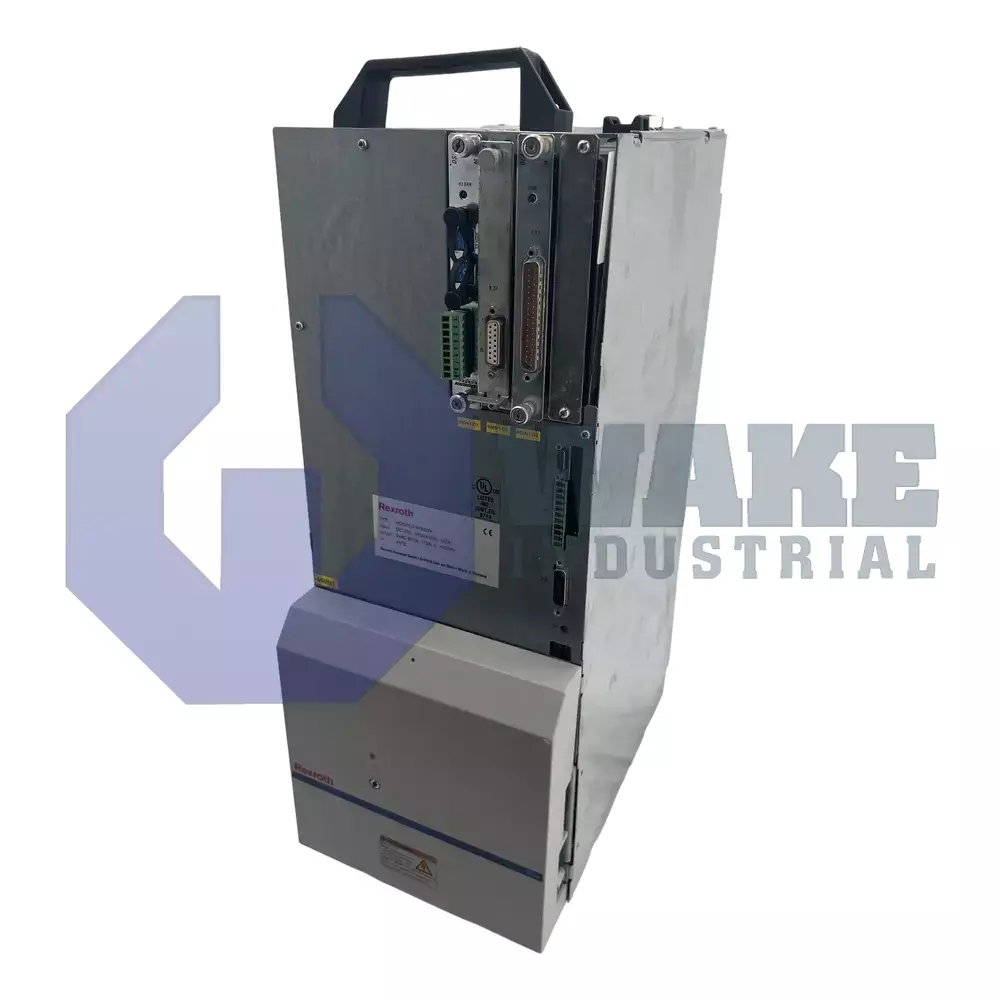

The HDS05.2-W300N-HS60-01-FW is a high-performance drive controller with a nominal current output of up to 300 A. Manufactured by Bosch Rexroth Indramat as part of their HDS Drive Controllers series, it features analog and digital interfaces with SERCOS capability. Weighing approximately 28 kg, it operates at 50/60 Hz.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDS05.2-W300N-HS60-01-FW is a high-capacity drive controller. It belongs to the HDS Controllers series. The unit ensures consistent performance across dynamic industrial environments. It features robust electrical and mechanical specifications.
The HDS05.2-W300N-HS60-01-FW is manufactured by Bosch. It is designed for use with Pollution Degree 2. Under decreased load, the device operates safely up to 55°C and nominal 45°C. A rated input voltage of 530 V to 670 V DC is supported. It can handle up to 140 A of input current. With a maximum output voltage of 500 V the output can reach up to 175 A. It was designed for three-phase output by Bosch Rexroth Indramat. Frequencies up to 1000 Hz are supported. With a 1200 W power dissipation at full load, it is appropriate for systems with heavy demands. Copper class 1 wiring with a 60/75°C rating is used. 55 W is consumed by the control voltage input which is 26 V ±2%. Fault prevention is ensured by the 42,000 A rms short circuit current rating. The device dimensions measures 498 mm in height, 308 mm in depth and 200 mm in breadth. The drive controller weighs 25 kg. If stacked, it can be mounted both horizontally and vertically while using baffles. It is necessary to properly ground using a bracket and back panel.
In harsh environments, Bosch Indramat guarantees the HDS05.2-W300N-HS60-01-FW's dependability. It has interface connectors such as X5 for the motor and DC bus, X6 for temperature and brake monitoring, XS1 for the motor shield and X1 for the supply ribbon cable. Thermal stability and effective current handling are maintained by the controller. Flexible mounting in control cabinets is made possible by the small size of the structure.
Frequently Asked Questions about HDS05.2-W300N-HS60-01-FW:
Q: How does the 42,000 A SCCR improve system reliability in HDS05.2-W300N-HS60-01-FW?
A: It ensures safe operation during high fault currents. This rating allows the controller to be used in high-capacity distribution systems.
Q: How does the built-in blower cooling system support performance in HDS05.2-W300N-HS60-01-FW?
A: The internal air cooling prevents heat buildup during high current operation. It maintains consistent internal temperatures without external cooling systems.
Q: Why is the holding brake interface integrated into connector X6?
A: It simplifies wiring for safety-critical applications. Brake control through X6 allows coordinated stopping in vertical or suspended load systems.
Q: Why is grounding at both the bracket and rear panel important for HDS05.2-W300N-HS60-01-FW?
A: Dual grounding reduces potential differences across the unit's body. This improves user safety and stabilizes the electrical system.
Q: Can the HDS05.2-W300N-HS60-01-FW be integrated into modular control cabinets?
A: Yes, its compact form and predefined interface layout support modular cabinet design. It allows easy alignment and daisy-chaining with other Rexroth drives.
