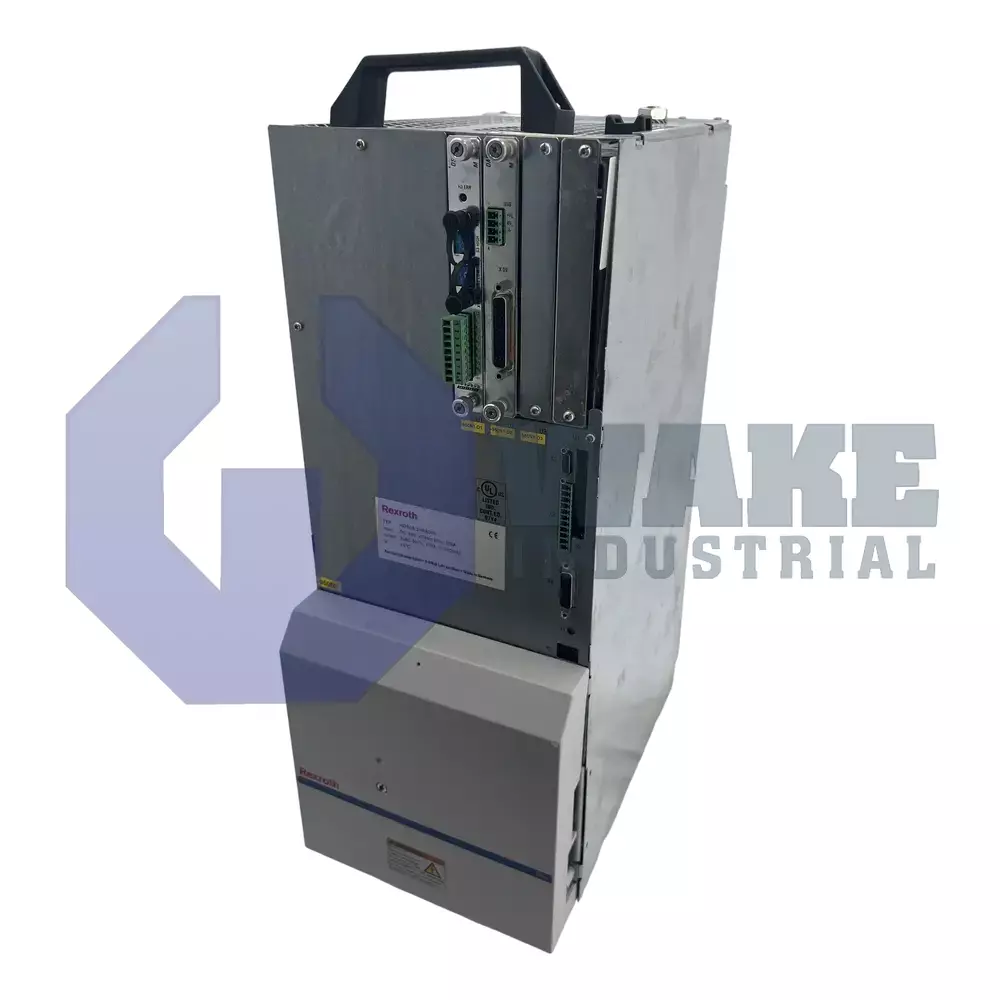

HDS05.2-W300N-HS45-01-FW
MPN: R911291916
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days
The HDS05.2-W300N-HS45-01-FW from Bosch Rexroth Indramat is part of the HDS Drive Controllers series and requires internal air cooling for operation. It delivers a rated continuous current of 300 A and operates at a DC voltage of 300 V. The controller supports analog and digital I/O and SERCOS interface options.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDS05.2-W300N-HS45-01-FW is an HDS Drive Controller. This product is built for high-performance automation systems. It operates with a rated current of 300 A. It is designed and manufactured by Bosch Rexroth Indramat.
The BoschHDS05.2-W300N-HS45-01-FW has an integrated blower for internal air conditioning. It is firmware-based and provides command communication via SERCOS. The product is a component of Drive Controllers, Line 5 and Version 2. The dimensions of the unit are 200 mm in width, 308 mm in depth and 498 mm in height. There must be 100 mm of room at the bottom and 300 mm at the top. It belongs to the HDS Drive Controllers family. The controller has UL file number E134201 and is certified by CSA C22.2 No. 14-05 and UL 508 C. At nominal data, the maximum ambient temperature is 45°C. It can reach up to 55°C with lower nominal data. 530 to 670 V is the range of the rated input voltage. 140 A is the maximum input current. The unit can produce up to 500 V when connected in three phases. Without brakes, the control portion uses 55 W of power. The item has a weight of 25 kg. Both the front bracket and the rear wall need to be grounded. Class 1 copper wire at 60/75°C must be utilized. DC bus requires 3 Nm and motor terminal tightening torque is 6 Nm. Motor connectors have a cross-section of 16 to 50 mm². The XS1 mount, which may be arranged either vertically or horizontally, is used to secure the motor cable shield. Included are connector interfaces X3, X5, and X6. A mounting plate and hose clamps are also included with the unit. With a maximum current of 2 A, X6 can monitor temperature and brakes.
The HDS05.2-W300N-HS45-01-FW ensures stable performance in demanding systems. The output current has a 175 A rating. 1000 Hz is the maximum frequency output. The device is rated for 42,000 A of short circuit current. 1200 W of power is continuously dissipated. 26 V ±2% is the input control voltage. The Bosch delivers high reliability with robust electrical ratings. The controller provides efficient control for industrial automation.
Frequently Asked Questions about HDS05.2-W300N-HS45-01-FW:
Q: What is the purpose of the dual grounding points in HDS05.2-W300N-HS45-01-FW?
A: The dual grounding ensures fault current discharge and user safety. It improves electromagnetic compatibility and prevents voltage surges.
Q: How does the XS1 shield attachment enhance motor cable performance?
A: XS1 ensures full shield continuity to reduce electrical noise. It also helps prevent signal interference in the drive controller system.
Q: Why does HDS05.2-W300N-HS45-01-FW require copper wire with 60/75°C rating?
A: This ensures safe thermal handling under high current flow. It also maintains compliance with industrial installation standards.
Q: How does internal air cooling in HDS05.2-W300N-HS45-01-FW impact cabinet design?
A: The built-in blower reduces external cooling dependency. This allows compact cabinet layouts with controlled airflow management.
Q: Why is a brake current limit of 2 A enforced in HDS05.2-W300N-HS45-01-FW?
A: It protects internal circuits from overheating and overcurrent damage. Higher brake currents must be controlled through external devices.
