Product Description:

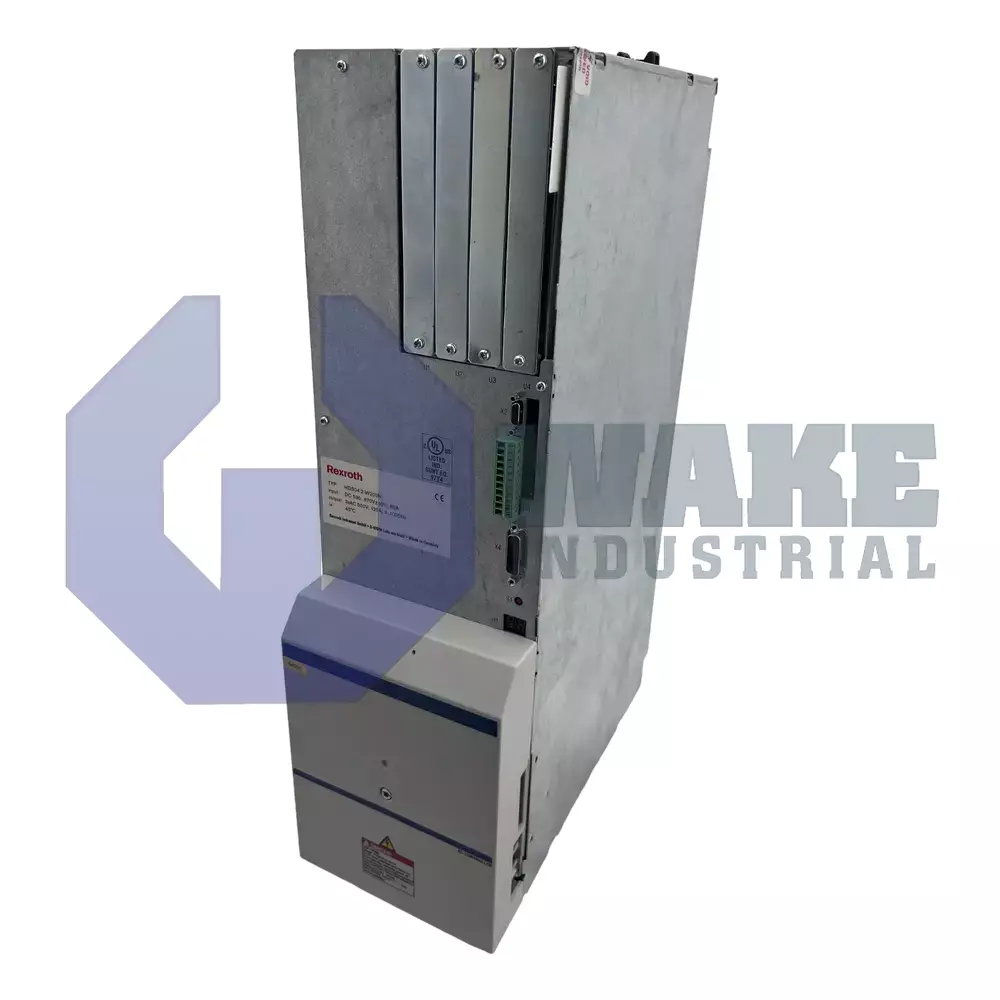

The HDS04.2-W200N-H is a drive controller produced by Bosch Rexroth Indramat within the HDS Drive Controllers series. As part of the DIAX04 multi-axis platform, it conditions and switches power for coordinated motion tasks in automated machinery. Its design allows installation in electrical cabinets where precise speed and torque regulation must be delivered to three-phase motors. By receiving low-level control commands and converting them into high-current, high-frequency outputs, the unit serves as the central actuator interface for industrial automation lines.

Thermal management is handled by a built-in internal air blower, so no external ducting is required. The housing depth of 308 mm and height of 498 mm allow stacking with adjacent modules while staying within standard cabinet frames. With a mass of 19 kg, the unit is intended for cabinet installation and is specified for operation up to 1000 m above sea level without derating. During operation, it may draw up to 60 A rms from the supply, a figure used for breaker sizing and cable selection. Control electronics are energized by a separate 26 VDC feed, and the permissible ambient range extends from +5 °C to 45 °C at nominal data.

For the motor side, the converter can switch output frequencies up to 1000 Hz, enabling high-speed spindle or linear motor applications. Line-to-line voltage is limited to 500 V, and the power stage can deliver a steady 200 A across three phases. The enclosure carries a protection rating of IP 10 per DIN 40 050, which is suitable for clean, closed cabinets, and its insulating materials meet class C limits according to DIN VDE 0110. Its short-circuit withstand rating of 42 kA supports use on industrial feeders with high prospective fault currents. Under reduced data conditions, the device may operate up to 55 °C provided that continuous dissipation of 800 W and forced airflow are maintained.
