HDS04.2-W200N Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911190230
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

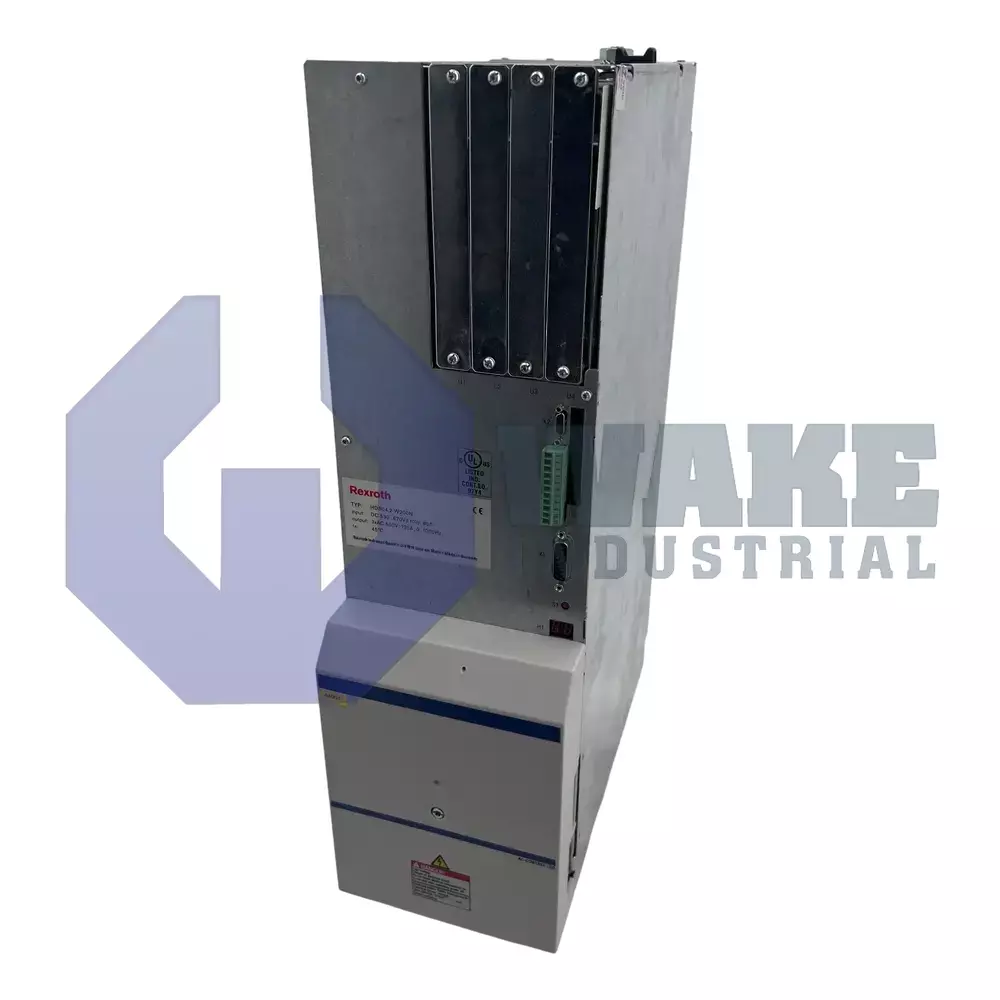

The Bosch Rexroth Indramat HDS04.2-W200N is a HDS Drive Controller with a rated current of 200 Amps and a max output current of 120 Amps. Part of the HDS Drive Controllers series, it has a built-in internal air blower cooling method and an IP10 protection category. The controller measures 498 mm in height, 150 mm in width, weighs 19 kg, and operates with a rated control voltage input of 26 VDC.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat’s HDS04.2-W200N drive controller belongs to the HDS Drive Controllers series and serves as the power interface between Indramat supply modules and servo motors in automated production lines. The designation places it in line 04 and identifies it as version 2, a configuration without alternate variants. Mechanical footprint is defined by a 150 mm width, 308 mm depth, and 498 mm height, dimensions that allow dense cabinet layouts. As an HDS Drive Controller, it coordinates torque, speed, and position loops delivered by upstream NC or PLC hardware.
At the electrical level, the unit handles a rated motor current of 200 A, while sustaining 120 A continuously when the switching frequency is held at 4 kHz. The same duty rating sets its absolute output ceiling at 120 A. Input conductors may draw up to 60 A from the supply, and the logic section is energized by 26 VDC that consumes only 30 W of control power. A short-circuit endurance of 42 000 A permits coordination with high-capacity branch circuits. For motor excitation it can deliver up to 500 V and modulate that voltage at carrier frequencies that translate into a maximum output frequency of 1000 Hz, enabling high-speed spindle or linear axis operation.
Thermal and environmental limits are managed by a built-in internal air blower that maintains airflow across the heatsink; at the higher 8 kHz switching rate the continuous current is 80 A. Total semiconductor and winding losses appear as 800 W of power dissipation at nominal output, a figure that also represents the stated power loss at I_cont. The housing carries a protection rating of IP10, weighs 19 kg, and may be installed up to 1 000 m above sea level. Reliable service is specified up to 45 °C without derating, with operation allowed to 55 °C when output is proportionally reduced.
Frequently Asked Questions about HDS04.2-W200N:
Q: What is the rated current of the HDS04.2-W200N drive controller?
A: The HDS04.2-W200N drive controller has a rated current of 200 A, allowing for substantial continuous operation.
Q: What cooling method is implemented in the HDS04.2-W200N drive controller?
A: A built-in internal air blower is used for cooling in the HDS04.2-W200N drive controller.
Q: What is the maximum output voltage for the HDS04.2-W200N model?
A: The maximum output voltage for the HDS04.2-W200N is 500 V, suitable for high-voltage applications.
Q: What is the maximum permissible ambient temperature for the HDS04.2-W200N drive controller?
A: The HDS04.2-W200N can be operated at a maximum ambient temperature of 45 °C without derating, and up to 55 °C with derating.
Q: What protection category is assigned to the HDS04.2-W200N drive controller?
A: This controller has a protection category of IP10, providing basic protection against solid objects but not against water.
