HDS03.2-W075N-HA02-01-FW
MPN: R911286132
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days

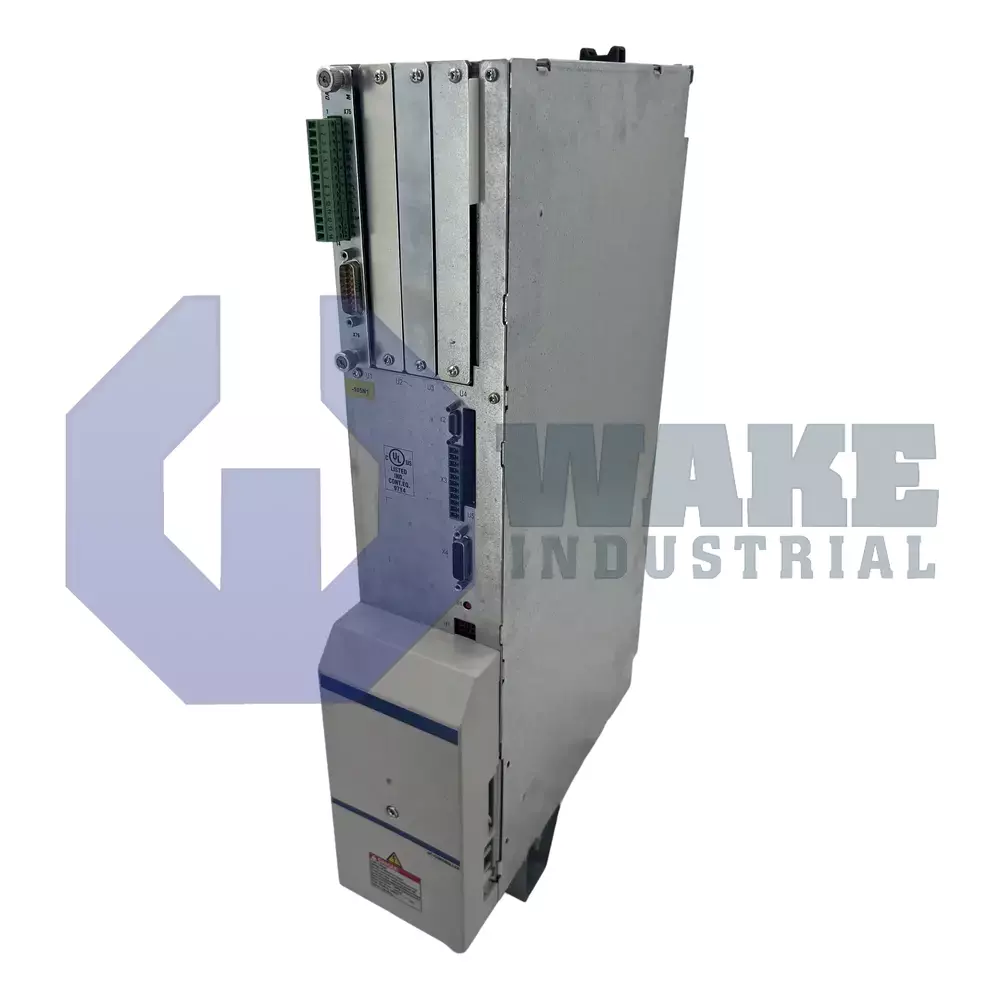

The HDS03.2-W075N-HA02-01-FW is a drive controller with a rated and peak current of 75A, and it features a built-in internal air blower for cooling. Manufactured by Bosch Rexroth Indramat as part of the HDS Drive Controllers series, it belongs to the DIAX04 controller family. It weighs 11 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDS03.2-W075N-HA02-01-FW Drive Controller features robust analog communication, delivers up to 500 volts and can handle a continuous load of 75 amperes. This Bosch designed model draws input current of 37 amperes maximum which makes it well suited for controlling mid to high voltage three phase equipment with precision and efficiency in demanding industrial automation applications.
The HDS03.2-W075N-HA02-01-FW controller is capable of delivering a peak electrical flow of 40 amperes to the connected motor or load during operation and it tips the scale at approximately 11 kilograms which makes it a lightweight device easy to adjust. It uses copper conductors rated for temperatures of 60 or 75 degrees Celsius and its wiring complies with Class 1 standards or suitable alternatives which ensures safe and stable connections and it is able to operate in surroundings as warm as 55 degrees Celsius. It is part of the DIAX04 controller family which indicates it shares common design principles and compatibility features with other models in the same series. It is designed to run correctly within a supply voltage window ranging from 530 volts to 670 volts and it can generate a variable frequency output of up to 1000 hertz, which is significant for controlling high speed motion control operations.
This HDS03.2-W075N-HA02-01-FW controller control section consumes a steady 25 watts of power during standard use and its control electronics expect a supply voltage of 26 volts, with a permissible fluctuation range of ±2 percent which ensures reliable circuit behavior. It is intended for environments with moderate contamination levels such aligning with a Pollution Degree 2 classification per IEC standards and it is designed to output power through a 3 phase configuration which makes it suitable for most industrial motors that require symmetrical AC waveforms.
Frequently Asked Questions about HDS03.2-W075N-HA02-01-FW:
Q: What is the advantage of the HDS03.2-W075N-HA02-01-FW drive supporting up to 1000 Hz output frequency?
A: It enables precise control of high-speed servo motors in applications like spindle drives or rapid positioning systems. This allows for finer resolution and faster dynamic response.
Q: Why is analog interface communication still relevant in drive controllers?
A: Analog interfaces provide simple, real-time command input for legacy systems or applications not requiring digital protocols. They're often preferred for quick signal adjustments without complex configuration.
Q: How does the 26V ±2% control voltage impact system reliability?
A: Stable voltage within the tolerance range ensures consistent logic-level operation and prevents control errors. Voltage deviations beyond limits can cause signal loss or internal faults.
Q: Can this controller be integrated into pollution-heavy environments?
A: No, it’s designed for moderate conditions equivalent to Pollution Degree 2. Excessive dust or conductive contaminants may require enclosure or filtering.
Q: Why must 60/75 °C rated copper wire be used for field connections?
A: These conductors ensure thermal safety and compliance with current-carrying capacity. Using lower-rated cables may cause insulation damage or fire hazards.
