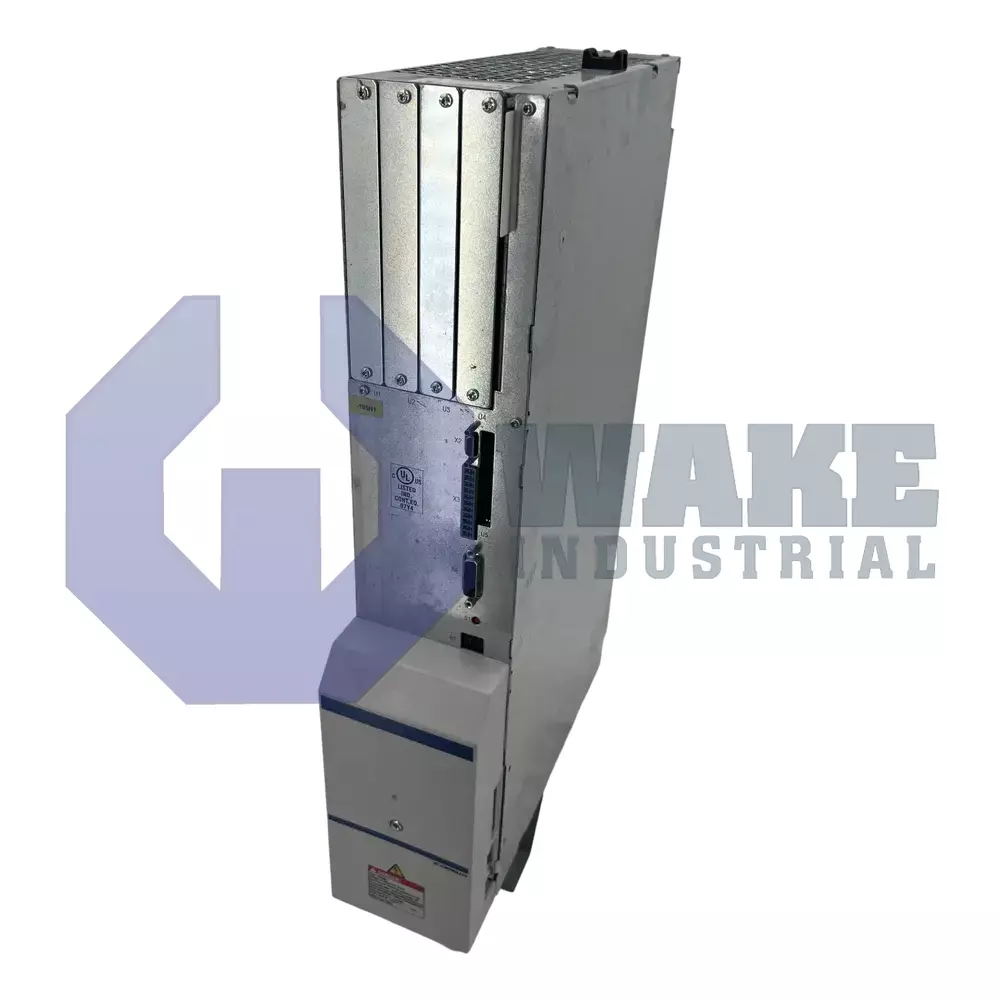

The Bosch Rexroth Indramat HDS03.2-W075N is a drive controller from the HDS Drive Controllers series with a peak current of 75 Amps and rated output voltage up to 500 Volts. It offers three output phases, features internal air blower cooling, and measures 498 mm in height, 100 mm in width, and 308 mm in depth. The unit has an IP10 protection category and weighs 11 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDS03.2-W075N is a drive controller manufactured by Bosch Rexroth Indramat for the HDS Drive Controllers series. Installed in a cabinet with matching power supplies, it converts the shared DC bus into regulated three-phase output for connected motors while processing encoder feedback for closed-loop control. In automated cells, it acts as the axis amplifier, executing velocity and torque commands so that assembly, cutting, or packaging equipment maintains repeatable motion profiles.
The controller delivers a continuous output of 40 A at a 4 kHz switching frequency, providing stable current to servo windings during sustained operation. A maximum output frequency of 1000 Hz allows the unit to address high-speed spindle or linear motors without saturation. Output voltage can reach 500 V, matching DC bus levels typical of 400 VAC supply systems. Internal logic and I/O circuits run from a nominal control voltage of 26 VDC, and protection against particulate ingress is classified as IP10. Thermal management is handled by a built-in air blower, so no external fan panel is required. Control electronics draw 25 W, and the encoder supply can source 150 mA for position sensors without overloading the low-voltage section.
During acceleration, the unit can source a peak current of 75 A, enabling short bursts of high torque. Continuous switching losses translate into 220 W of heat that the blower ejects from the 100 mm × 498 mm × 308 mm housing. The assembly weighs 11 kg, which supports stable panel mounting and helps damp vibration. Installation is permitted up to 1000 m elevation and 55 °C ambient with derating, while nominal operation remains at 45 °C. Field wiring is secured by 3 Nm DC-bus terminals and 2 Nm motor posts, while a D-Sub 15 feedback connector and four-pin screw power plug simplify connection layout. A short-circuit rating of 42 kA aligns the version 2 drive with common industrial feeder protection requirements.
Frequently Asked Questions about HDS03.2-W075N:
Q: What is the continuous current rating for the HDS03.2-W075N at 4 kHz?
A: The continuous current at 4 kHz for the HDS03.2-W075N is 40 A.
Q: What cooling method is used in the HDS03.2-W075N drive controller?
A: The HDS03.2-W075N uses a built-in internal air blower for cooling.
Q: What is the peak current rating of the HDS03.2-W075N?
A: The maximum peak current supported by this drive controller is 75 A.
Q: What is the protection rating of the HDS03.2-W075N drive controller?
A: The protection category for the HDS03.2-W075N is IP10.
Q: What is the maximum ambient temperature supported by the HDS03.2-W075N?
A: This model is designed to operate at ambient temperatures up to 45 °C nominal and 55 °C with reduced ratings.
