HDS03.1-W100N-HS23-01-FW
MPN: R911279916
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today

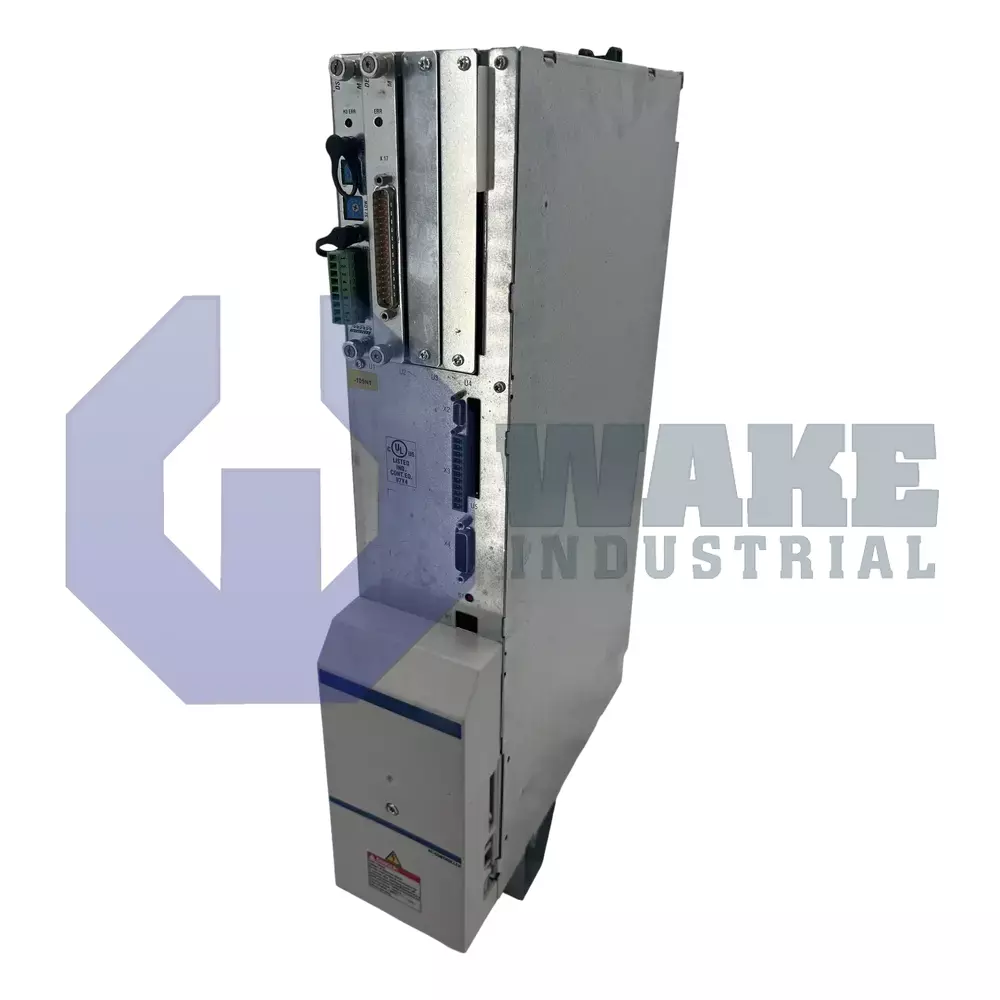

The Bosch Rexroth Indramat HDS03.1-W100N-HS23-01-FW is part of the HDS Drive Controllers series and features panel mounting. It supports SERCOS or analog interfaces and has a nominal current of 100 Amps. The unit weighs approximately 11 kilograms and employs internal cooling via a heat sink.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDS Drive Controller is a part of the HDS series. One of the DIAX04 controllers made by Rexroth Indramat is the HDS03.1-W100N-HS23-01-FW servo controller. During operation, the cooling method's built-in internal air blower ensures thermal stability.
The HDS03.1-W100N-HS23-01-FW servo controller can handle currents up to 100 A, both peak and rated. At 4 kHz, it provides a constant current of 50 A, while at 8 kHz, it delivers 35 A. Due to its SERCOS command communication interface, the controller can be simply incorporated into existing industrial automation systems. For signal processing, the controller draws 20 W from a 24V supply. The unit, which runs on line 03 and version 1 of the product group, has the function ID code 23. When operating at continuous current, the controller loses 280 W of power. Without any external cooling arrangements, the controller is designed to work with steady electrical loads. It features an inbuilt air fan for cooling and weighs a total of 11 kg. All of the system's modular parts are guaranteed to be compatible with the DIAX04 controller family. The construction and current ratings of the unit are engineered to offer consistent power regulation in an automated setting.
The HDS03.1-W100N-HS23-01-FW controller is available in different versions, you can choose the one as per your requirements. Its inbuilt air blower keeps it efficient, while SERCOS ensures a consistent interface. This controller is a member of the HDS family and is designed to be compatible with all drive control systems. Systems requiring synchronized drive coordination are compatible with this controller. Advanced control architectures can easily incorporate it. Reduced signal processing delays and simplified controller communication are two benefits of this controller.
Frequently Asked Questions about HDS03.1-W100N-HS23-01-FW:
Q: Why does HDS03.1-W100N-HS23-01-FW support 50 A at 4 kHz?
A: The 50 A continuous current at 4 kHz allows the controller to maintain higher output levels with increased efficiency. This ensures smooth operation during load peaks.
Q: Does HDS03.1-W100N-HS23-01-FW use SERCOS for communication?
A: Yes, the product uses SERCOS which supports real-time digital interface communication. This enhances integration accuracy with other control units and components.
Q: How does HDS03.1-W100N-HS23-01-FW handle internal cooling?
A: It uses a built-in internal air blower that maintains cooling without external fans. This improves thermal control during high-load operation.
Q: Why is function ID code 23 used in HDS03.1-W100N-HS23-01-FW?
A: Function ID code 23 identifies the controller’s specific operation configuration. It ensures compatibility with drive parameters and firmware protocols.
Q: Do other versions exist for HDS03.1-W100N-HS23-01-FW?
A: No, there are no other versions for this unit. This guarantees configuration consistency across all installations.
