HDS03.2-W075N-H3 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days

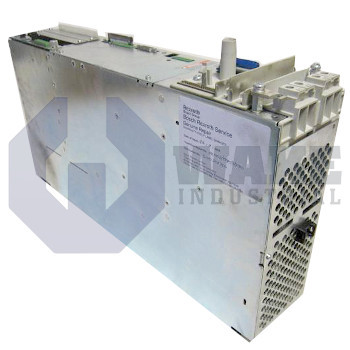

The Bosch Rexroth Indramat HDS03.2-W075N-H3 is an HDS Drive Controller from the HDS Drive Controllers series and belongs to the DIAX04 controller family. It features a built-in internal air blower for cooling and has a rated current of 75 Amps. This controller is part of version 2 of the 03 line.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDS03.2-W075N-H3 drive controller is built by Bosch Rexroth Indramat for the HDS Drive Controllers series. It functions as the axis-specific power stage inside DIAX04 multi-axis racks, converting DC-bus energy to regulated three-phase output for servo motors. Within automated cells it delivers precise current and velocity control so machine tools, packaging lines, and handling systems achieve their commanded positions and cycle times.
The unit supplies a continuous output of 75 A, giving ample headroom for medium-torque axes without thermal derating. Heat generated by the power electronics is cleared through a built-in internal air blower, removing dependence on external cabinet ventilation. Compatibility with the DIAX04 platform means common power distribution, parameter structures, and diagnostic routines across an installation. Hardware is identified as 03, a line revision that incorporates faster gate-drive circuitry, while firmware support is marked 2, enabling extended fault registers used for predictive maintenance.
As part of the HDS Drive Controllers series, the module occupies a single slot beside HVE supplies and HMS drives, sharing DC bus bars via rear connectors. The mechanical layout devised by Bosch Rexroth Indramat lets technicians exchange the controller from the front panel without disturbing adjacent wiring. With None listed under other versions, engineers can specify this exact configuration knowing no alternate cooling method, current rating, or interface option exists for the same code.
At Wake Industrial, same-day shipping is available for facilities requiring rapid replacement. Quotations for the HDS03.2-W075N-H3 remain valid for 30 days to aid procurement planning. Operators may use the free chat tool to ask general questions about fault codes, type codes, or specification details before ordering.
Frequently Asked Questions about HDS03.2-W075N-H3:
Q: What cooling method is used by the HDS03.2-W075N-H3 drive controller?
A: The HDS03.2-W075N-H3 is equipped with a built-in internal air blower for cooling.
Q: What is the rated current for the Bosch Rexroth Indramat HDS03.2-W075N-H3?
A: This drive controller features a rated current of 75 A, supporting high-power applications.
Q: Which controller family does the HDS03.2-W075N-H3 drive controller belong to?
A: The HDS03.2-W075N-H3 belongs to the DIAX04 controller family from Bosch Rexroth Indramat.
Q: What is the line designation of the Bosch Rexroth Indramat HDS03.2-W075N-H3?
A: The line designation for this model is 03, identifying its place within the HDS series.
Q: What version is the Bosch Rexroth Indramat HDS03.2-W075N-H3 drive controller?
A: This model is version 2 within its series lineup, providing specific hardware and feature configurations.
