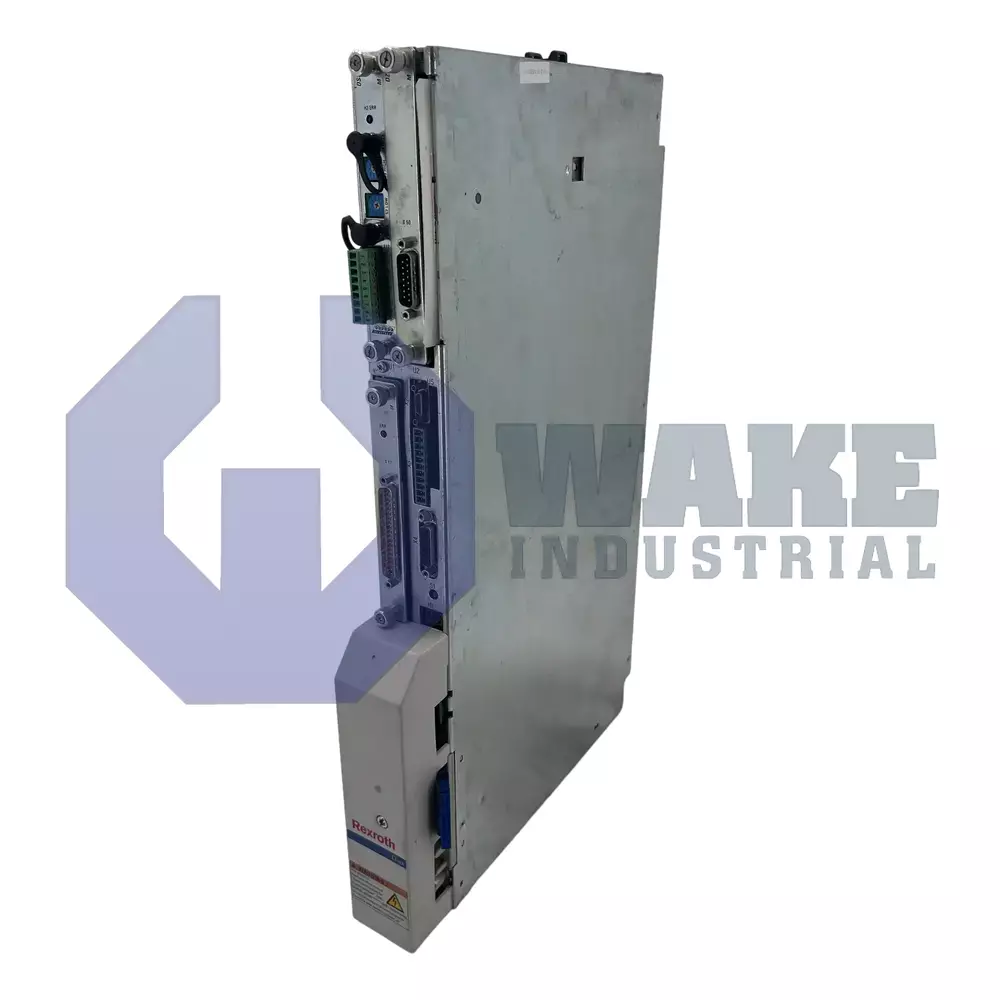

The Bosch Rexroth Indramat HDS02.2-W040N-HS80-01-FW is a drive controller from the HDS Drive Controllers series and is part of the DIAX04 controller family. It has a rated current of 40 Amps and uses a built-in internal air blower for cooling. The controller communicates over SERCOS, supports installation up to 1000 meters above sea level, and carries an IP10 protection category.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDS02.2-W040N-HS80-01-FW is a drive controller produced by Bosch Rexroth Indramat for the HDS Drive Controllers series. In multi-axis machinery such as packaging stations and metalworking lines, it regulates servo-axis current and velocity so connected motors can follow commanded motion profiles. The unit acts as the power and control section for a servo axis, translating system commands into controlled electrical output for the motor. It is classified as an HDS drive controller, and it belongs to Line 02 with Version 2 in this product range. The controller is intended for coordinated systems where several axes must respond in a stable and predictable way during continuous machine operation.
Communication with the master occurs through the SERCOS optical ring, allowing deterministic motion updates over fiber without discrete wiring. The power stage delivers a continuous 40 A to connected motors, while short peak demand is managed by the control electronics. Heat is removed by a built-in air blower, so the surrounding cabinet does not need external ducting for the drive itself. The enclosure is rated IP10, which guards against finger-sized contact but does not protect against liquids, so the unit is intended for installation inside a protected cabinet. Normal operation is supported within +5 to +45 °C, and the storage and transport range extends from -30 °C to +85 °C for handling when the unit is not in service.
The controller can be installed at elevations up to 1000 m above sea level before altitude derating is required. Internal conductors use insulation category Class C in accordance with DIN VDE 0110, which provides higher thermal endurance than lower insulation classes. Intermittent operation at ambient temperatures up to +55 °C is permitted when the load is reduced appropriately. As part of the DIAX04 family, the unit uses the platform's common mechanical format and control architecture, which supports integration into established multi-axis layouts. This arrangement helps keep axis control consistent across machines that use the same drive platform.
Frequently Asked Questions about HDS02.2-W040N-HS80-01-FW:
Q: What type of command communication interface does the HDS02.2-W040N-HS80-01-FW use?
A: This model uses SERCOS as its command communication interface.
Q: How is the HDS02.2-W040N-HS80-01-FW drive controller cooled?
A: The HDS02.2-W040N-HS80-01-FW features a built-in internal air blower for cooling.
Q: What is the rated current of the HDS02.2-W040N-HS80-01-FW?
A: The rated current for this drive controller is 40 A.
Q: What insulation class does the HDS02.2-W040N-HS80-01-FW meet?
A: This HDS drive controller has an insulation classification of C as per DIN VDE 0110.
Q: What is the operating ambient temperature range for the HDS02.2-W040N-HS80-01-FW?
A: The permissible ambient temperature range for operation is +5 to +45°C.
