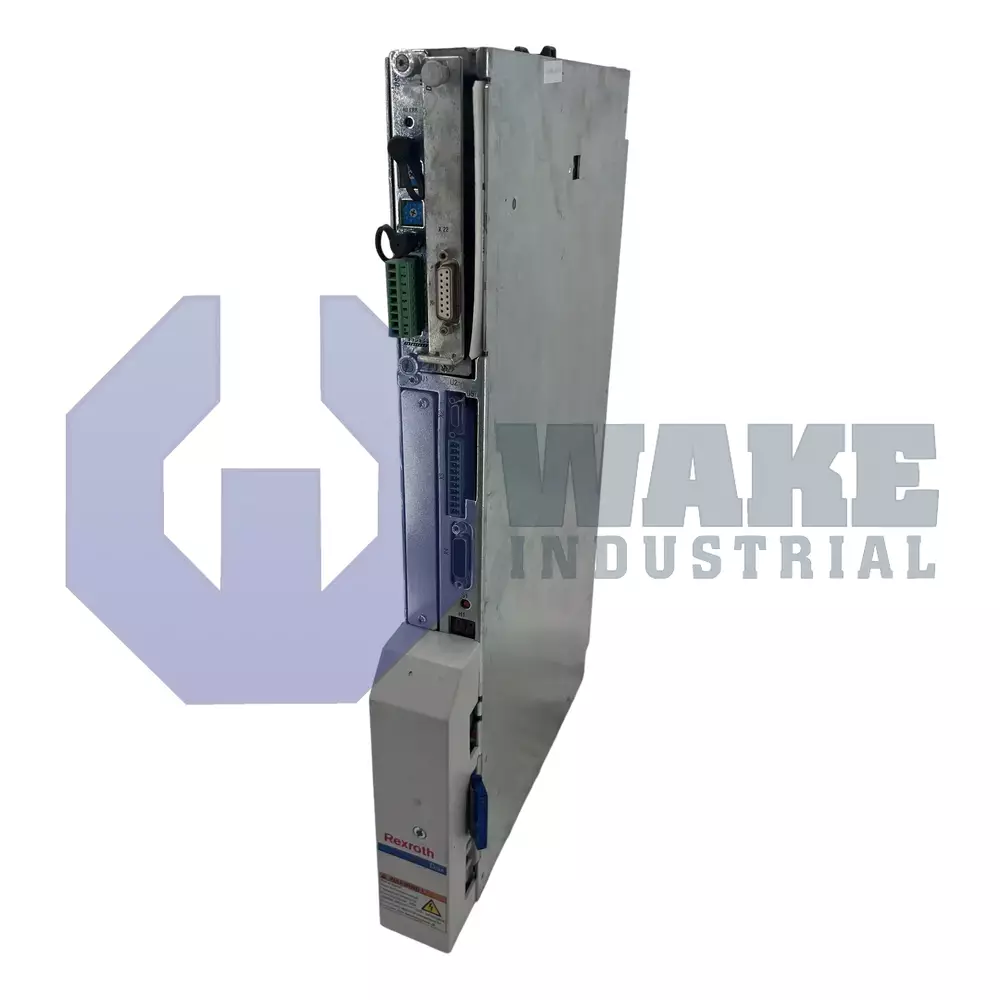

The Bosch Rexroth Indramat HDS02.2-W040N-HS76-01-FW is part of the HDS Drive Controllers series and belongs to the DIAX04 controller family. This drive controller has a rated current of 40 Amps, uses a built-in internal air blower for cooling, and features a SERCOS command communication interface. It carries an insulation classification C as per DIN VDE 0110 and is designed for installations up to 1000 meters above sea level.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDS02.2-W040N-HS76-01-FW drive controller is produced by Bosch Rexroth Indramat and belongs to the HDS Drive Controllers series. In industrial automation, this device governs servo power stages so that axes follow commanded motion profiles with consistent accuracy. It is supplied in line 02 and hardware version 2 for use in multi-axis systems. By converting digital setpoints into controlled three-phase outputs, it links higher-level motion processors to the attached motor windings and supports coordinated positioning, speed control, and repeatable axis response during machine operation. It is intended for industrial servo applications where stable current control and predictable axis behavior are required over repeated cycles.
The controller uses the DIAX04 platform and exchanges real-time setpoints and feedback over a SERCOS fiber-optic link, allowing synchronous motion among multiple drives. Because commands and feedback are transferred in real time, companion axes can remain coordinated during interpolation, indexing, and other linked moves. Thermal management relies on a built-in air blower that channels cabinet air across heat sink surfaces and supports the full 40 A rated output current within an ambient temperature range of +5 to +45 °C. The insulation class is C according to DIN VDE 0110, and the controller also uses overcurrent and overtemperature protection for controlled shutdown with upstream supply modules.
The housing has an IP 10 protection category, so the unit must be installed inside an electrical enclosure rather than exposed directly on the machine. Reliable operation is maintained up to 1000 m installation altitude, and above this height the permissible surrounding temperature drops from the short-term limit of +55 °C. During storage or shipping, the electronics withstand temperatures from -30 to +85 °C. These limits should be observed when the controller is stored, transported, or mounted in cabinets that contain other heat-generating drive components. This helps preserve electrical performance before the controller is powered.
Frequently Asked Questions about HDS02.2-W040N-HS76-01-FW:
Q: What command communication interface is available on the HDS02.2-W040N-HS76-01-FW?
A: The HDS02.2-W040N-HS76-01-FW supports SERCOS for its command communication interface, enabling digital drive control in automation systems.
Q: How is the HDS02.2-W040N-HS76-01-FW cooled during operation?
A: This drive controller is designed with a built-in internal air blower for cooling, ensuring stable operation during use.
Q: What is the rated current for the HDS02.2-W040N-HS76-01-FW drive controller?
A: The rated current for the HDS02.2-W040N-HS76-01-FW is 40 A, suitable for demanding industrial applications.
Q: What ambient temperature range can the HDS02.2-W040N-HS76-01-FW operate within?
A: This device maintains full performance in ambient temperatures ranging from +5°C to +45°C, with de-rating up to a maximum of +55°C.
Q: What is the insulation classification for the HDS02.2-W040N-HS76-01-FW?
A: The HDS02.2-W040N-HS76-01-FW has an insulation classification of C according to DIN VDE 0110, indicating its insulation endurance level.
