Product Description:

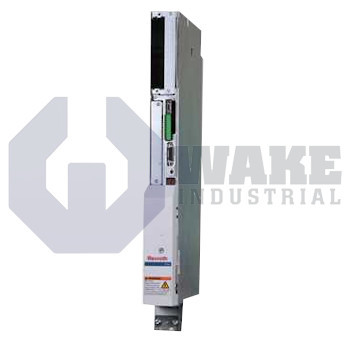

The HDS02.2-W040N-HS66-01-FW is a modular drive controller from Bosch Rexroth Indramat in the HDS Drive Controllers series. Assigned to the DIAX04 multi-axis platform, it fits into a common power-supply backplane and regulates a single servo axis within a larger motion system. By translating digital setpoints into controlled armature currents, the unit supports synchronized speed, torque, and position control in automated assembly lines and material-handling equipment. This layout lets the controller work as one axis in a coordinated machine without requiring a separate standalone enclosure for each motor channel.

Command data reach the controller through the SERCOS fiber-optic ring, allowing deterministic cyclic updates from higher-level controls. The drive supplies up to 40 A of continuous output current, so the matching motor channel can support medium-power axes without external amplifiers. Heat generated by switching devices is expelled by a built-in air blower, which supports airflow through the housing at standard loads. The enclosure has an IP10 rating, which protects against solid objects larger than 50 mm while leaving the airflow path open. Reliable operation is permitted in ambient temperatures from +5 to +45 °C, and performance derating begins above 1000 m of installation altitude.

Windings and internal wiring use insulation class C under DIN VDE 0110, permitting elevated hot-spot temperatures without dielectric failure. When cabinet air approaches +55 °C, the controller requires current reduction rather than abrupt shutdown. During storage and transport, the electronics tolerate temperatures from -30 to +85 °C in sealed packaging, which helps limit condensation-related damage across typical shipping conditions. The unit is part of Line 02 and Version 2 within the product range.
