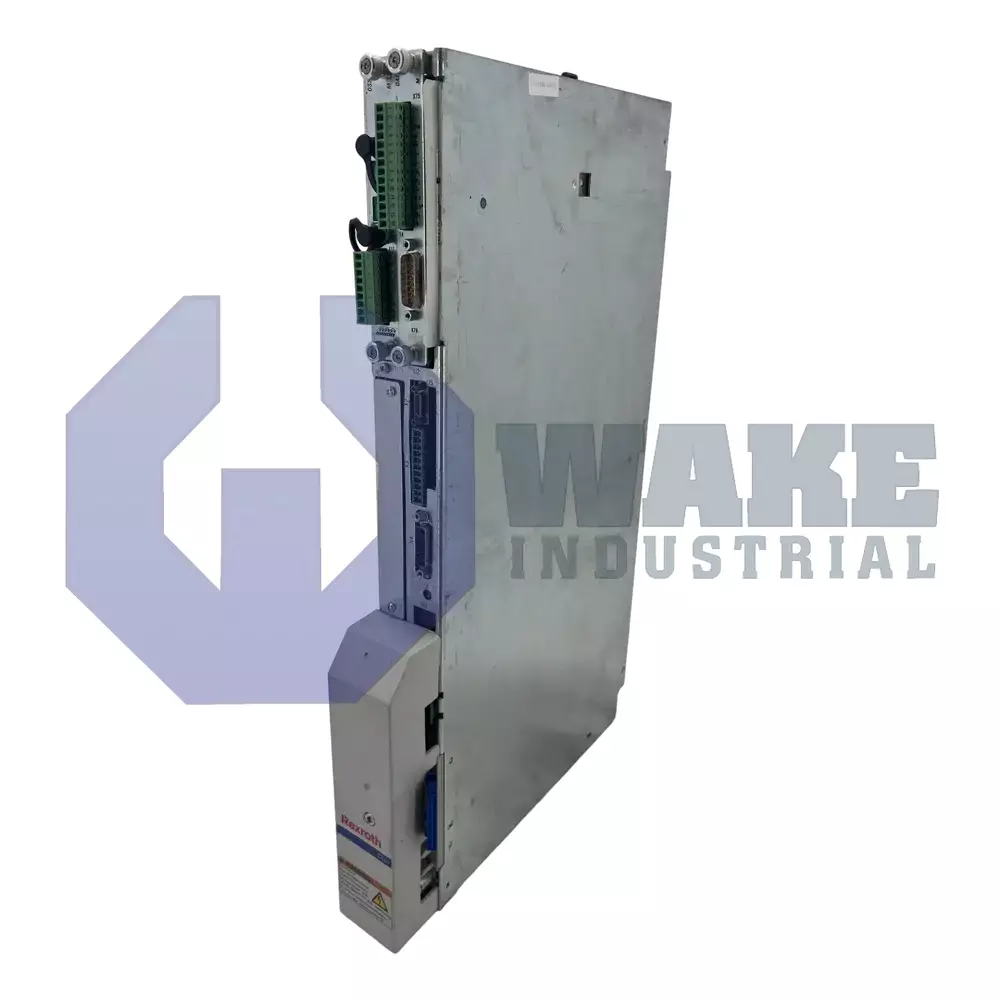

HDS02.2-W040N-HS56-01-FW Bosch Rexroth Indramat 40 Amp SERCOS Drive Controller
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
The Bosch Rexroth Indramat HDS02.2-W040N-HS56-01-FW is a drive controller from the HDS Drive Controllers series and is part of the DIAX04 controller family. It features a SERCOS command communication interface and a rated current of 40 Amps. This model uses a built-in internal air blower for cooling and has a protection category of IP10 per DIN 40 050.
Internal Product Review
The HDS02.2-W040N-HS56-01-FW is a Bosch Rexroth Indramat HDS drive controller with 40 A rated current and a SERCOS command interface. Built-in internal air blower cooling supports steady operation across a +5 to +45 °C ambient range. A well-engineered DIAX04 controller for demanding motion applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDS02.2-W040N-HS56-01-FW is a drive controller manufactured by Bosch Rexroth Indramat and positioned within the HDS Drive Controllers series. It supplies regulated power and motion commands to compatible servo modules, forming the axis control layer in automated machinery. Within an industrial cell, the unit links motion commands from a higher-level PLC to the power stage that actuates motors, allowing coordinated multi-axis movement. This arrangement supports controlled torque and speed response on connected servo axes during normal machine operation.
At the communication level, the controller exchanges cyclic setpoints and diagnostics over the SERCOS fiber-optic bus, which synchronizes multiple axes inside the DIAX04 family. Internally, a built-in air blower moves cooling air across the power electronics, so no external heat sink is required. The power section is rated for 40 A of continuous output, allowing it to drive medium-capacity servo motors under nominal conditions. The enclosure has an IP10 protection rating, and the windings and conductors use insulation class C per DIN VDE 0110 for elevated thermal endurance during repetitive acceleration duties. The unit is part of Line 02 and Design Version 2 of the DIAX04 controller platform. Its cooling path is integrated into the housing, which keeps airflow directed across the internal power section.
The installation envelope permits operation up to 1000 m above sea level, so no additional cooling margin is required until higher elevations are reached. During standard service, the electronics operate in ambient temperatures from +5 °C to +45 °C. Intermittent use can continue until the heat sink reaches +55 °C, after which staged derating is applied. During transport or long-term storage, the unit can tolerate temperatures from -30 °C to +85 °C without damage when it is not powered.
