Product Description:

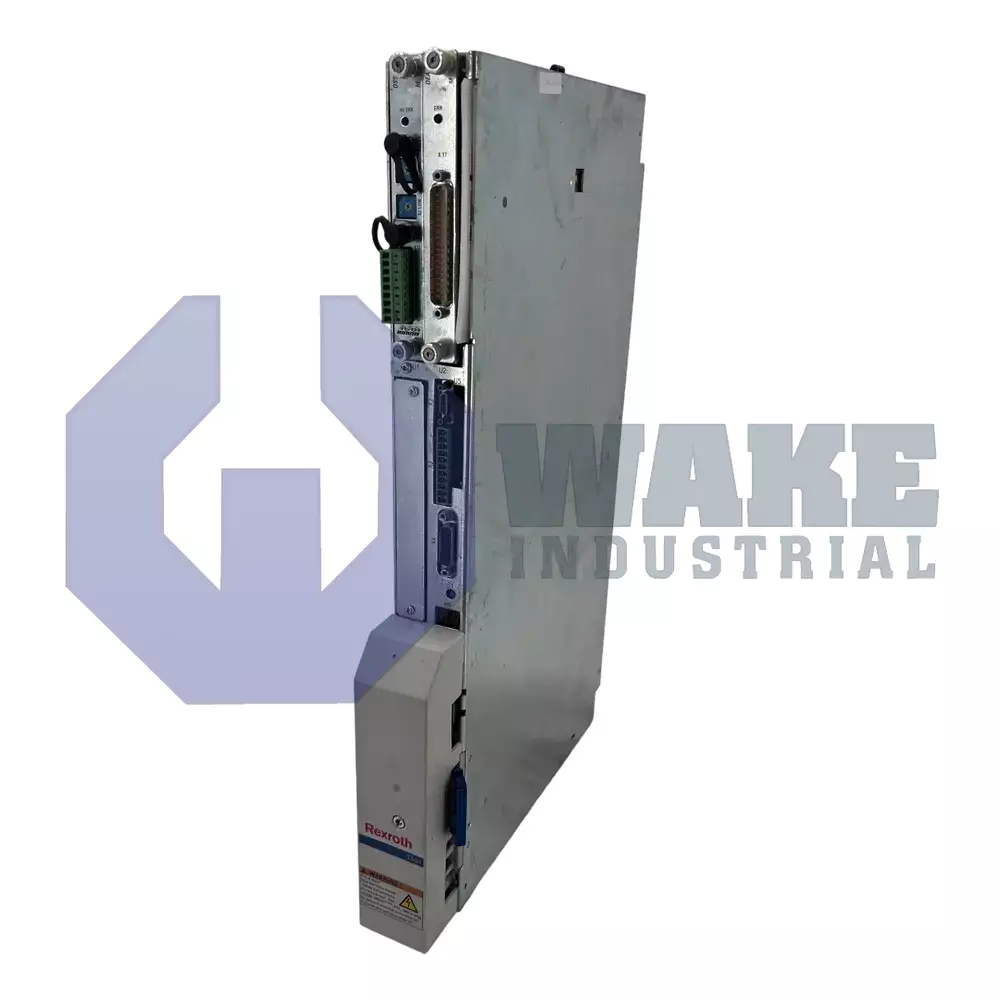

The HDS02.2-W040N-HS23-01-FW is a modular drive controller manufactured by Bosch Rexroth Indramat and included in the HDS Drive Controllers series. It is designed to deliver regulated power to servo motors and to coordinate motion sequences in CNC machines, printing lines, and material-handling equipment. By converting bus commands into precisely timed current waveforms, the unit forms the link between the central motion processor and each connected motor channel in an automated cell. This arrangement allows the controller to support accurate axis response during positioning and synchronized motion tasks.

In routine service, the controller supplies up to 40 A of continuous output current, allowing it to energize medium-power servo axes without saturation. Command exchange with the higher-level control occurs over the SERCOS fiber-optic loop, which supports deterministic cycle times for synchronized positioning. Thermal loads are managed by a built-in air blower that moves cabinet air across the heat sink, eliminating the need for external fans. For electrical safety, the housing carries an IP10 rating, limiting accidental contact with live parts while remaining open to airflow. Reliable operation is permitted across an ambient range of +5 to +45 °C, so the unit can be mounted in standard factory enclosures without supplemental conditioning.

At altitudes near 1000 m above sea level or when cabinet temperatures approach +55 °C, output must be reduced to avoid overload trips. During warehousing or shipment, the assembly withstands a storage range of -30 to +85 °C, protecting the circuitry from seasonal temperature swings while the unit is unpowered. The controller belongs to the DIAX04 family, and it is line 02 and version 2. It uses insulation class C under DIN VDE 0110 to tolerate elevated internal temperatures during prolonged high-duty cycles.
