HDD02.2-W040N-HD32-01-FWA Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.

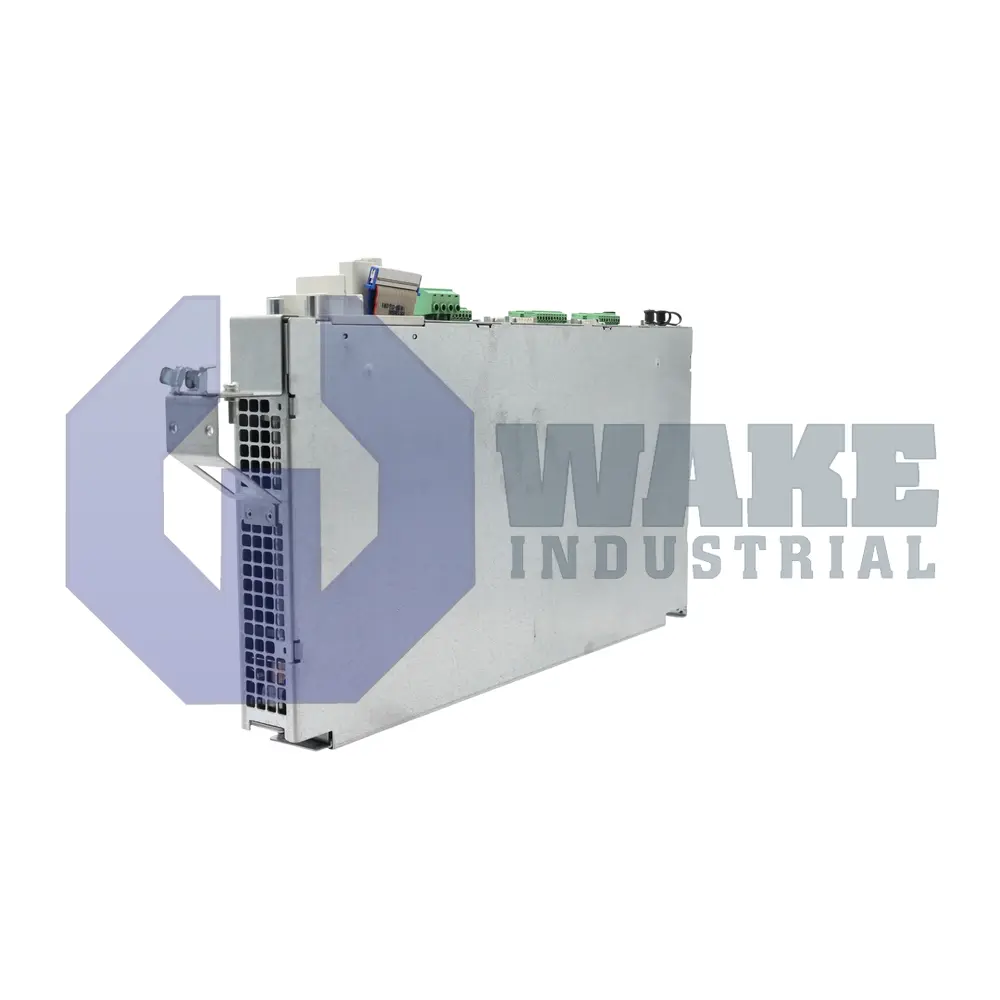

The Bosch Rexroth Indramat HDD02.2-W040N-HD32-01-FWA is part of the HDD Drive Controllers series and supports two axes with a command interface using SERCOS. This drive controller provides a continuous current of 15 A per axis at 4 kHz and a peak current of 40 A per axis, with protection category IP10. The HDD02.2-W040N-HD32-01-FWA features an internal air blower cooling method and weighs 8 kg.
Internal Product Review
The HDD02.2-W040N-HD32-01-FWA is a two-axis Bosch Rexroth Indramat drive controller featuring a SERCOS command interface and 1 Vpp sinusoidal encoder input per axis. With continuous currents up to 15 A per axis at 4 kHz and peak currents of 40 A, this unit suits demanding automation tasks. Internal air cooling ensures stable operation, making this drive controller a strong choice for precision motion applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDD02.2-W040N-HD32-01-FWA is an AC drive controller produced by Bosch Rexroth Indramat within the HDD Drive Controllers series. It converts regulated DC-bus energy into controlled three-phase outputs that drive servo motors, maintaining closed-loop velocity and position for automated machinery. Acting as the link between motion feedback and machine sequencing, it delivers the programmable current and voltage necessary for synchronized manufacturing tasks.
Electronically, the unit handles 2 axes, and each axis is commanded through the SERCOS interface for deterministic fiber-optic communication. Continuous output reaches 15 A per axis at a 4 kHz current loop, or 10 A when the switching frequency is raised to 8 kHz. Acceleration events permit surges to 40 A per axis, while the DC link operates safely between 530 V and 670 V to support a maximum phase-to-phase voltage of 500 V and output frequencies up to 1000 Hz. The controller draws 25 A of continuous input current and is rated for 40 A on the line side. Internally, it allocates 45 W for control supply power and 40 W at ±26 V for signal processing, ensuring that the 1 Vpp sinusoidal encoder inputs on each axis are digitized without distortion. Power loss at continuous current is 110 W per channel, and this heat is managed by the integrated cooling system.
A built-in air blower moves cooling air through the heat sink, and the housing dissipates losses while remaining within protection class IP10. The drive occupies a 50 mm width, 308 mm depth, and 498 mm height and weighs 7 kg, which supports dense cabinet layouts. Nominal performance is maintained up to 45 °C ambient, while reduced-load operation is allowed to 55 °C or to elevations of 1000 m above sea level. A short-circuit current rating of 42 kA RMS and a maximum installation bus voltage of 670 V set the protective limits for upstream fusing and cabinet design.
