HDC01.1-A200N-CN01-01-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911292310
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
40 Seconds

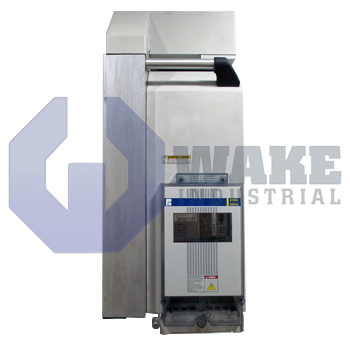

The Bosch Rexroth Indramat HDC01.1-A200N-CN01-01-FW is part of the HDC DuraDrive Controllers series and features a rated current of 200 Amps with a mass of 40 kilograms. This controller provides a continuous bleeder power of 1.5 kW and a peak bleeder power of 115 kW, with a protection rating of IP20. Its DC bus capacitance is 4.7 millifarads and its DC bus power at 400 V is 15 kW.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDC01.1-A200N-CN01-01-FW is a drive controller produced by Bosch Rexroth Indramat within the HDC DuraDrive Controllers series. Designed for cabinet installation, the unit forms the DC bus backbone of multi-axis platforms by rectifying, storing, and redistributing energy between connected inverters. Its role in industrial automation is to maintain stable bus voltage, absorb regenerative surges, and provide soft-start functionality for motors and associated loads.
Its continuous bleeder circuit dissipates up to 1.5 kW of regenerative power so that the DC link remains below the programmed limit during braking events. Energy storage is provided by a bus capacitor bank rated at 4.7 mF, giving the drive a buffer against short-term load swings. When the link is held at 400 V, the controller can source up to 15.0 kW for downstream servo drives, and this power is distributed through output bars that carry a steady 200 A. For applications that require fast vector control, the module supports a maximum switching and modulation rate of 400 Hz, allowing high-speed spindle or linear motor operation without saturating the filter network.
Transient overload capacity is handled by a peak bleeder stage that tolerates 115 kW in short bursts, while the laminated resistor stack can absorb up to 60 kWs of total energy before the thermal limit is reached. The logic section draws only 26 W of control power, which simplifies UPS sizing during controlled shutdowns. A soft-start resistor of 24 Ω and an auxiliary Zks resistor of 6 Ω limit inrush current during initial capacitor charging; that process is governed by a 17 ms charge pulse and limited to 7 A. The steel housing has an IP20 rating, and at a transport mass of 40 kg, the unit requires a rigid panel mounting surface without additional vibration damping.
Frequently Asked Questions about HDC01.1-A200N-CN01-01-FW:
Q: What is the continuous bleeder power capacity of the HDC01.1-A200N-CN01-01-FW controller?
A: The HDC01.1-A200N-CN01-01-FW offers 1.5 kW of continuous bleeder power for efficient energy dissipation during normal operations.
Q: What is the rated current supported by the HDC01.1-A200N-CN01-01-FW controller?
A: This drive controller is designed to handle a rated current of 200 A, allowing reliable operation in demanding settings.
Q: What is the maximum output frequency of the HDC01.1-A200N-CN01-01-FW?
A: The maximum output frequency for this controller is 400 Hz, supporting high-speed motor control applications.
Q: What protection rating does the HDC01.1-A200N-CN01-01-FW offer?
A: The HDC01.1-A200N-CN01-01-FW features a protection rating of IP20, which means it is protected against solid foreign objects but not against water.
Q: What is the value of the soft-start resistor in the HDC01.1-A200N-CN01-01-FW?
A: This controller uses a soft-start resistor with a value of 24 Ohm, aiding in controlled power-up to limit inrush currents.
