Product Description:

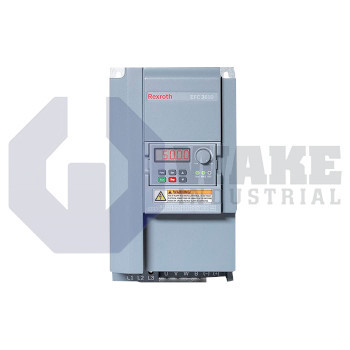

The EFC5610-1K50-1P2-MDA-7P-NNNNN-L1NN frequency converter is produced by Bosch Rexroth Indramat within the EFC Frequency Converters series. As a general-purpose AC drive, it regulates induction or permanent-magnet motors in industrial automation by adapting the mains frequency to the commanded speed and torque profile. The model belongs to the EFC 5610 product line 02 and is intended for cabinet installation, where its compact housing suits pumps, fans, and conveyor stages.

It communicates through Modbus, allowing parameter access from PLCs without additional gateways. Motor regulation relies on standard vector control (SVC), so torque is maintained even at low speeds during heavy-duty operation. The converter accepts a mains input of 200...240 V AC with a tolerance of ±10% and is wired for a single-phase supply, which suits manufacturing areas that lack three-phase service. When the heavy-duty rating is selected, the drive can deliver up to 1.5 kW of power, matching small pumps, fans, or conveyor modules. Control logic is handled by the Flex-Control section with digital and analog I/O, and the standard LCD display includes an integrated potentiometer for local speed adjustment. The built-in industrial EMC filter complies with C3 limits to reduce conducted emissions on the supply lines.

The unit is built on frame size C, so its mounting pattern aligns with other drives in the same power class and leaves room for airflow inside the cabinet. The housing carries an IP20 rating, providing finger protection but requiring placement in an enclosed panel to limit exposure to dust and moisture. For functional safety, the inverter offers Safe Torque Off (STO), which enables immediate motor de-energization through redundant terminals during emergency stops. The housing and control arrangement support compact panel layouts while keeping power, control, and display functions in a single drive body.
