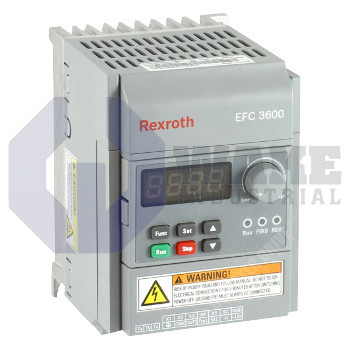

EFC3600-0K40-1P2-MDA-7P-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R912003758
The Bosch Rexroth Indramat EFC3600-0K40-1P2-MDA-7P-NNNN is a frequency converter from the EFC Frequency Converters series, operating on single phase 200 V AC and offering a rated output power of 0.4 kW. It features enhanced V/Hz control, a standard LCD display with potentiometer, and supports Modbus communication. The unit uses IP20 protection, includes an internal brake chopper, and achieves a speed regulation range of 1 to 50.
Internal Product Review
The EFC3600-0K40-1P2-MDA-7P-NNNN is a well-executed frequency converter built around enhanced V/Hz control. A 200 V single-phase input and 0.4 kW rated output make the drive especially suitable for compact motor control applications. Modbus connectivity and 150% rated torque at 3 Hz stand out as strong advantages for straightforward integration and confident low-speed startup.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The EFC3600-0K40-1P2-MDA-7P-NNNN frequency converter is produced by Bosch Rexroth Indramat within the EFC Frequency Converters series. It belongs to the EFC 3610 model group and is intended to vary induction motor speed in small industrial machines by adjusting supply frequency and voltage. Integrated power electronics and a Flex-Control section let the unit act as the link between 200 V single-phase mains and the driven load in applications such as fans, pumps, and compact conveyors.
Electrical parameters describe how the converter interfaces with the supply and motor. A single-phase 200 to 240 V AC input feeds a rectifier sized for a 5.8 A rated current, while the inverter delivers up to 0.4 kW of output power under heavy-duty conditions. Frequency is generated with 0.01 Hz digital resolution across the 1:50 regulation band, and the output can be driven as high as 400 Hz. Protection against dust contact is provided by the IP20 housing. Control tasks are handled through Enhanced V/Hz logic configured in Standard mode, and the Flex-Control section exposes conventional I/O together with Modbus for networked commands. An internal brake chopper works with a 400 Ω / 100 W resistor for dynamic deceleration, and an industrial-grade Class C3 filter limits conducted emissions. A front LCD with potentiometer, frame size B profile, and 4.5 mm M4 mounting points simplify panel integration. The unit operates between -10 °C and 50 °C without derating.
During operation, the IGBT bridge switches at up to 15 kHz, limiting motor acoustic noise while sustaining torque. At 3 Hz it can deliver 150% rated torque to start high-inertia loads, and once at speed it supplies a continuous 2.3 A RMS output that corresponds to 0.8 kVA of apparent power. These figures are shown on the LCD and can be reported over Modbus for remote diagnostics. For long-term reliability, the electronics may be stored between -20 °C and 60 °C before installation.
