Product Description

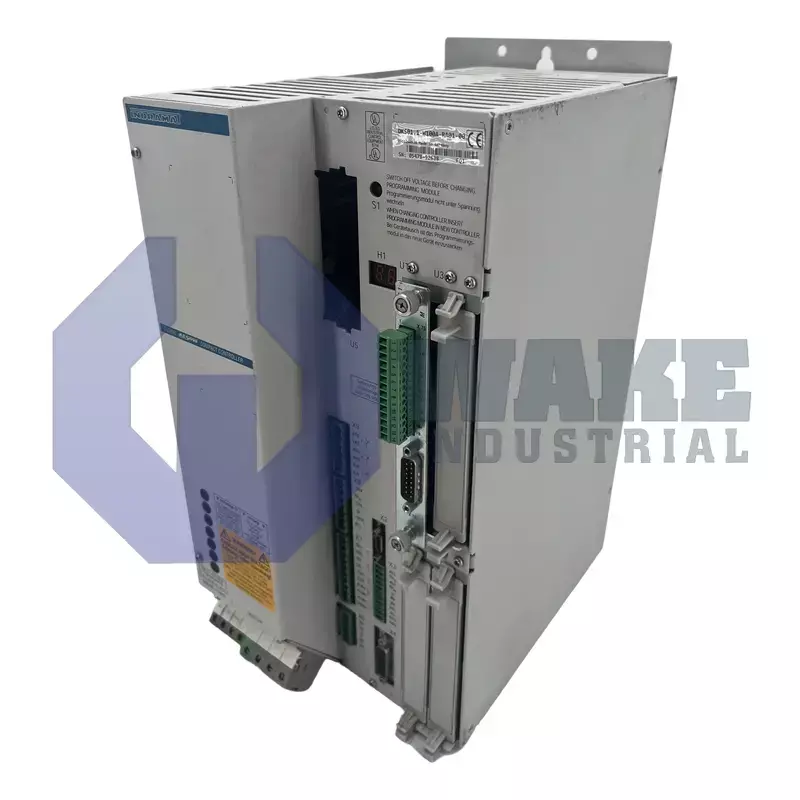

The DKS01.1-W100A-RA01-00 is an intelligent digital servo drive manufactured by Rexroth Indramat for use with MDD motors. A complete DKS series drive comprises of the basic drive, software module, command interface card, configuration label and plug-in modules. Slots for the plug-in modules are on the basic unit. Command interface cards provides connectivity between the drive and control and can be either a positioning type card, a SERCOS interface, an analog interface with incremental encoder or analog interface with absolute encoder. The software module contains the operating software and configuration parameters for the drive. Plug-in auxiliary cards include binary I/O cards, incremental position interface cards and high-resolution position interface cards. Configuration label on the DKS01.1-W100A-RA01-00 drive contains the type code for the following: the basic unit, software module and plug-in cards.

The DKS01.1-W100A-RA01-00 includes an integrated resolver type encoder. Peak and rated current rating is 100 Amps and the continuous current which the drive can sustain is 50 Amps. The pulse width modulation (PWM) frequency is 4 kilohertz. Input of the drive only accepts three-phase voltages at 230 (±10%) Volts AC at 50 to 60 Hertz frequencies. When operating under maximum load the power requirement of the DKS01.1-W100A-RA01-00 can go up to 11 kVA. The DKS01.1-W100A-RA01-00 is designed for installation inside a control cabinet where it will be protected from dust and moisture. Housing of the drive has environmental protection rating of IP10. Insulation class of the drive is C as per DIN 570 110. Cooling type of the drive is warm where the heat dissipates inside the control cabinet. The DKS01.1-W100A-RA01-00 is rated for standard noise emission. Shipping weight of the drive is 11 kilograms. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
