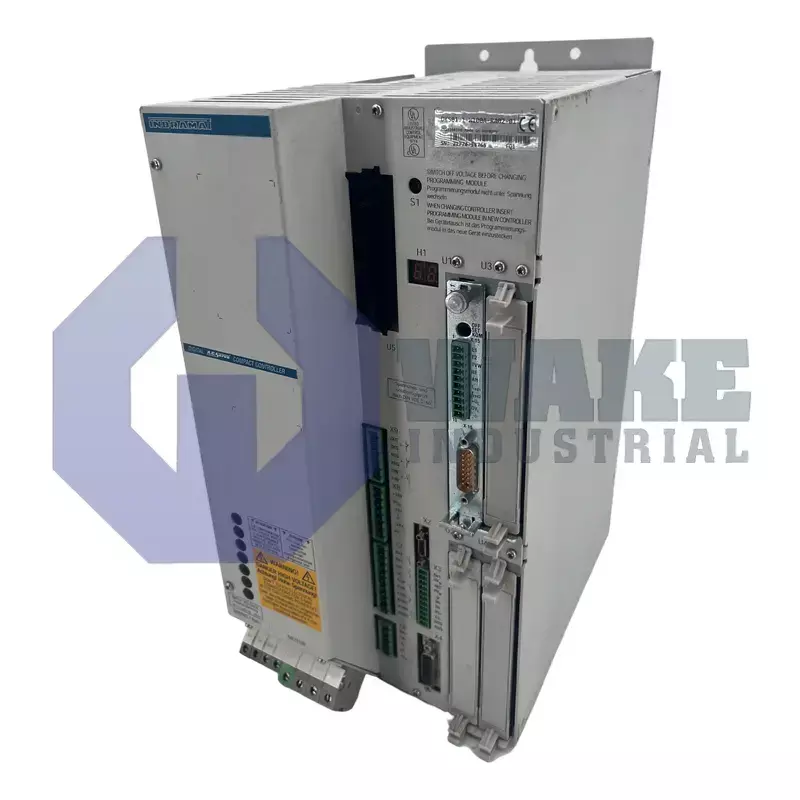

DKS01.1-W100A-RA02-01 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911266198
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
18 Seconds
The Bosch Rexroth Indramat DKS01.1-W100A-RA02-01 is part of the DKS Intelligent Digital Servo Drives series. This digital servo drive operates with a rated current of 100 Amps, DC bus voltage of 300 V, and has a bleeder peak power of 18 kW. It is designed for 3 x 230 V AC input voltage, features resolver feedback, and is cooled by heat dissipation.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DKS01.1-W100A-RA02-01 is part of the DKS Intelligent Digital Servo Drives series from Bosch Rexroth Indramat. It connects the plant's three-phase mains to a resolver-equipped servo motor and converts fixed-frequency input power into a variable output for accurate motion control in tooling, conveyors, and feeders. Control electronics, the power stage, and diagnostic functions are integrated into one housing, which reduces separate components in the cabinet and keeps signal paths short. Because motion commands and diagnostic monitoring are handled in the same unit, the drive can report operating status while continuing to regulate the connected axis. This arrangement supports repeatable positioning and speed regulation in packaging, printing, and material-handling lines where coordinated axis response is required.
The power section accepts a three-phase supply of 3 x 230 V AC and rectifies it to a DC bus of 300 V. The DC bus then feeds the inverter stage so the motor receives controlled voltage and current instead of raw mains frequency. Under nominal demand, the inverter can deliver up to 11 kVA, and its continuous line current is limited to 100 A. Pulse-width modulation operates at 4 kHz, which supports controlled motor current delivery while keeping switching behavior predictable. Internal dissipation reaches 480 W, so cabinet airflow must remove the generated heat during continuous operation. Resolver feedback closes the control loop, and the noise emission is standard for equipment installed near operators.
Excess kinetic energy is absorbed by an integrated resistor rated for 0.5 kW continuously and up to 18 kW during abrupt deceleration. This braking function helps limit DC bus rise when the motor returns energy during stopping. Cooling is done by heat dissipation, and the enclosure has IP10 protection without the use of external fans. The drive can operate at elevations up to 1,000 m above sea level and maintains full output until the ambient temperature reaches 55 °C, after which derating applies. Humidity class F supports use in high-moisture environments, and the unit is version 1.
Frequently Asked Questions about DKS01.1-W100A-RA02-01:
Q: What is the rated current for the DKS01.1-W100A-RA02-01 servo drive?
A: The DKS01.1-W100A-RA02-01 digital servo drive has a rated current of 100A for reliable operation in demanding applications.
Q: What input voltage does the DKS01.1-W100A-RA02-01 require?
A: This servo drive requires an input voltage of 3 x 230 V AC for standard operation.
Q: What type of feedback does the DKS01.1-W100A-RA02-01 use for position sensing?
A: The DKS01.1-W100A-RA02-01 uses resolver feedback for motor position detection.
Q: How is the DKS01.1-W100A-RA02-01 servo drive cooled?
A: The cooling method for this drive is heat dissipation, which helps maintain proper operating temperature.
Q: What is the maximum load power supported by the DKS01.1-W100A-RA02-01?
A: The DKS01.1-W100A-RA02-01 produces a maximum power at load of 11 kVA, supporting high-power applications.
