Product Description:

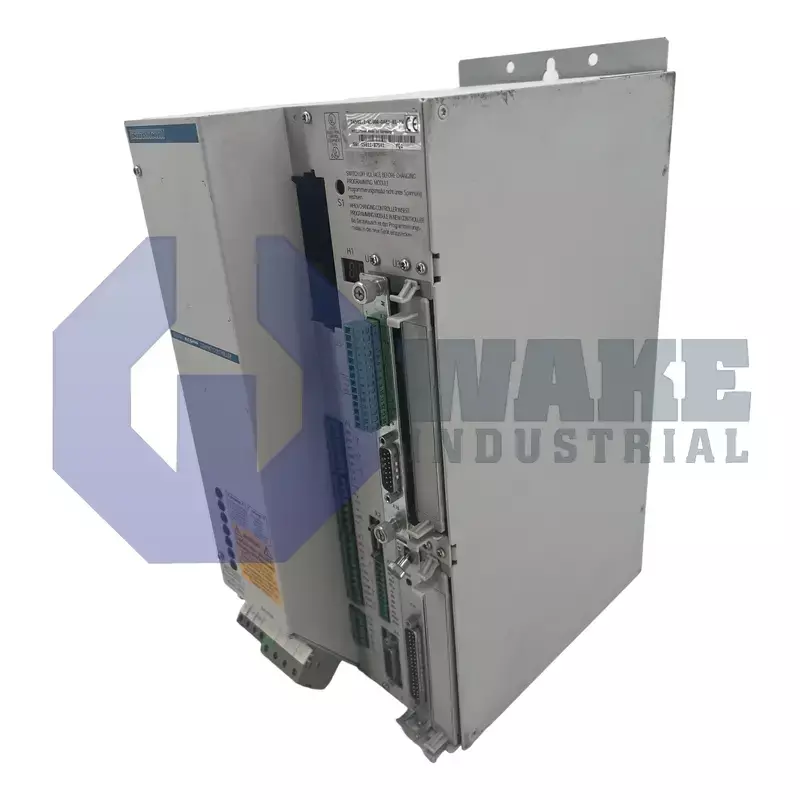

The DKS01.1-W100A-DA03-01-FW is a digital servo drive produced by Bosch Rexroth Indramat within the DKS Intelligent Digital Servo Drives series. In automated production lines, the module receives motion commands from a higher-level controller. It regulates three-phase output to synchronous or induction servomotors, converting constant mains energy into variable-frequency, variable-amplitude power for precise positioning and speed regulation. This allows the drive to support controlled acceleration, steady running, and responsive speed changes during closed-loop motion tasks.

At the input, the unit accepts 3x 230 V AC (±10%) across industrial feeders operating at 50–60 Hz, and under maximum loading the line current reaches 28 A while the internal DC link is maintained at 300 V DC. The inverter stage can supply a continuous motor phase current of 100 A and switches at 4 kHz to synthesize near-sinusoidal waveforms. Heat generated by the power electronics is removed solely by passive heat dissipation, and measured losses total 480 W when the drive delivers full mechanical torque. These electrical figures apply within an ambient range of +5 °C to +45 °C, and performance is derated above +45 °C up to the +55 °C ceiling. The noise emission is standard, and the unit is version 1.

The upstream supply must provide 11 kVA under worst-case duty and accommodate the regeneration channel, which uses a built-in power resistor that dissipates 0.5 kW continuously and withstands peaks up to 18 kW during rapid deceleration events. Protection level IP10 identifies an open-frame housing that relies on the enclosure for ingress shielding while leaving ventilation paths unobstructed. The open-frame layout leaves cooling surfaces exposed to cabinet airflow and requires installation inside a suitable electrical enclosure. Rated operation is guaranteed up to 1000 m elevation without derating, and the unit may be stored or shipped between −30 °C and +85 °C.
