Product Description:

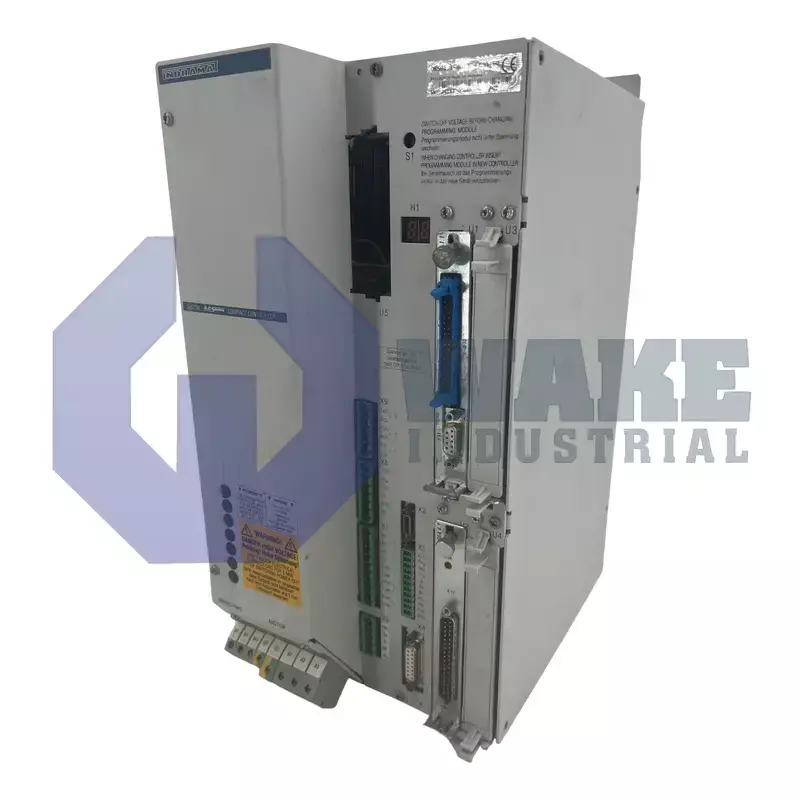

The DKS01.1-W030B-DG01-00 digital servo drive is manufactured by Bosch Rexroth Indramat and belongs to the DKS Intelligent Digital Servo Drives series. Serving as an axis amplifier, it rectifies the AC supply, builds a regulated DC link, and then generates pulse-width-modulated output for synchronous motors. Integrated drive intelligence processes position data from the connected encoder so that assembly robots, conveyors, and pick-and-place stations can achieve closed-loop speed and torque control without an external motion card. By combining power electronics, drive control functions, and regenerative braking hardware in one housing, it reduces cabinet space and wiring complexity in multi-axis automation.

The drive accepts a single-phase supply of 230 V AC (±10%), and an internal rectifier charges the DC link to 300 V DC for the output inverter. Under continuous duty, the power section can deliver a rated motor current of 30 A, enabling medium-torque axes such as index tables or form-fill-seal jaws. Current is chopped at a carrier frequency of 18 kHz, which pushes switching noise above the audible range and helps reduce motor ripple. The enclosure is rated IP10, so the unit must be installed in a clean control cabinet. The encoder interface supports Digital Servo Feedback, matching a compatible DSF transducer on the motor. Heat from the IGBTs is dissipated through the aluminum baseplate. For areas with elevated moisture, the design follows humidity class F (DIN 40 040), and the unit is version 1.

The integrated bleeder resistor continuously dissipates excess regenerative energy at 0.3 kW and can absorb surges up to 5 kW during rapid deceleration, preventing DC link overvoltage. Reliable operation is permitted up to a cabinet temperature of +55 °C when the output is derated, and installation heights can reach 1000 m without additional correction. Above these limits, the current or switching frequency must be reduced to keep the power semiconductors and bus capacitors within their thermal limits. Low conducted emissions and reduced acoustic noise help limit interference with nearby instrumentation.
