Product Description:

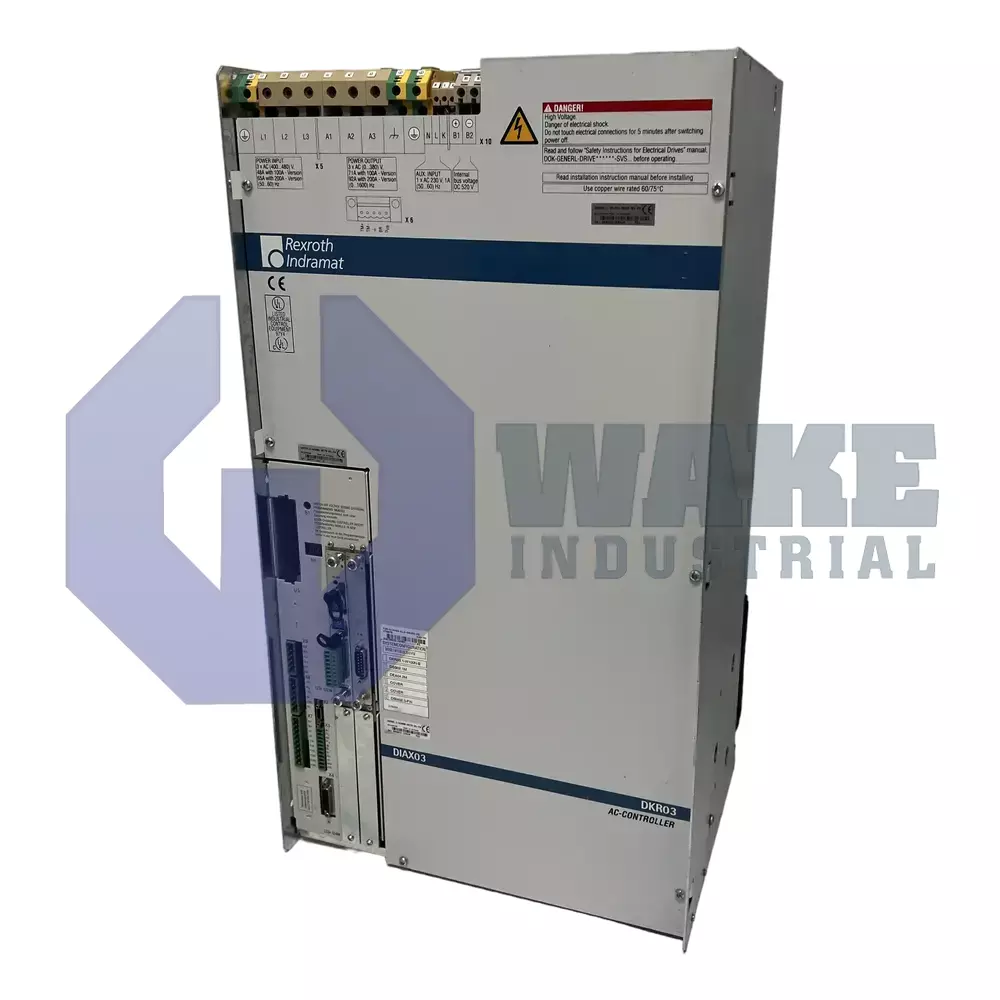

The DKR03.1-W100N-BE79-01-FW is a digital intelligent AC drive controller produced by Bosch Rexroth Indramat within the DKR Drive Controllers series. It is intended for high-power axis control in industrial automation where rapid torque response and coordinated multi-axis motion are required. By converting incoming three-phase power into a regulated DC link and pulse-width-modulated output, the unit commands servomotors and spindle drives used in machining centers, material-handling gantries, and packaging lines where stable speed and repeatable motion are required.

This controller communicates with higher-level PLCs through a SERCOS interface, allowing deterministic timing of position and velocity commands. At a switching frequency of 4 kHz, the power section delivers a continuous output current of 71 A, which supports sustained mechanical loads on large motors. At the same switching frequency, the inverter can supply about 26 kW of continuous shaft power. Internal logic and I/O are energized from a separate control supply of AC 230 V, ± 10%, which helps isolate the electronics from line disturbances. Thermal management is provided by a built-in air blower, so cabinet ventilation must accommodate the airflow generated by the integral fan.

The power stage accepts an input of 3 x AC 400 to 480 V, ± 10%, which matches common factory distribution networks. During full-load operation, the unit releases approximately 900 W of heat that must be removed to keep semiconductor junctions within limits. Feedback evaluation supports digital servo and resolver feedback, so the same controller can operate with high-resolution encoders and resolver transducers. This gives the drive flexibility when different axes use different motor feedback formats. The unit has a mass of 49 kg, and the current rating code is 100. It is also part of line series 03 with design version 1 and function module version 01.
