DKR02.1-W300N-BE43-01-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911266269
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
28 Seconds

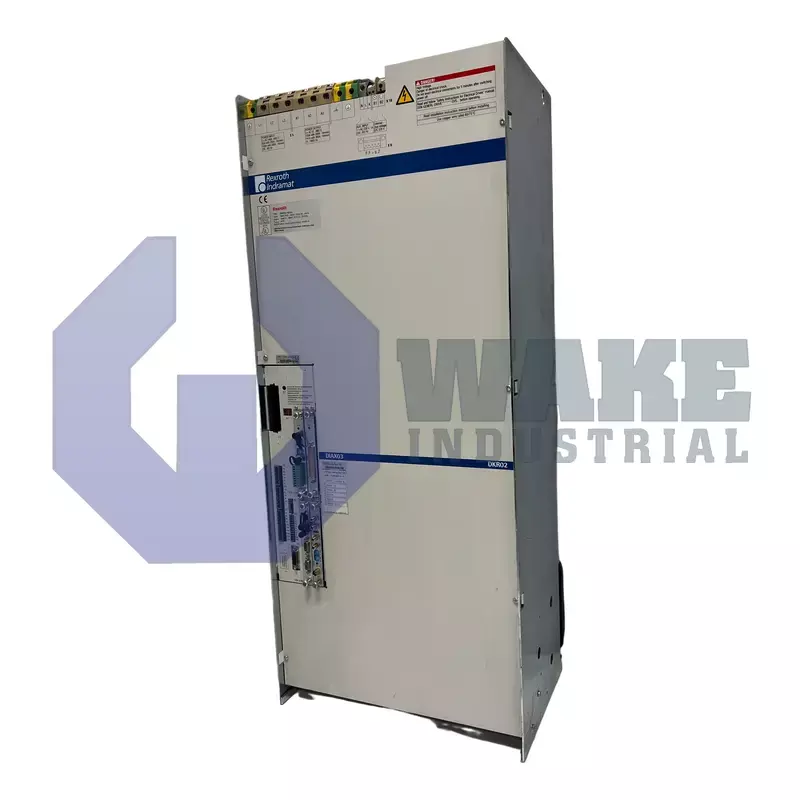

The Bosch Rexroth Indramat DKR02.1-W300N-BE43-01-FW is a digital intelligent AC drive controller from the DKR Drive Controllers series. It features a SERCOS command interface, handles continuous currents of 141 A at 4 kHz, and delivers approximately 55 kW of continuous power. The controller is cooled by a built-in blower and weighs about 104 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DKR02.1-W300N-BE43-01-FW drive belongs to the DKR Drive Controllers series from Bosch Rexroth Indramat. As a digital intelligent AC drive controller, it regulates high-power servo and spindle motors used in machining centers, printing lines, and automated assembly systems. The unit receives feedback from digital servo encoders or resolvers and supplies variable three-phase power to match commanded motion profiles.
The controller’s power section is designed for a mains range of 3 x AC 400 to 480 V ± 10%, and its internal electronics are energized by a logic supply of AC 230 V ± 10%. At the default 4 kHz pulse frequency, the inverter can deliver a continuous current of 141 A, which corresponds to roughly 55 kW of sustained mechanical output from the connected motor system. For acceleration or transient load events, the current reserve climbs to 212 A, allowing short bursts of torque without violating thermal limits. Motion commands and diagnostic data are exchanged through the SERCOS interface, and an integrated blower channels air through the heat sink to stabilize semiconductor temperatures during full-load operation.
Total losses removed by the cooling circuit reach 1800 W, so panel ventilation must accommodate this heat while the DC bus design omits a brake chopper or external bleeder. The absence of a dynamic brake is possible because the DC link can accept energy returned during regenerative deceleration. Cooling is provided by a built-in air blower, and the overall mass is approximately 104 kg, which is suitable for direct cabinet mounting with standard lifting equipment. The controller has a current rating of 300 A and is in Line 02 with design version 1. Function module 43, revision 01, provides application-specific logic while still accepting both digital servo and resolver feedback.
Frequently Asked Questions about DKR02.1-W300N-BE43-01-FW:
Q: What is the continuous current for the DKR02.1-W300N-BE43-01-FW drive at 4 kHz?
A: The DKR02.1-W300N-BE43-01-FW features a continuous current of 141 A at 4 kHz.
Q: What type of motor feedback can be used with the DKR02.1-W300N-BE43-01-FW?
A: This drive controller supports motor feedback through both digital servo and resolver feedback options.
Q: What command interface is available on the DKR02.1-W300N-BE43-01-FW?
A: The DKR02.1-W300N-BE43-01-FW uses a SERCOS interface as its command interface for communication.
Q: What cooling method does the DKR02.1-W300N-BE43-01-FW utilize?
A: Cooling for this model is managed by a built-in air blower method.
Q: What is the rated power voltage for the DKR02.1-W300N-BE43-01-FW drive controller?
A: The rated power voltage range is 3-phase AC 400 to 480 V with a ±10% tolerance.
