Product Description:

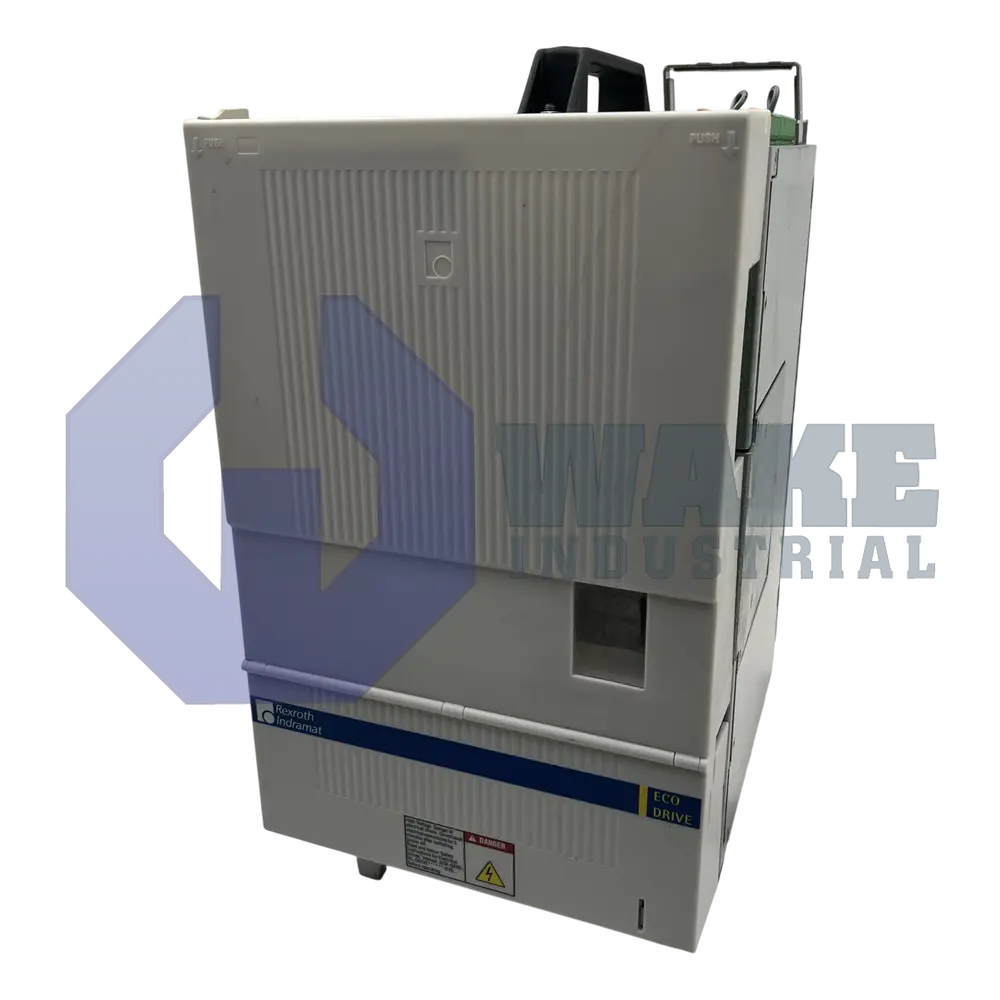

The DKCXX.3-200-7-FW device is an EcoDrive servo drive controller produced by Bosch Rexroth Indramat and assigned to the DKC Drive Controllers series. Intended for cabinet installation, it converts energy from a shared DC bus into regulated three-phase output so that synchronous or induction servomotors can be positioned, accelerated, or decelerated in automated machinery cells. An integrated dynamic brake and soft-start network are housed with the power section to simplify wiring in multi-axis production equipment.

The power module supplies a rated current of 200 A, enabling high-torque axes such as press feeders or gantry drives. Energy is buffered on a 700 V DC bus that is charged through a 24 Ω resistor and a 1.5 mF capacitor bank, limiting inrush and stabilizing voltage. Continuous switching losses reach 960 W, so forced-air cooling must be maintained to hold semiconductor temperatures within design limits. Logic circuits draw their power from a 24 VDC input; the charge circuit briefly pulls 6 A for 9 ms before settling to a steady 29 W demand. The inverter can modulate motor voltage up to 800 V at carrier frequencies that allow an output of 1000 Hz, supporting high-speed spindle or linear motor applications. Protection against accidental contact is classified as IP20, and the short-circuit rating of 42 kA RMS matches common industrial mains interrupt capacities.

With a weight of 19.5 kg and dimensions of 360 mm × 230 mm × 261 mm, the controller fits standard 300 mm-deep enclosures without special reinforcement. It operates continuously in ambient air up to 45 °C; service is possible to 55 °C when output is derated. Relative humidity may reach 95% non-condensing, and functional altitude is limited to 1000 m to maintain dielectric clearances. An internal bleeder absorbs 60 kWs of regenerative energy and diverts peaks of 120 kW, while a 6 Ω ZKS resistor provides additional damping during emergency stops.
