The Bosch Rexroth Indramat DKC11.1-040-7-FW is part of the DKC Drive Controllers series and weighs 4.4 kg. It features an internal blower cooling system, a rated current of 40 Amps, and operates with a DC-bus nominal voltage of 700 Volts. This EcoDrive has an IP20 protection rating and offers a peak bleeder output of 10 kW for 0.5 seconds.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

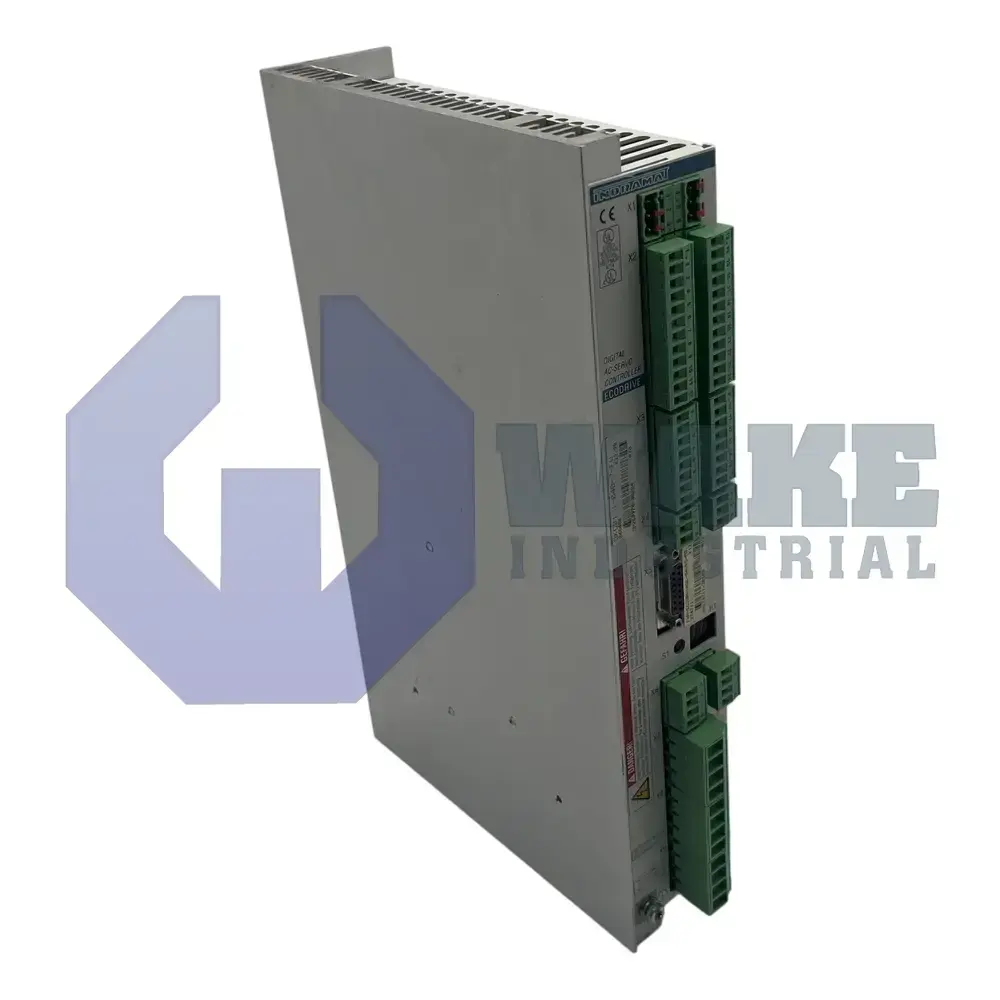

The DKC11.1-040-7-FW is a Bosch Rexroth Indramat drive controller from the DKC Drive Controllers series. Classified by the manufacturer as an EcoDrive unit, it governs three-phase servo axes by translating command signals into regulated motor currents while managing regenerated energy through its integrated bleeder circuit. This hardware is identified as design version 1 and is supplied with interface option 11 for system-level communication.
The controller delivers a continuous motor phase current of 16 A at a 4 kHz switching frequency and can supply a rated and peak output of 40 A for short load surges. Its DC-bus section is charged to 700 V and stabilized by 0.15 mF of capacitance, storing 15 Ws for immediate dynamic response. Regenerated power is dissipated through the bleeder, which can handle 0.15 kW continuously and up to 10 kW (0.5 s) during rapid deceleration; the bleeder also accepts a maximum feedback energy of 5.0 kWs. Internal blower cooling maintains component temperatures while the unit releases 180 W of heat under nominal conditions without the bleeder engaged. Additional electrical figures include a 0.7 A control supply requirement and a three-phase operating mode that matches standard industrial mains.
An IP20 housing protects the electronics against solid objects and allows cabinet mounting in humid production areas up to 95% relative humidity and 25 g/m³ absolute moisture. Full performance is available to ambient temperatures of 55 °C and installation elevations reaching 1000 m above sea level without derating. The controller weighs 4.4 kg, easing placement on DIN rails or backplates. Storage and handling are simplified by its 0.15 kW continuous bleeder output, 180 W dissipation baseline, and internally driven airflow, providing stable operation when cabinet space and environmental limits are tight.
Frequently Asked Questions about DKC11.1-040-7-FW:
Q: What is the rated current of the DKC11.1-040-7-FW drive controller?
A: The DKC11.1-040-7-FW drive controller has a rated current of 40 A, allowing it to handle high-load applications reliably.
Q: What cooling method does the DKC11.1-040-7-FW use?
A: This controller uses internal blower cooling to maintain optimal operating temperatures during use.
Q: What operating mode is supported by the DKC11.1-040-7-FW?
A: The DKC11.1-040-7-FW is designed for three-phase operation, providing compatibility with standard industrial power systems.
Q: What protection rating does the DKC11.1-040-7-FW drive controller have?
A: The unit carries a protection rating of IP20, which means it is protected against solid objects larger than 12.5 mm.
Q: What is the peak bleeder output capability of the DKC11.1-040-7-FW?
A: The DKC11.1-040-7-FW features a peak bleeder output of 10 kW for up to 0.5 seconds, aiding in safe energy dissipation during dynamic braking.
