Product Description:

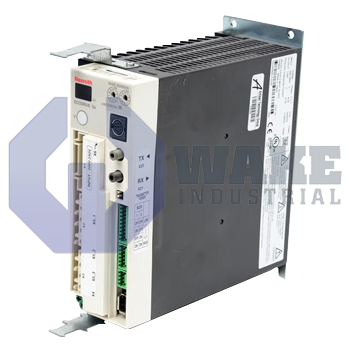

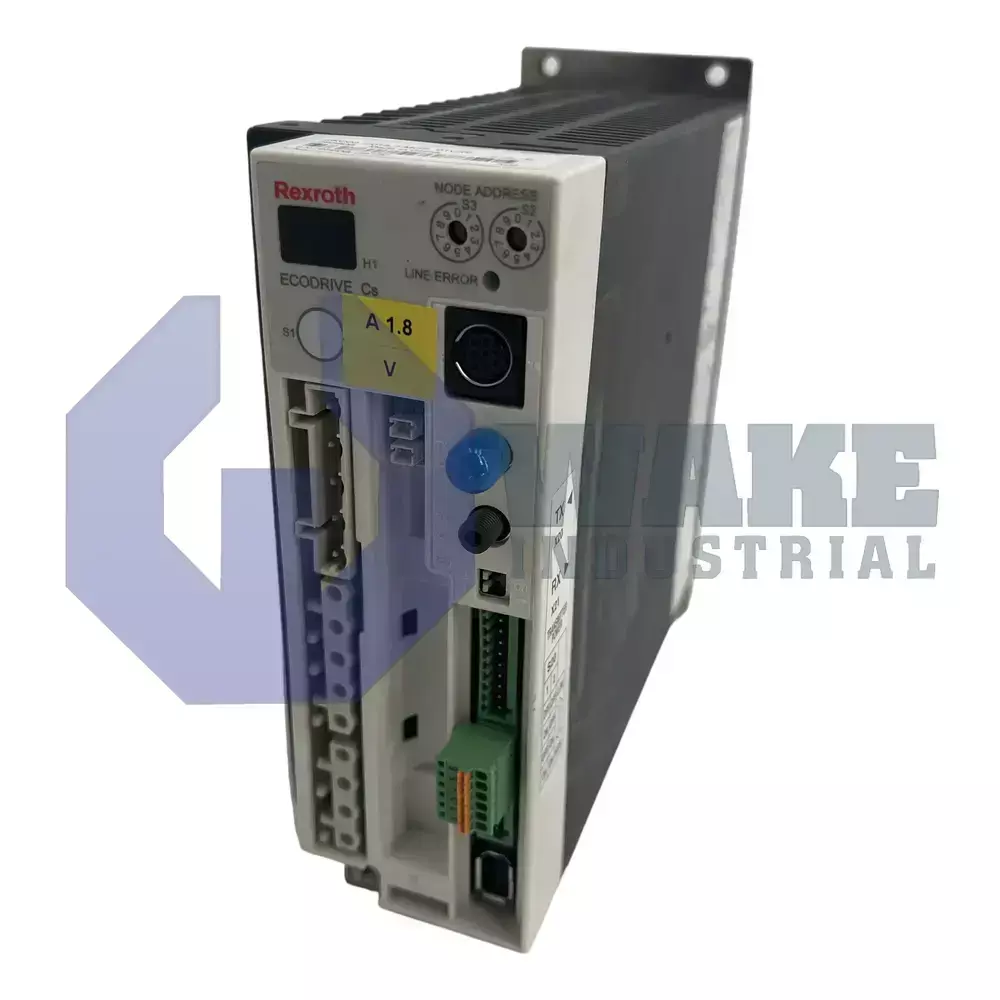

The DKC06.3-018-3-MGP-01VRS is an EcoDrive controller manufactured by Bosch Rexroth Indramat and supplied as part of the DKC Drive Controllers series. It operates as a compact axis amplifier that converts three-phase line power into a regulated DC link and pulse-width-modulated outputs for servo or induction motors. In automated packaging, material handling, and pick-and-place cells, the unit closes the control loop between feedback devices and the motion program to maintain repeatable positioning accuracy.

Inside the controller, the DC link is stabilized at 300 V, which serves as the energy reservoir for the output stage. A rated output current of 18 A is the continuous motor winding current the drive can supply without derating, while the maximum line input is limited to 3.1 A to protect upstream breakers. Heat produced by the switching devices reaches about 750 W at continuous current, so adequate cabinet airflow is required. The electronics run safely up to 40 °C, and above that temperature additional cooling or current reduction is necessary. Design 3 includes component revisions that reduce switching losses, and the DC bus is automatically charged through an internal precharge network to control inrush during power-up.

System integration parameters are managed through Interface Option 06, which provides SERCOS, analog, and digital I/O channels for coordinated motion. The unit uses application version 01, and its multi-interface, general-purpose feature set allows the same controller to support indexing, positioning, or velocity loops without extra option cards. The mechanical package weighs only 2.1 kg, easing panel installation and minimizing vibration loads. Built on the EcoDrive platform, the controller supports compact drive layouts where stable current regulation and flexible I/O are required.
