The Bosch Rexroth Indramat DKC05.3-LK-CAN01 is part of the DKC Drive Controllers series and serves as an EcoDrive product type. It features a male DS102 D-SUB connector with 9 pins, 6 diagnostic LEDs, and supports the CANopen DS301 V3.0 profile. The drive controller provides complete galvanic isolation and allows up to 16 bytes of process data length.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

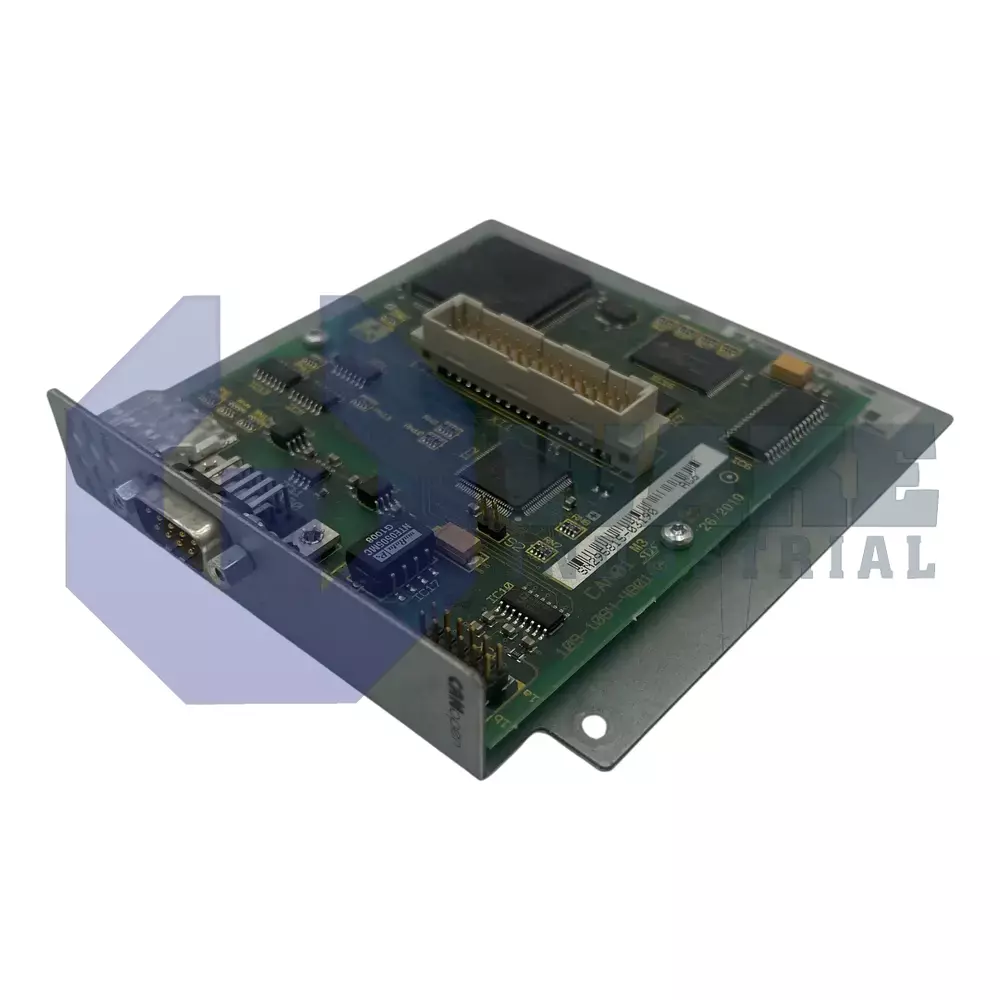

The DKC05.3-LK-CAN01 is an interface module supplied by Bosch Rexroth Indramat for the DKC Drive Controllers series. Classified as an EcoDrive accessory, it provides a CANopen communication channel so the controller can exchange real-time data with higher-level PLCs or neighboring drives in an automation cell. By installing this option card, the base drive gains fieldbus capability without altering the power electronics, allowing coordinated axis control and standardized diagnostics in industrial machinery. This arrangement supports distributed motion systems in which command words, status data, and fault messages must move with predictable timing.
The card uses a D-SUB connector built to the DS102 hardware pattern in a male layout. All nine contacts are available through a 9-pin interface; pins 3 and 6 serve as protective grounds, pin 5 carries the cable shield, pin 7 is dedicated to CAN-H, and pin 2 routes CAN-L. Six status indicators on the front panel provide visual feedback, so the module includes 6 diagnostic LEDs. The fixed assignment supports consistent CANopen network wiring inside machine cabinets and helps reduce pin-mapping confusion during integration. The module uses design level 3, and the host drive recognizes it as interface option 05 so the correct baud-rate limits and timing constraints are maintained.
At the protocol layer, the module complies with the DS301 V3.0 CANopen profile, allowing standardized object dictionaries and emergency messaging. Each direction supports 2 process data objects, and every PDO carries 8 bytes. The available PDO channels support cyclic control exchange, while service data messaging is used for parameter reading and writing. The module also accepts service data frames with up to 16 bytes of payload for parameter access. Signal integrity between the drive logic and the fieldbus is protected by completely decoupled galvanic isolation, which helps prevent ground loops when several EcoDrive units share a common network. This separation is useful when several drives share one network segment but do not sit at exactly the same ground potential.
Frequently Asked Questions about DKC05.3-LK-CAN01:
Q: What connector type and standard does the DKC05.3-LK-CAN01 drive controller use?
A: The DKC05.3-LK-CAN01 uses a male D-SUB connector that conforms to the DS102 standard.
Q: Does the DKC05.3-LK-CAN01 offer galvanic isolation?
A: This model features complete galvanic isolation for electrical decoupling.
Q: What CANopen profile version is compatible with the DKC05.3-LK-CAN01?
A: The DKC05.3-LK-CAN01 supports the CANopen DS301 V3.0 profile for communication.
Q: How many diagnostic LEDs does the DKC05.3-LK-CAN01 have?
A: There are 6 diagnostic LEDs built into the DKC05.3-LK-CAN01 drive controller.
Q: What is the maximum process data length supported by the DKC05.3-LK-CAN01?
A: This model provides a maximum process data length of 16 bytes.
