DKC03.3-100-7-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911279431
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
24 Seconds
The Bosch Rexroth Indramat DKC03.3-100-7-FW is part of the DKC Drive Controllers series and has a maximum output current of 100 Amps and a maximum output voltage of 800 Volts. This controller provides a continuous power dissipation of 420 Watts and operates with a DC-bus nominal voltage of 700 Volts. It measures 360 mm in height, 105 mm in width, 261 mm in depth, and weighs 9.7 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

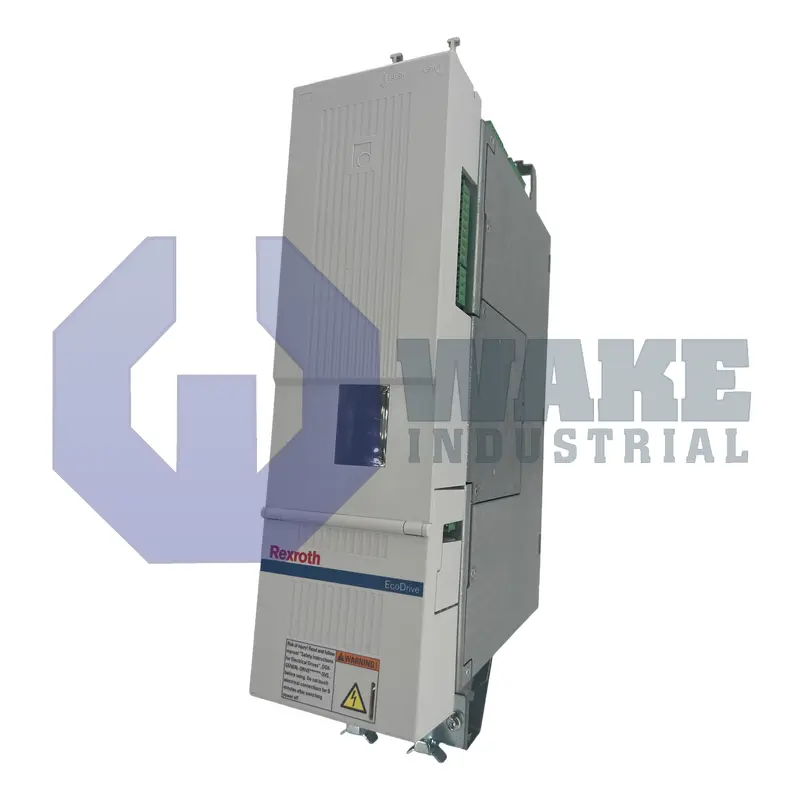

The DKC03.3-100-7-FW is an EcoDrive controller from Bosch Rexroth Indramat in the DKC Drive Controllers series. Developed under design version 3, it converts rectified energy into regulated three-phase output for servo axes in automated equipment, allowing the drive to control motor torque and speed from a centralized command source. The chassis measures 360 mm high, 105 mm wide, and 261 mm deep, which supports panel integration, while interface option 03 links the unit to higher-level motion controllers for coordinated axis commands. A dedicated brake terminal supplies 2 A at 40 V DC so external resistors can absorb regenerated energy during rapid deceleration, which helps manage braking energy when the connected axis slows quickly.
The power section is dimensioned for continuous operation at 100 A across its three phases, so it can support demanding servo loads during steady operation. It is energized from a DC bus held at 700 V, derived from an incoming line that may vary within a ±10% window. Under full modulation, the drive can deliver up to 800 V line-to-line with carrier frequencies reaching 1000 Hz, supporting precise control of high-speed axes and responsive inverter switching. The internal logic and I/O circuits are powered by a 24 V DC supply that draws 26 W when the brake circuit is idle, which keeps the command electronics active during control operation. Thermal losses are limited to 420 W of continuous dissipation, and the unit accepts 40 A of incoming power through its supply connection.
The controller maintains full current output up to 45 °C and can remain in service to 55 °C with load derating, allowing continued operation as cabinet temperature rises. In fault scenarios, the power stage can withstand a prospective short-circuit current of 42,000 A rms, which helps determine upstream fuse or breaker capacity. The aluminum housing weighs 9.7 kg, which supports heat dissipation while keeping the unit manageable during mounting inside a control cabinet. Its metal enclosure also provides a rigid structure for installation beside other drive components.
Frequently Asked Questions about DKC03.3-100-7-FW:
Q: What is the maximum output current provided by the DKC03.3-100-7-FW drive controller?
A: The DKC03.3-100-7-FW drive controller can deliver a maximum output current of 100 A.
Q: What is the DC-bus nominal voltage of the DKC03.3-100-7-FW?
A: This controller operates at a DC-bus nominal voltage of 700 V.
Q: What design version is the DKC03.3-100-7-FW drive controller?
A: The design version for this controller is 3.
Q: What is the maximum ambient temperature for nominal operation of the DKC03.3-100-7-FW?
A: The maximum allowable ambient temperature for nominal operation is 45 °C.
Q: What input voltage tolerance does the DKC03.3-100-7-FW support?
A: This model supports up to a ±10% tolerance on input voltage.
