DKC01.3-012-3-MGP-01VRS Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911299774
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat DKC01.3-012-3-MGP-01VRS is an EcoDrive from the DKC Drive Controllers series. It has a rated current of 12 Amps and a DC-bus nominal voltage of 300 Volts. The controller weighs 1.8 kilograms and can operate at ambient temperatures up to 40°C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

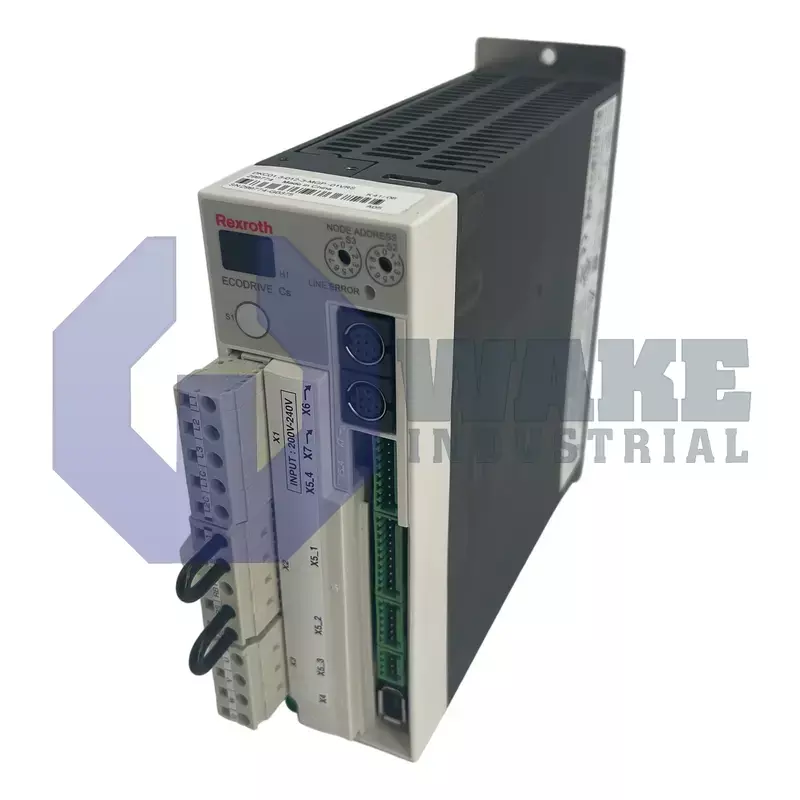

Bosch Rexroth Indramat manufactures the DKC01.3-012-3-MGP-01VRS within the DKC Drive Controllers series. Classified as an EcoDrive, the unit serves as the central power stage between a PLC and compatible servo or induction motors, converting a fixed AC supply into a regulated DC bus and a controlled three-phase output. This arrangement lets the controller regulate motor output in response to commands from the machine control system. By monitoring feedback and load conditions, the controller delivers stable torque while helping protect the motor from overcurrent and overheating. Its compact profile and plug-in option cards allow integration into multi-axis machinery such as pick-and-place modules, gantry axes, and packaging stations.
The drive has a rated continuous output current of 12 A, which allows it to power medium-frame motors in typical automation systems. During startup, the input side draws no more than 2.2 A, which helps limit demand on the upstream supply. A nominal 300 V DC bus feeds the internal intermediate circuit and supports pulse-width modulation of the motor phases. This helps maintain stable switching operation during normal motor control. At full current, the electronics dissipate about 400 W of heat, so forced-air ventilation is usually needed to keep internal temperatures below 40 °C. Proper airflow is important when the drive operates near continuous load for extended periods.
The product is part of design code 3, which indicates the third layout used in this series. The control package is described as multi-interface general-purpose, so the unit can work with analog velocity commands, SERCOS motion profiles, and parallel I/O. Communication flexibility is extended by interface option 01, supporting different control connections in machine applications. With a shipping mass of 1.8 kg, the controller can be mounted in compact cabinets without placing a heavy load on the enclosure structure. Its combination of connection options and low mass suits installations where several axes are grouped in a limited amount of panel space.
Frequently Asked Questions about DKC01.3-012-3-MGP-01VRS:
Q: What is the rated current for the DKC01.3-012-3-MGP-01VRS drive controller?
A: The DKC01.3-012-3-MGP-01VRS drive controller operates with a rated current of 12 A.
Q: What is the DC-bus nominal voltage of the DKC01.3-012-3-MGP-01VRS?
A: This model has a DC-bus nominal voltage of 300 V.
Q: What is the maximum ambient temperature for operating the DKC01.3-012-3-MGP-01VRS?
A: The DKC01.3-012-3-MGP-01VRS can function in environments with ambient temperatures up to 40°C.
Q: What is the maximum input current for the DKC01.3-012-3-MGP-01VRS?
A: This drive controller has a maximum input current specification of 2.2 A.
Q: What is the power dissipation at continuous current for the DKC01.3-012-3-MGP-01VRS?
A: With a power dissipation at continuous current of 400 W, this model is designed for efficient continuous operation.
