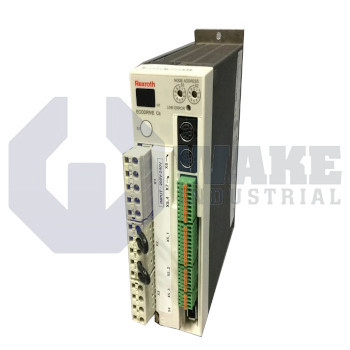

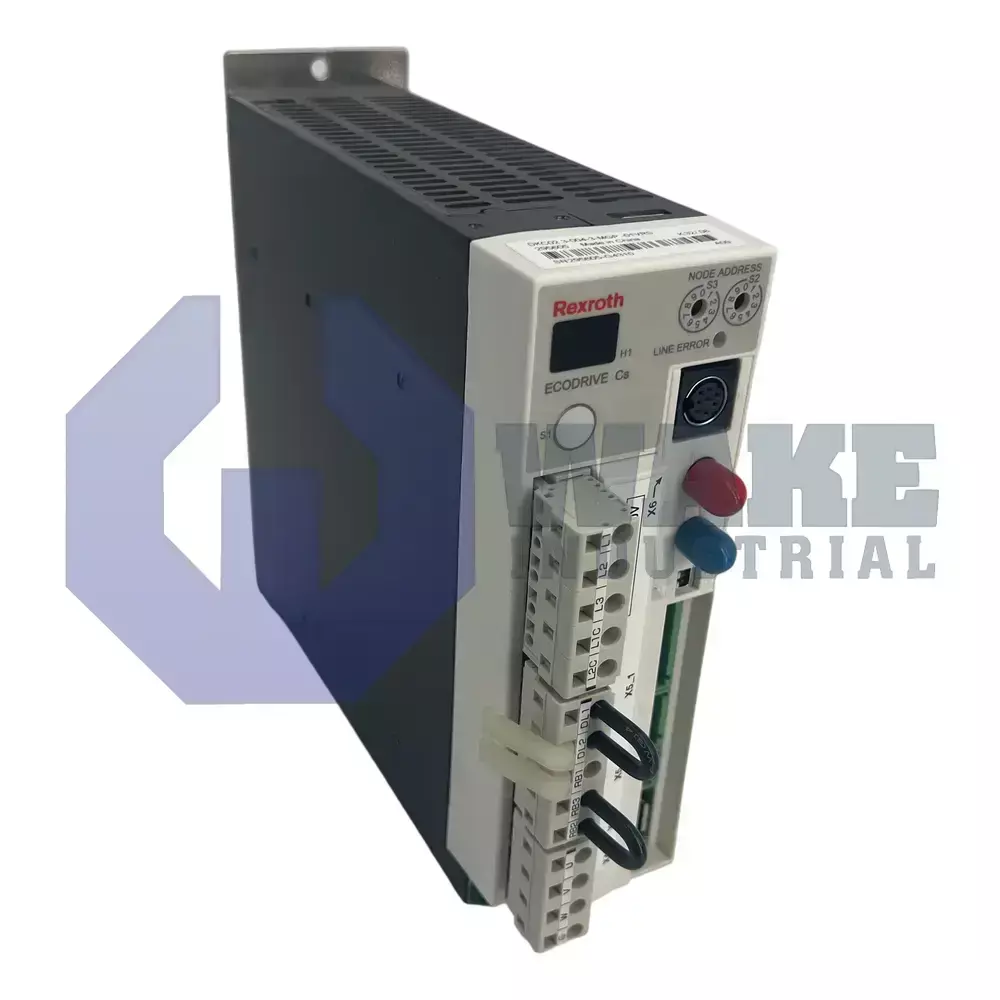

DKC01.3-004-3-MGP-01VRS Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911299772
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat DKC01.3-004-3-MGP-01VRS is part of the DKC Drive Controllers series and is classified as an EcoDrive. It operates with a DC-bus nominal voltage of 300 V, supports a rated current of 4 Amps, and has a maximum input current of 1.1 Amps. The controller weighs 1.8 kg and is designed to function in ambient temperatures up to 40°C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DKC01.3-004-3-MGP-01VRS is a drive controller built by Bosch Rexroth Indramat within the DKC Drive Controllers series. As an axis amplifier, it regulates current and voltage to synchronous or induction motors so motion commands from a higher-level PLC can be translated into controlled torque and speed in automated machinery. By using closed-loop control with field-oriented modulation, the unit supports positioning, indexing, and continuous-speed tasks in material handling, packaging, and general assembly equipment. Its compact format also makes it suitable for control cabinets where several motion axes must be installed within a limited amount of panel space.
The controller delivers a continuous motor current of 4 A, which indicates the steady output it can supply during normal operation. Internally, a DC bus rated at 300 V stores regenerated energy and feeds the output stage, helping the drive maintain stable motor control during changing loads. The maximum input line demand is 1.1 A, which helps reduce stress on upstream supply components and simplifies cabinet power distribution. Thermal losses are limited to 100 W at continuous current, so only moderate heat must be removed from the enclosure during operation. The unit is built in design 3, which identifies its hardware layout within the DKC platform, and interface option 01 adds signal handling for command and diagnostic exchange with the control system.
Classified as an EcoDrive, the unit is intended for efficient servo-axis operation and remains functional at ambient temperatures up to 40 °C without derating. It uses the Multi-interface, general-purpose version, allowing the controller to support a broad range of automation tasks rather than a narrowly specialized application. With a mass of only 1.8 kg, the drive can be mounted on a DIN rail or backplate without requiring heavy support hardware. This low weight helps when arranging compact multi-axis layouts, especially in cabinets where available depth and mounting area are limited.
Frequently Asked Questions about DKC01.3-004-3-MGP-01VRS:
Q: What is the DC-bus nominal voltage for the DKC01.3-004-3-MGP-01VRS drive controller?
A: The DKC01.3-004-3-MGP-01VRS drive controller operates with a DC-bus nominal voltage of 300 V.
Q: What is the maximum input current for the Bosch Rexroth DKC01.3-004-3-MGP-01VRS?
A: This model has a maximum input current rating of 1.1 A.
Q: What is the rated current output of the DKC01.3-004-3-MGP-01VRS drive controller?
A: The DKC01.3-004-3-MGP-01VRS provides a rated current output of 4 A.
Q: What is the maximum ambient temperature allowed for the DKC01.3-004-3-MGP-01VRS?
A: This drive controller is designed for operation at ambient temperatures up to 40°C.
Q: How much power does the DKC01.3-004-3-MGP-01VRS dissipate at continuous current?
A: The power dissipation at continuous current for this model is 100 W.
