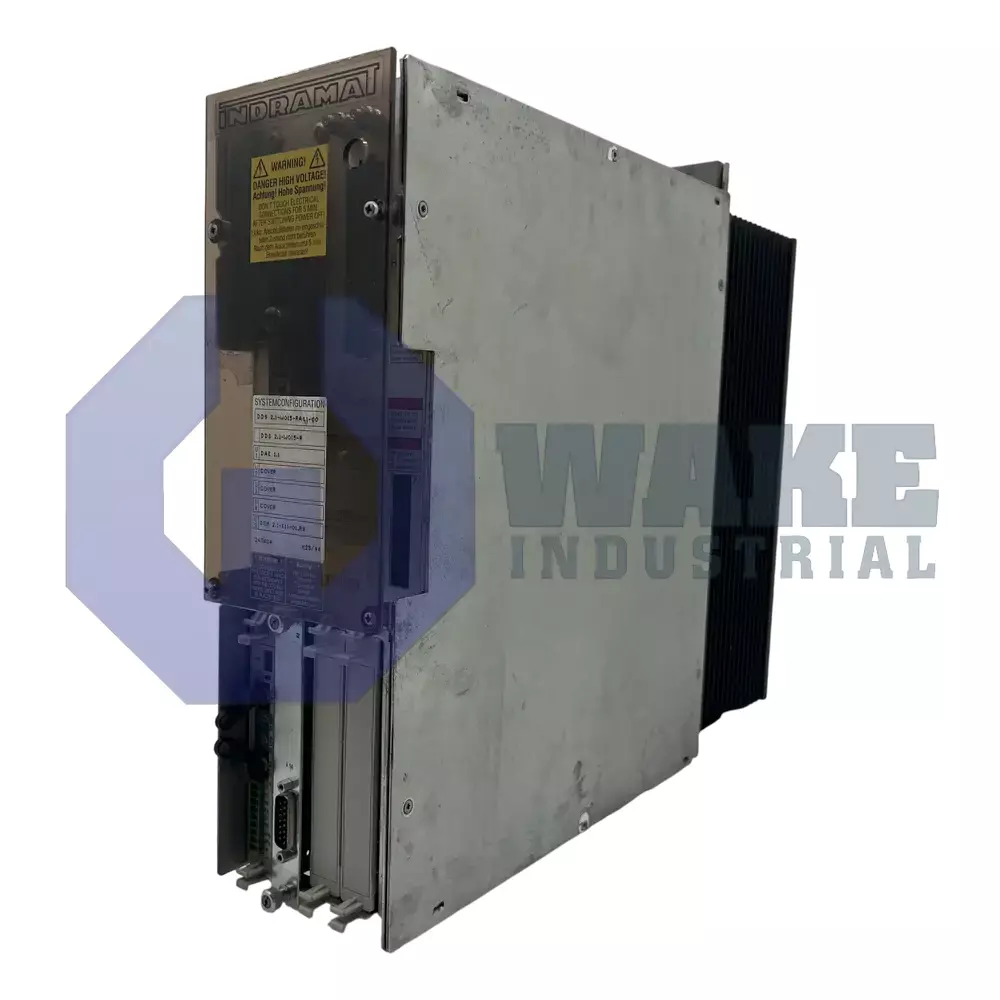

DDS02.1-W050-RS16-01

  • Rated 4.5 (36 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911260993
    In-Stock, Ships 3-5 Days

The DDS02.1-W050-RS16-01 is a panel-mounted drive controller with an input voltage ranging from 300 to 500 VDC. Manufactured by Bosch Rexroth Indramat, it belongs to the DDS Drive Controllers Series and supports Indramat AC Servo motors. The unit features internal air cooling and delivers a continuous output current of 50 A.

Preparing your secure checkout page...

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The DDS02.1-W050-RS16-01 drive controller uses various installed software to interact with motors and machines for accurate control. It is made by Bosch and is flexible to perform multiple industrial sector activities with different procedures without complexity.

This DDS02.1-W050-RS16-01 drive controller comes with version 2.1 and employs a modular nature of its hardware that enables it to be flexible in its usage in various tasks. The current rating required is fixed at 50 Amperes which makes it suitable for driving motors that have a medium or high torque duty in diverse industries. The present processing makes it suitable to be compatible with continuous-use servo motors without thermal load subjected to regulated environmental industrial automation domains. It uses the resolver-based system and is usually utilized where durability and immunity to noise are needed such as in modulated position data during an electrically noisy environment. The working of this kind of encoder is that it sends signals of sine and cosines that are read as rotor position and they are useful in situations where precision control is needed. The SERCOS-based communication interface is set up with a 16-bit wide. It allows the digital link between the drive and the controller to be performed in real-time with low delay.

The DDS02.1-W050-RS16-01 drive controller works in an optical fiber loop and cannot easily get interfered with electrical effects. It is cooled internally on the inside of the control cabinet. This type of heat removal is not dependent on a through-air heat transfer thus keeping the cabinets cleaner in both sealed and unsealed systems. It can also be deployed in areas of heavy moisture in the production plants of relative humidity of up to 95% and will still not be internally degraded.

  • DDS021W050RS1601
  • DDS02 1 W050 RS16 01
  • dds02.1-w050-rs16-01
  • DDS2.1-W050-RS16-01

DDS02.1-W050-RS16-01 Technical Specifications

Rated Current: 50 A
Design: 1 (first version)
Cooling Type: Air, internal
Mounting: Panel mounting
Firmware Supported: FM 01
Cooling Mode: Internal (air cooling)
Communication Interface: SERCOS
Supported Motors: Indramat AC Servo motors
Input Voltage: DC bus, typically 300-500 VDC
Continuous Output Current: 50 A
Maximum Output Current: 50 A
Series Type: 02

Frequently Asked Questions about DDS02.1-W050-RS16-01


Q: Which feedback system is used in the DDS02.1-W050-RS16-01?

A: The DDS02.1-W050-RS16-01 utilizes a resolver feedback system. This ensures accurate motor position sensing in harsh or noisy industrial environments.

Q: What communication interface is integrated in the DDS02.1-W050-RS16-01 unit?

A: The unit features a 16-bit SERCOS interface. This fiber-optic connection allows fast and secure data exchange with the controller.

Q: What cooling method is used in the DDS02.1-W050-RS16-01?

A: The drive uses internal cabinet cooling. This avoids external airflow dependency and keeps heat contained within sealed systems.

Q: Can DDS02.1-W050-RS16-01 operate in high humidity conditions?

A: Yes, the DDS02.1-W050-RS16-01 operates effectively up to 95% humidity. It is suitable for damp industrial environments without failure.

Q: Is the software module in DDS02.1-W050-RS16-01 replaceable?

A: Yes, the U5 slot carries a detachable software module. It holds firmware and can be swapped for replication or updates.

Internal Product Review

  • ‘‘The drive controller DDS02.1-W050-RS16-01 by the Bosch Rexroth from the DDS2.1 series offers stable 50 A current output and uses resolver-based feedback. Its SERCOS interface enables seamless integration with automated control systems. With internal cabinet cooling, it remains effective even in high humidity industrial settings.’’
