DDS02.1-W025-DL20-01-FW

  • Rated 4.5 (26 total ratings)
  • MPN: R911266566
  • Call for Expedited Shipping and Product Condition Options

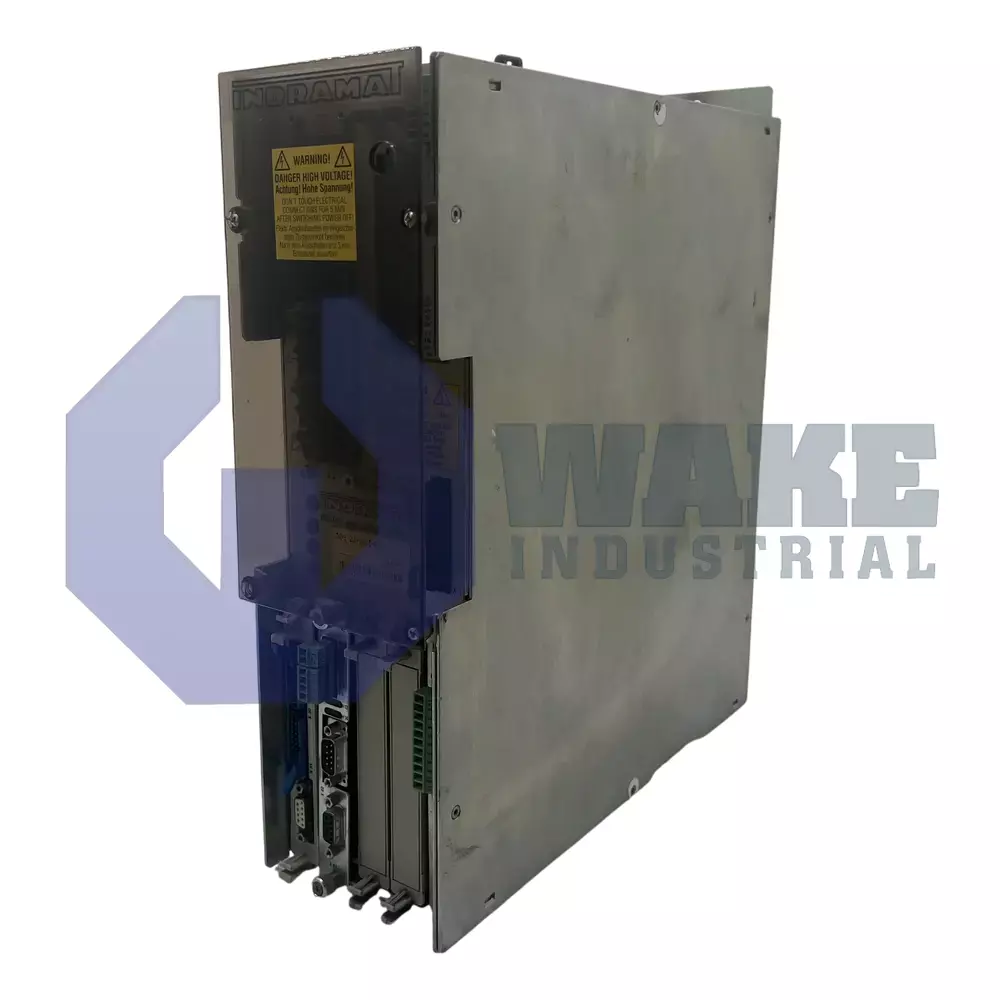

The DDS02.1-W025-DL20-01-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 25 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

DDS02.1-W025-DL20-01-FW

  • Rated 4.5 (26 total ratings)
  • MPN: R911266566
  • Call for Expedited Shipping and Product Condition Options
The DDS02.1-W025-DL20-01-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 25 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a DDS02.1-W025-DL20-01-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The DDS02.1-W025-DL20-01-FW is a 25 Amps rated DDS drive from Bosch Rexroth. The drive requires regulated 24 Volts DC input. DDS drives are compatible with Bosch motors that belong to the MDD, MKD, LAR and LAF product lines. The drive unit and its power supply are designed for mounting in a control cabinet that meets the required protection requirements. The drive controller is designed for vertical mounting. Bosch recommends providing 80 millimeters of free space above and below the mounted controller for ventilation. Bosch also recommends providing 40 millimeters of free space in front of the mounted drive. The ambient temperature range for operation is 0 to 40 degrees Celsius. The native protection category of the drive housing is IP20. Weight of the DDS02.1-W025-DL20-01-FW is approximately 7.5 kilograms. The dimensions of the drive are approximately 355 x 60 x 325 millimeters.

The DC bus voltage is 300 Volts DC. The DDS02.1-W025-DL20-01-FW dissipates heat within the control cabinet. Therefore a large cabinet and air conditioning may be required. The command and communication module installed on the DDS02.1-W025-DL20-01-FW is single-axis position control. The DDS02.1-W025-DL20-01-FW drive supports digital servo feedback. A few of the plug in modules than can be installed on DDS drive include SERCOS interface, analog interface with incremental encoder emulator, analog interface with absolute encode emulator, Interbus S slave module, Interbus S slave interface, command card, ARCNET coupler card, incremental position interface, high resolution position interface, input/output interface, summing input interface and gearwheel encoder interface. A configuration rating plate is provided on the DDS02.1-W025-DL20-01-FW drive and lists the type configurations of the drive controller, the basic unit, software module and plug in modules. These type designations can be used to determine the proper slots for the different modules.

DDS02.1-W025-DL20-01-FW Documents

  • DDS021W025DL2001FW
  • DDS02 1 W025 DL20 01 FW
  • dds02.1-w025-dl20-01-fw

DDS02.1-W025-DL20-01-FW Technical Specifications

Cooling: Internal Cooling
Motor Feedback: Digital Servo Feedback
Rated Current: 25 A
