DDS02.1-A100-DS23-02

  • Rated 4.3 (26 total ratings)
  • MPN: R911264141
  • Call for Expedited Shipping and Product Condition Options

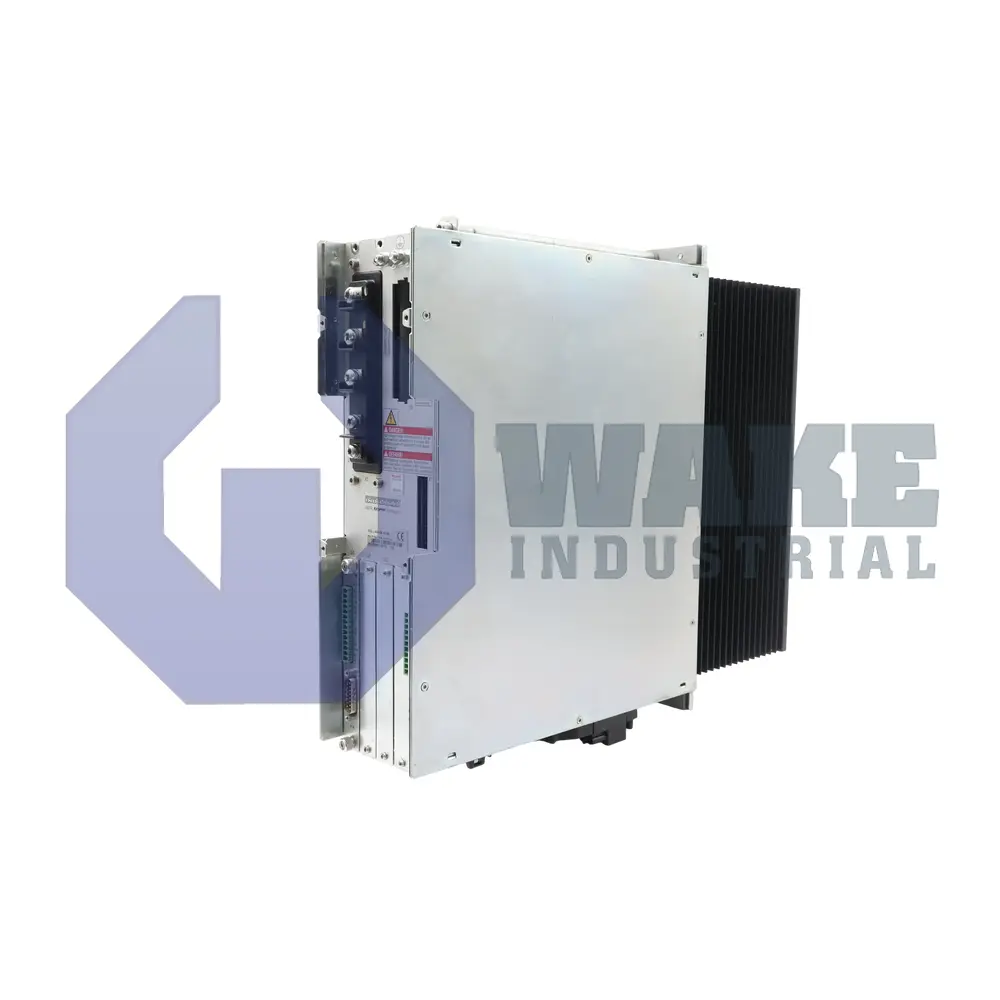

The DDS02.1-A100-DS23-02 Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with External Cooling, 100 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

DDS02.1-A100-DS23-02

  • Rated 4.3 (26 total ratings)
  • MPN: R911264141
  • Call for Expedited Shipping and Product Condition Options
The DDS02.1-A100-DS23-02 Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with External Cooling, 100 A rated current, and Digital Servo Feedback.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a DDS02.1-A100-DS23-02 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The DDS02.1-A100-DS23-02 drive system is a drive controller designed by the Rexroth Indramat according to the international quality standard. This controller features a basic unit that is adapted to different operation requirements and allows the controller to control synchronous and induction-type motors efficiently. This drive controller is configured to provide highly reliable performance in terms of the desired function. The DDS02.1-A100-DS23-02 drive system is highly efficient; it contains numerous sensors which it uses independently to detect operational errors.

The DDS02.1-A100-DS23-02 servo drive system is rated with 100 Amperes of current. It generates 24 volts when connected to a direct current supply. It consumes a current of about 1100 milliAmpere, which it uses to control the position of a servo motor. The interface type of this controller is a serial real-time communication system that coordinates collision-free communication using a time slot mechanism, a highly efficient communication protocol, and an extremely low telegram jitter specified at less than 1 microsecond. The SERCOS interface of this controller also operates a highly developed standardized profile, agreed upon by multi-vendor technical working groups for dependable interoperability of different ranges of motors.

The DDS02.1-A100-DS23-02 drive controller is a digital drive system that uses the programmable logic controller for complex interlocking and sequencing of various operations of the drive system under normal, fault, and emergency condition. The interlocking protects the system against abnormal and unsafe operations. The sequencing protects the various drive operations, such as starting, braking, reversing, jogging, and so on, which are carried out in a pre-planned sequence. The maximum permissible temperature for the operation of this device falls between  0 to 45 degrees Celsius.

DDS02.1-A100-DS23-02 Documents

  • DDS021A100DS2302
  • DDS02 1 A100 DS23 02
  • dds02.1-a100-ds23-02

DDS02.1-A100-DS23-02 Technical Specifications

Cooling: External Cooling
Motor Feedback: Digital Servo Feedback
Rated Current: 100 A
