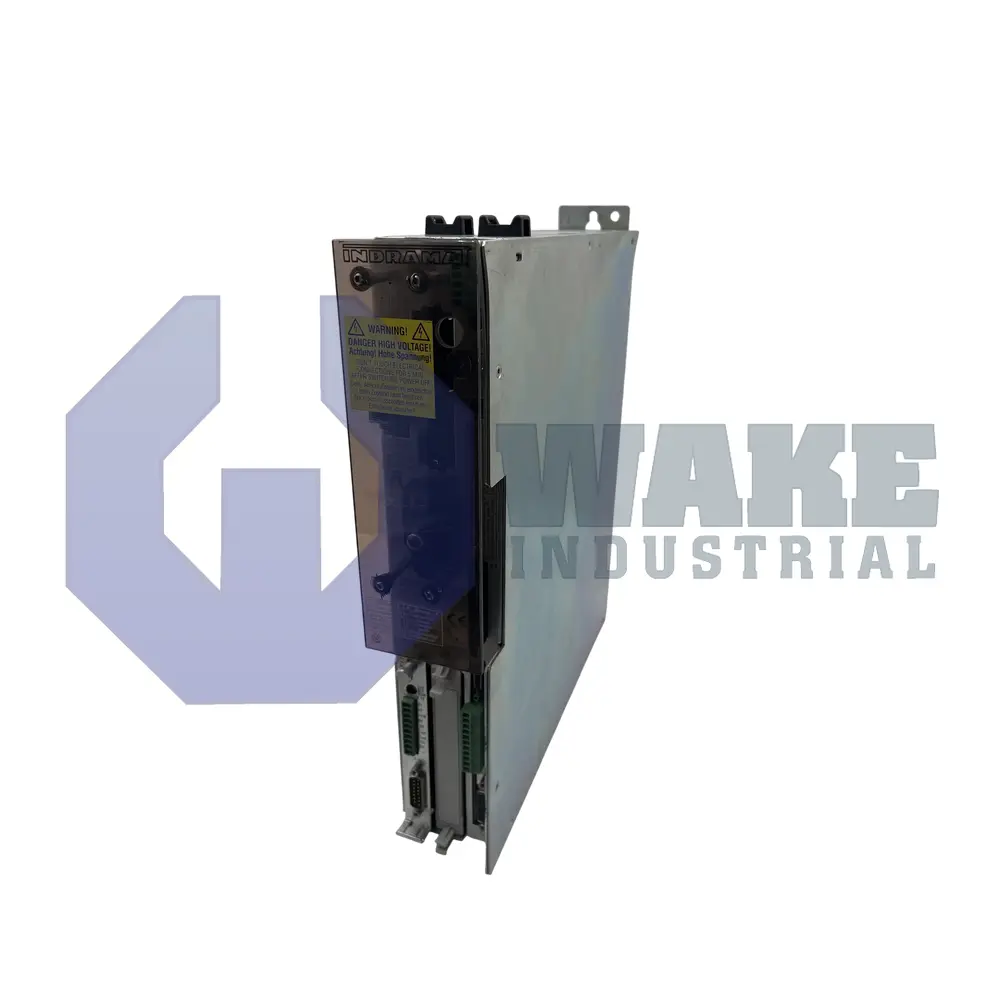

DDS03.1-W030-RS17-01 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911268400
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
51 Seconds
The Bosch Rexroth Indramat DDS03.1-W030-RS17-01 is a digital AC servo drive controller from the DDS Drive Controllers series. It features a SERCOS communication interface and is designed for installation elevations up to 1000 meters. This controller uses internal air cooling and provides resolver motor feedback, with an IP20 protection rating and a rated current of 30 Amps.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DDS03.1-W030-RS17-01 belongs to the DDS Drive Controllers series from Bosch Rexroth Indramat. As a digital AC servo drive controller, it converts motion commands into regulated phase currents that synchronize a connected motor with system demand. This allows the controller to support precise torque, speed, and position control in automated assembly, packaging, and handling equipment. In a machine cabinet, it acts as the interface between the control system and the motor power stage, helping the axis follow commanded motion profiles during acceleration, steady running, and deceleration.
The controller delivers a continuous output of 30 A, which is the continuous current available for torque production under rated thermal conditions. Communication with the higher-level PLC is handled over the SERCOS interface, providing deterministic cycle times and standardized parameter exchange. Thermal management relies on air from inside the control cabinet, so the enclosure must provide enough airflow to remove internally generated heat. The housing meets IP20, which provides finger-safe access but no protection against water ingress. Reliable operation is permitted in ambient temperatures from 0 to 45 °C; outside this range, the drive may derate or shut down to protect its power electronics.
Position feedback is processed through a resolver feedback channel, allowing rotor angle detection for closed-loop motor control. Installation is permitted at elevations up to 1000 m above sea level without adjustment to the stated ratings. When the machine is idle, storage temperatures from -30 to 85 °C help prevent damage during transport or warehousing. The unit carries Function ID Version 01 and is part of Line 03 with Version 1, which identifies the assigned product generation for this controller type.
Frequently Asked Questions about DDS03.1-W030-RS17-01:
Q: What communication interface does the DDS03.1-W030-RS17-01 controller use?
A: The DDS03.1-W030-RS17-01 uses a SERCOS interface for communication.
Q: How is the DDS03.1-W030-RS17-01 cooled during operation?
A: This drive controller has a cooling method that relies on air from inside the control cabinet.
Q: What is the rated current of the DDS03.1-W030-RS17-01 drive controller?
A: The rated current for this model is 30A.
Q: What operating temperature range does the DDS03.1-W030-RS17-01 support?
A: The operating temperature range for this unit is 0 to 45ºC.
Q: What type of motor feedback does the DDS03.1-W030-RS17-01 utilize?
A: The motor feedback for this servo drive controller is resolver feedback.
