Product Description:

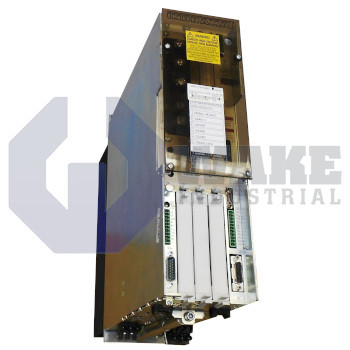

The DDS02.2-W200-BE13-01-FW is a digital AC servo drive controller produced by Bosch Rexroth Indramat as part of the DDS Drive Controllers series. In automated production cells, the device supplies controlled three-phase power to servo motors so that positioning and speed profiles programmed in the host PLC are followed precisely. The controller mounts on the power rail inside a cabinet and forms a modular axis with matching motor and feedback cables. Its modular format lets the drive share a common cabinet structure with neighboring axes while keeping power and control sections organized. This arrangement supports compact multi-axis installations in packaging lines, material handling stations, and machining centers. This layout helps preserve orderly cable routing in dense machine designs.

The drive can deliver a continuous output of 200 A, giving it headroom for motors that require high peak torque during acceleration or braking. Command and diagnostic data travel over the SERCOS interface, a fiber-optic network that supports precise synchronization between axes. Thermal energy is removed by internal air cooling, so the enclosure must provide adequate airflow to maintain safe component temperatures. The housing has an IP20 rating, which helps prevent accidental finger contact while the cabinet provides protection from dust and liquids. For position control, it accepts digital servo feedback and resolver feedback, allowing the same controller to operate with motors equipped with high-resolution encoders or resolvers without additional interface cards.

The unit operates in ambient temperatures from 0 to 45 °C and can be stored at -30 to 85 °C when powered down. Installation is approved up to 1000 m above sea level without derating. The controller uses Function ID version 01. It is part of Line 02 and hardware Version 2. These limits fit typical indoor industrial installations with controlled cabinet conditions during operation.
