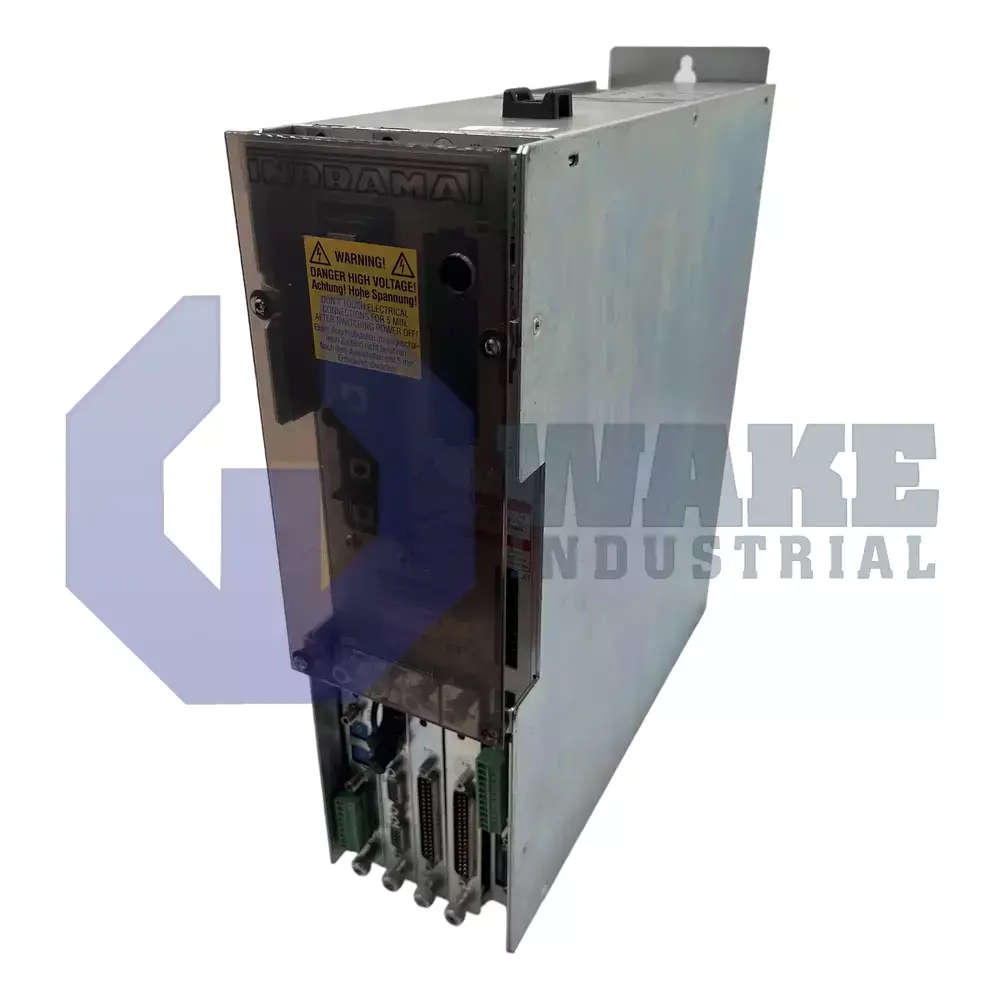

DDS02.2-W100-BE95-02-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911275022
The Bosch Rexroth Indramat DDS02.2-W100-BE95-02-FW is a digital AC servo drive controller with a rated current of 100 Amps. Part of the DDS Drive Controllers series, it features SERCOS communication interface and supports both digital servo and resolver feedback. Cooling is provided by air from inside the control cabinet.
Internal Product Review
The DDS02.2-W100-BE95-02-FW digital AC servo drive controller from Bosch Rexroth Indramat delivers precise motor control with a rated current of 100A and supports both digital servo and resolver feedback. Its SERCOS interface enables seamless integration into advanced automation networks. Internal air cooling is effective for maintaining stable operation within control cabinets, making this model a dependable choice for demanding servo applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DDS02.2-W100-BE95-02-FW is a drive controller manufactured by Bosch Rexroth Indramat and assigned to the DDS Drive Controllers series. Within automated assembly cells, packaging machines, and material-handling axes, the unit supplies regulated power and closed-loop motion control to connected synchronous or induction servomotors. It installs in a multi-axis rack, where it links the motion processor to the motor windings and exchanges operating data with higher-level PLCs. Its role is to convert cabinet power into controlled motor current so coordinated axis movement can be maintained during speed and positioning tasks.
The command channel relies on the SERCOS interface, permitting fiber-optic communication with deterministic cycle timing and good resistance to electrical noise. Continuous load support is provided by a rated output current of 100 A, so matched motors can accelerate demanding axes without immediate current derating. Thermal energy is removed by internal air cooling, which uses air from inside the control cabinet and requires adequate enclosure airflow. Position and velocity are monitored through digital servo feedback and resolver feedback, allowing the controller to process either motor feedback format. Bosch Rexroth classifies the unit as a Digital AC Servo Drive Controller, meaning power conversion and control functions are handled electronically rather than through analog circuitry. This combination supports precise motor regulation across a wide range of industrial motion applications.
Within the DDS platform, the product belongs to Line 02 and carries Version 2. These identifiers distinguish the release used for this controller and separate it from other members of the same platform. The unit shares the rack format used across the family, so it can operate beside adjacent axes on a common DC bus and a shared fiber-optic loop. This arrangement supports compact cabinet layouts and keeps axis communication organized inside the drive system. The matching mechanical format also allows the controller to sit alongside neighboring modules without requiring special adapters or unusual panel spacing.
