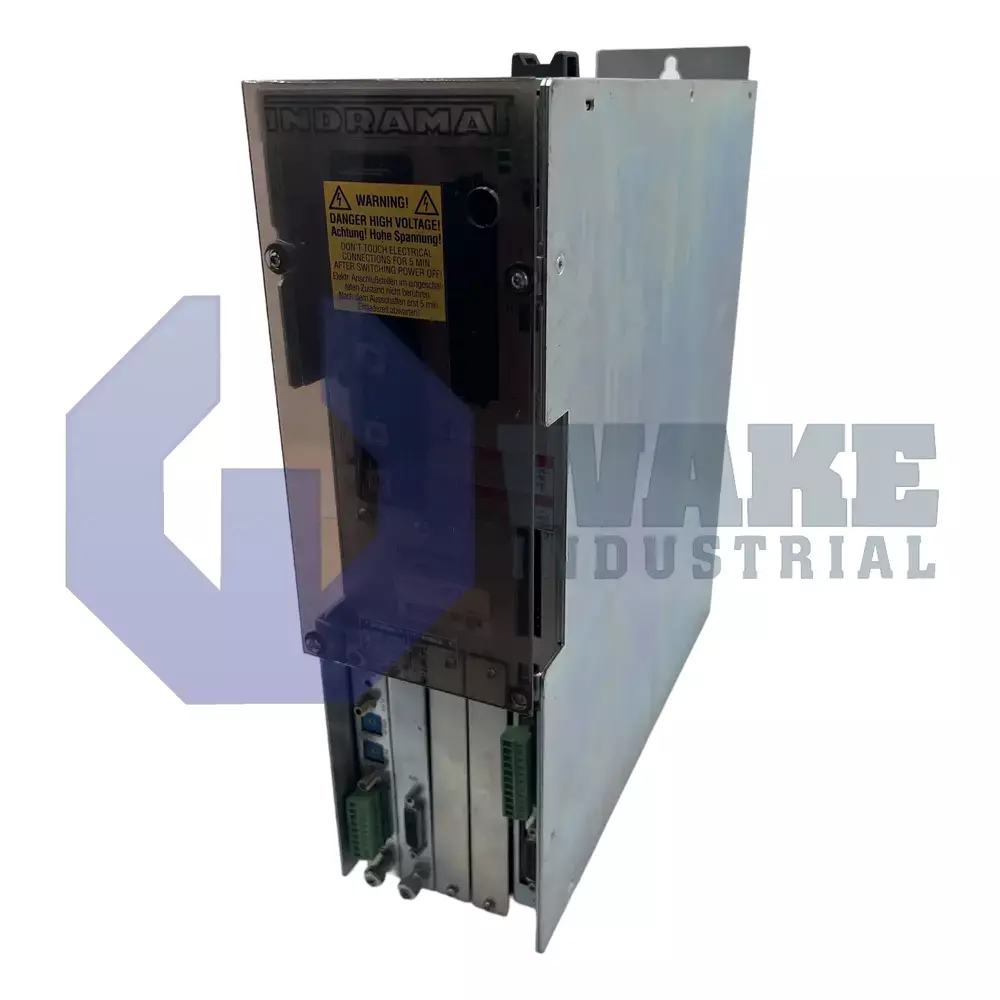

DDS02.2-W100-BE32-00 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911264351
The Bosch Rexroth Indramat DDS02.2-W100-BE32-00 is a digital AC servo drive controller from the DDS Drive Controllers series and is rated for 100 Amps. It features a SERCOS interface for communication and uses both digital servo and resolver feedback. This unit operates with air cooling within the control cabinet and has an IP20 protection category.
Internal Product Review
The DDS02.2-W100-BE32-00 is a digital AC servo drive controller rated for 100 A, offering impressive current capacity for servo axis control. Support for digital servo and resolver feedback, together with internal cabinet air cooling, makes integration and thermal management especially effective. IP20 protection and a 0 to 45 °C operating range make this controller a strong choice for dependable cabinet-mounted servo control.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DDS02.2-W100-BE32-00 is a digital AC servo drive controller built by Bosch Rexroth Indramat for the DDS Drive Controllers series. It converts command data into regulated three-phase power so a connected servo motor accelerates, decelerates, and holds position exactly as programmed. Installed inside a control cabinet, the drive supports coordinated multi-axis motion required in automated printing presses, pick-and-place gantries, and other machinery that depend on repeatable positioning.
Data exchange takes place over the SERCOS interface, meaning cycle-synchronous communication and standard telegram formats are available for drive setup and diagnostics. The power section can supply up to 100 A of continuous output current, allowing the controller to operate medium-to-large-frame motors without saturation. Its housing carries an IP20 protection category, so edges and terminations are finger-safe but the assembly must stay inside an enclosure for particulate shielding. Heat is removed by internal air from inside the control cabinet, so cooling depends on the cabinet ventilation path rather than outside air flowing across the electronics. The allowed ambient working range is 0 to 45 °C, supporting full-rate operation in typical factory environments without additional cooling devices.
Installation is limited to altitudes up to 1000 m above sea level, because lower air density can reduce heat transfer at higher elevations. For position verification, the controller can process digital servo feedback as well as resolver feedback, allowing one hardware type to support either high-resolution encoders or rugged transformer-based sensors. During storage or shipment, the electronics can withstand temperatures from -30 to 85 °C, helping prevent damage from seasonal temperature extremes before the unit is powered for operation.
