Product Description:

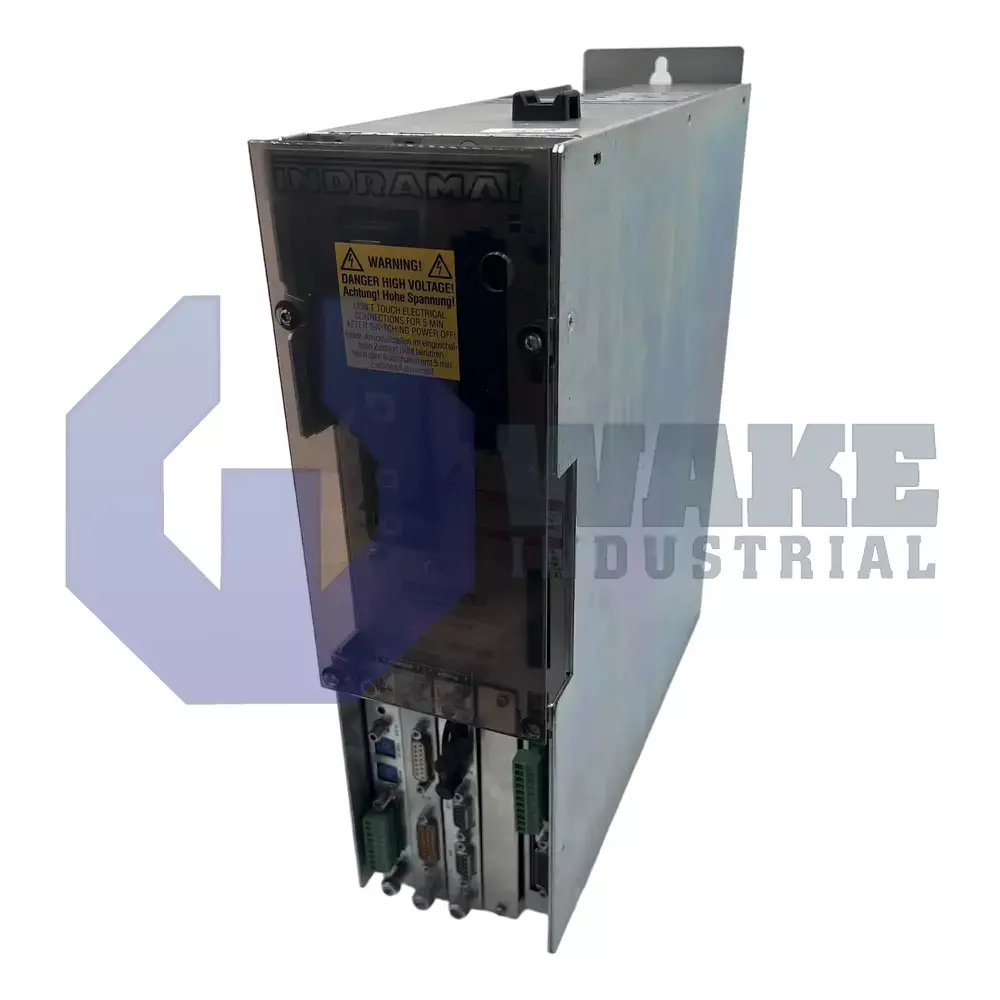

The DDS02.2-W100-BE16-01-FW is a digital AC servo drive controller built by Bosch Rexroth Indramat for the DDS Drive Controllers series. This unit provides closed-loop torque and velocity regulation for synchronous and induction motors used in industrial automation cells, material-handling axes, packaging machines, and other coordinated motion systems. By combining power electronics with communication and feedback interfaces, the controller links a motion command source to the servo motor, supplying controlled three-phase output while monitoring real-time position data from the connected motor. The modular format lets it mount on a shared supply rail inside multi-axis cabinets, which helps keep related control hardware in a compact arrangement.

The controller is rated for 100 A continuous output current, so cabinet wiring, switchgear, and motor cabling must be sized for that load. Its housing carries an IP20 protection category, indicating finger-safe openings and no dedicated dust sealing, so it is intended for installation in a closed electrical enclosure rather than on exposed machine surfaces. Heat produced by the IGBT bridge is removed through internal air cooling, meaning cabinet airflow must pass across the heat sink to maintain allowable temperatures during operation. Command and parameter data reach the unit on a SERCOS interface, permitting deterministic fiber-optic networking with master CNC or PLC equipment. Reliable operation is permitted within an ambient range of 0–45 °C, which matches typical control cabinet conditions without additional derating.

Outside normal operating hours, the electronics withstand storage temperatures from -30–85 °C, allowing standard warehouse storage and common transit conditions. Installation altitude is limited to 1000 m, because reduced air density can lower cooling performance above that level. The control loop accepts motor position signals through digital servo feedback and resolver feedback, letting the drive work with a broad range of encoder technologies without external converters. The unit belongs to Line 02 and uses Function ID version 01, matching the intended SERCOS control configuration for this controller family.
