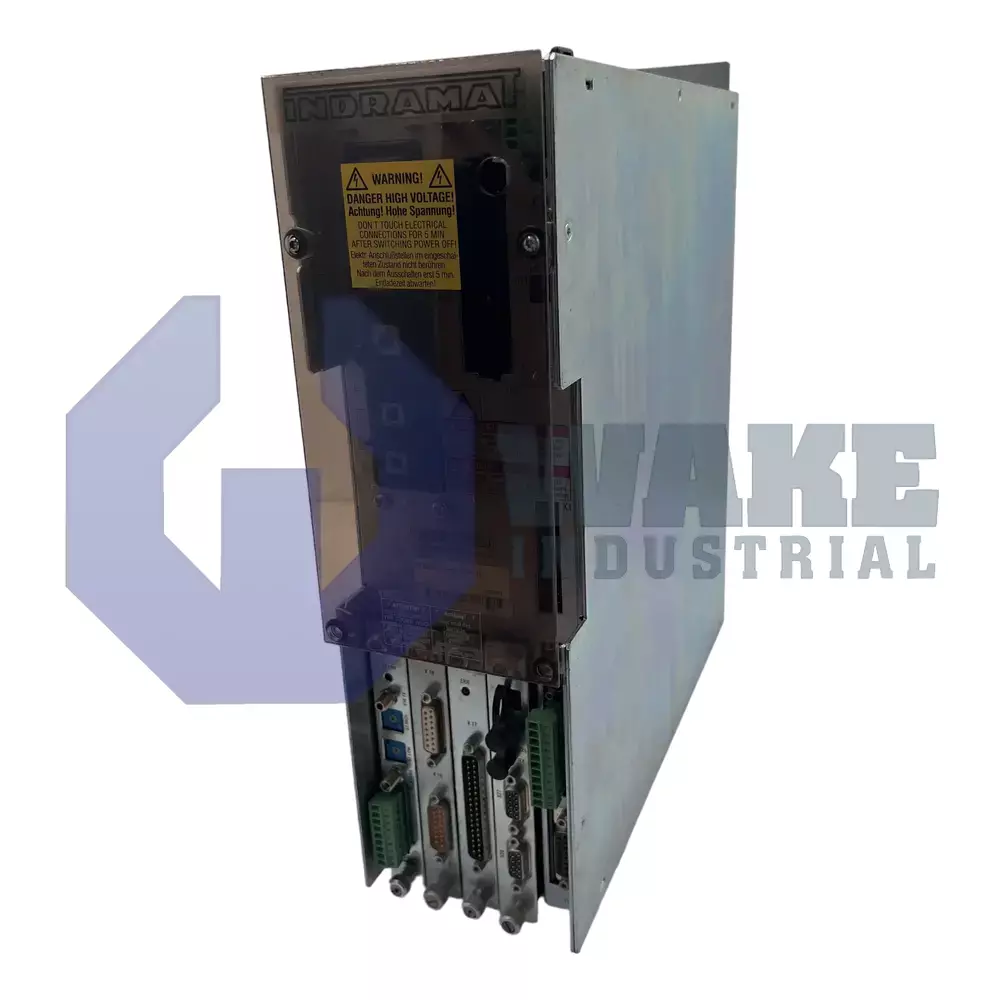

DDS02.2-W100-BE11-01 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911264895
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
9 Seconds
The Bosch Rexroth Indramat DDS02.2-W100-BE11-01 is a digital AC servo drive controller and belongs to the DDS Drive Controllers series. It has a rated current of 100 Amps and features a SERCOS communication interface. The drive uses internal air cooling and supports both digital servo feedback and resolver feedback.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DDS02.2-W100-BE11-01 is a modular drive controller produced by Bosch Rexroth Indramat and assigned to the DDS Drive Controllers series. Mounted inside a control cabinet, the unit forms part of a multi-axis drive stack where it converts DC bus power into regulated three-phase output for synchronous or induction motors. This arrangement allows several axes to operate from a shared power platform while keeping the control stages grouped in a compact layout. Within industrial automation lines, it handles speed, torque, and position control duties so that connected machinery can follow programmed motion profiles with repeatable accuracy.
At the power stage, the controller carries a continuous phase current of 100 A, which is the maximum motor current it can sustain without thermal derating. Command data and setpoints reach the device over a SERCOS interface, so fiber-optic data telegrams synchronize drive motion with the higher-level PLC at deterministic cycle times. Heat produced by the power electronics is removed by internal air cooling, meaning cabinet air is pulled through the integrated heat sink rather than requiring an external blower. Because cooling air moves through the unit, the cabinet layout must leave a clear airflow path around the heat-dissipating surfaces. For rotor position, it evaluates digital servo feedback, delivering high-resolution data for the velocity and position loops. The unit is part of line 02, so it matches the pinout used by related 2-series supply and communication modules.
The unit is classified as a Digital AC servo drive controller and uses the 01 function ID version for its assigned control profile. When the connected motor uses resolver feedback, the controller can process the sine-cosine signals directly without external converters. This allows the same control platform to work with different motor feedback types without adding separate interface hardware. The product is Version 2, and this revision supports the diagnostic and operating functions assigned to this model.
Frequently Asked Questions about DDS02.2-W100-BE11-01:
Q: What communication interface does the DDS02.2-W100-BE11-01 drive support?
A: The DDS02.2-W100-BE11-01 is equipped with a SERCOS communication interface for digitally networked automation.
Q: What types of motor feedback are available on the DDS02.2-W100-BE11-01?
A: This model offers both digital servo feedback and resolver feedback for motor control.
Q: How is the DDS02.2-W100-BE11-01 cooled during operation?
A: The cooling method for this drive uses air circulation from inside the control cabinet, ensuring operational temperature is managed internally.
Q: What is the rated current of the DDS02.2-W100-BE11-01 drive?
A: The DDS02.2-W100-BE11-01 is rated for a current of 100A.
Q: Which version does the DDS02.2-W100-BE11-01 belong to within its series?
A: This device is classified as Version 2 in the DDS Drive Controllers series.
