Product Description:

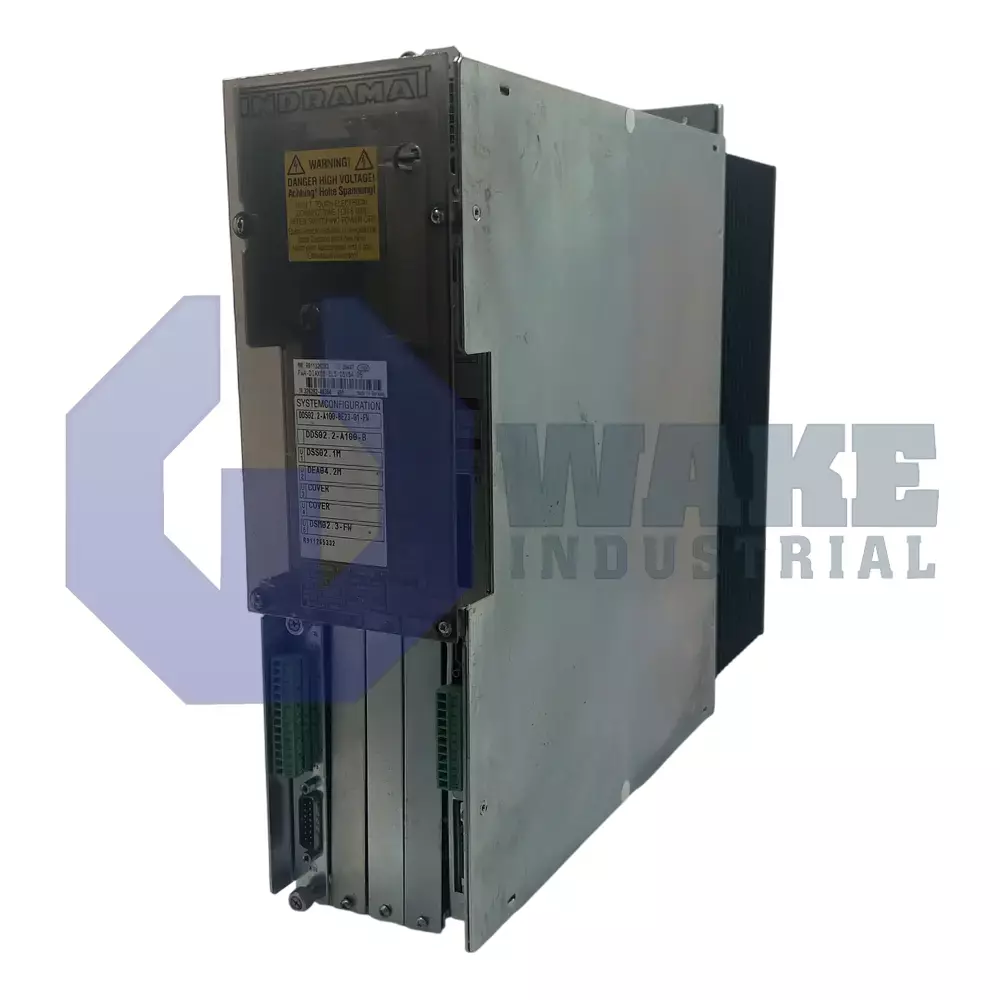

The DDS02.2-A200-BA01-01-FW belongs to the DDS Drive Controllers series manufactured by Bosch Rexroth Indramat. It is a digital AC servo drive controller that governs torque, velocity, and position loops for synchronous and induction motors used on automated machining centers, material-handling modules, and printing lines. Within the series naming scheme, it sits in line 02, uses the BA01 configuration, and carries function ID 01 with version 01, so it fits rack-based drive systems that require a consistent control format across multiple axes.

The controller delivers a continuous output of 200 A, so the connected power supply and motor cabling must be sized for that load. A protection rating of IP20 limits installation to enclosed cabinets where contact with internal parts and larger solid objects is controlled. Acceptable ambient operation spans 0 to 45 °C, and the unit can run within that range without output correction. Cooling air moves through the heat sink by external air from outside the control cabinet, so the cabinet interior is not used as the primary cooling path. Command signals and setpoints enter through an analog interface, which supports direct connection to legacy PLC analog outputs when a fieldbus is not used.

When equipment is idle or stored, components tolerate temperatures between -30 to 85 °C, allowing the drive to withstand normal transport and warehouse conditions. Installation is permitted up to 1000 m above sea level without performance correction, which covers most factory locations. For motor feedback, the drive processes digital servo feedback and resolver feedback, so it can operate with either encoder-based or resolver-based motor systems on the same power stage. This gives the controller flexibility for both precise positioning duties and general speed-controlled applications. The unit is built as Version 2, indicating the second product version for this drive type.
