The Bosch Rexroth Indramat DDS02.2-A200-B is a digital AC servo drive controller that is part of the DDS Drive Controllers series. It supports a rated current of 200 Amps and digital servo as well as resolver feedback. The controller features IP20 protection, operates in temperatures from 0 to 45 degrees Celsius, and uses external air cooling.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

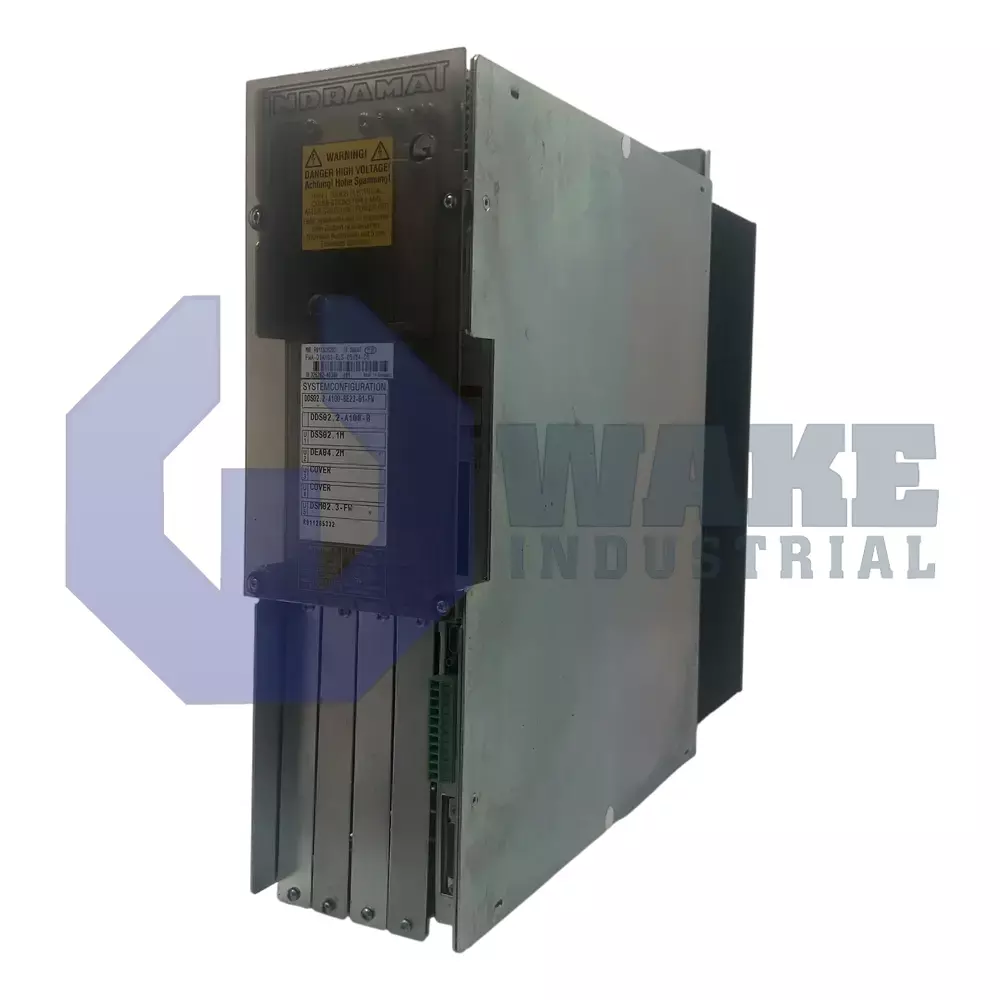

The DDS02.2-A200-B is a digital AC servo drive controller produced by Bosch Rexroth Indramat and assigned to the DDS Drive Controllers series. It accepts control words from CNC or PLC hardware and modulates three-phase power so connected servomotors generate commanded torque and speed. By translating low-level motion profiles into regulated current, the unit supports precise axis positioning in automated packaging lines, printing presses, and machining centers. In multi-axis machinery, it serves as the electrical interface between the machine controller and the motor, helping the axis respond accurately during acceleration, deceleration, and steady running.
The drive is rated for 200 A continuous output, which is the maximum phase current the power stage can deliver without derating. Thermal regulation is handled through external air cooling, meaning ambient air from outside the enclosure passes across the heat sink to remove dissipated losses. This arrangement keeps the main heat path separate from the cabinet interior when ducting is installed correctly. Because the enclosure has an IP20 rating, the controller is intended for installation inside a closed cabinet where accidental contact with internal live parts is limited. Feedback versatility is provided through digital servo feedback and resolver feedback, allowing the controller to work with either sensor type. The unit operates within an ambient temperature range of 0 – 45 °C, so stable panel airflow is important in warmer operating areas.
The controller maintains full performance up to 1000 m above sea level, and operation above that height may require cooling adjustments because thinner air removes less heat. When powered down, it withstands storage or transit temperatures from -30 – 85 °C without damage to internal components. This storage range covers typical warehouse and transport conditions while the unit is not energized. In the DDS product structure, it belongs to Line 02 and this unit is Version 2. These identifiers distinguish the revision level used for this controller within the DDS range.
Frequently Asked Questions about DDS02.2-A200-B:
Q: What is the cooling method used for the DDS02.2-A200-B drive controller?
A: The DDS02.2-A200-B is equipped with air cooling, where air flows from outside the control cabinet (external cooling).
Q: What type of motor feedback does the DDS02.2-A200-B support?
A: This unit supports both digital servo feedback and resolver feedback for motor position sensing.
Q: What is the rated current of the DDS02.2-A200-B?
A: The rated current for the DDS02.2-A200-B drive controller is 200A.
Q: What is the operating temperature range for the DDS02.2-A200-B drive controller?
A: The DDS02.2-A200-B is designed to operate within temperatures of 0 to 45°C.
Q: What is the maximum installation elevation for the DDS02.2-A200-B?
A: This model can be installed at altitudes up to 1000 meters above sea level.
