Product Description:

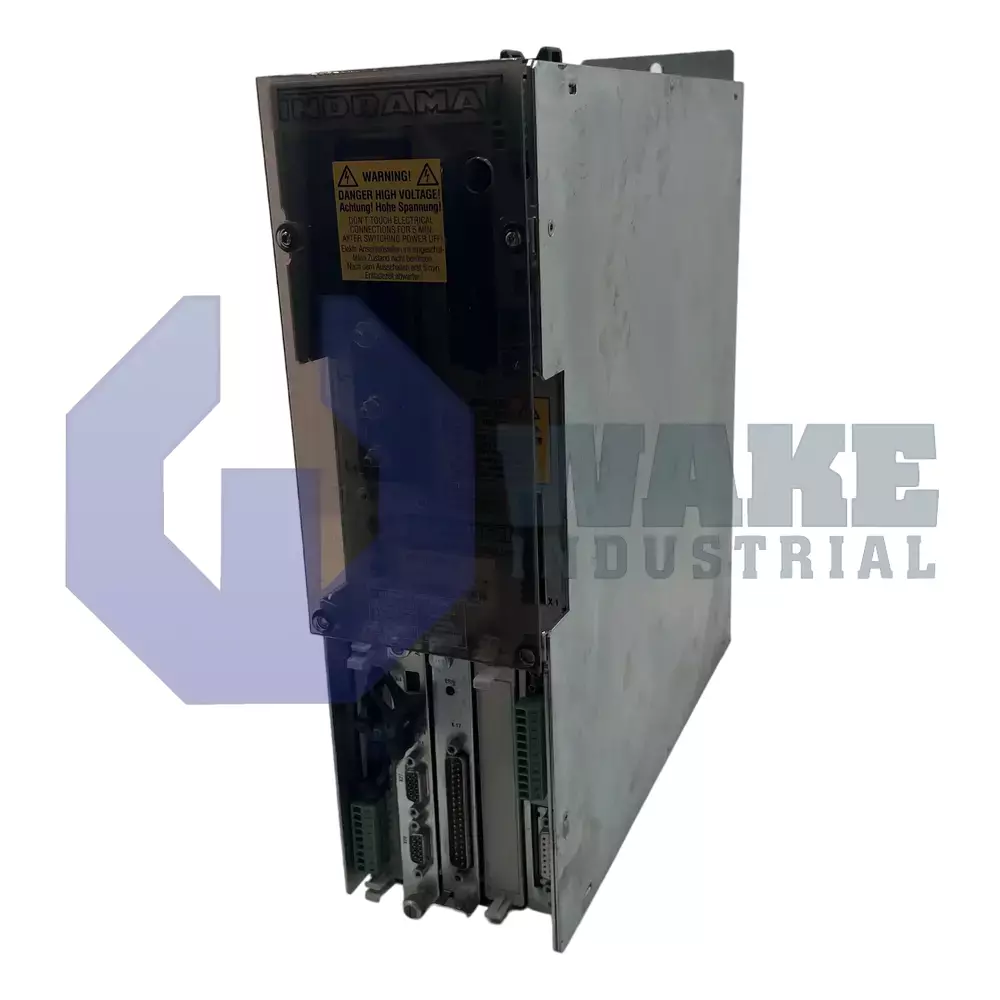

The DDS02.1-W200-DS24-04-FW is a digital AC servo drive controller manufactured by Bosch Rexroth Indramat for the DDS Drive Controllers series. In an automation cell, it interprets motion commands and delivers regulated power to synchronous motors. This closed-loop actuator stage helps position machine axes with high accuracy and stable response during coordinated motion. It converts command values into controlled motor output so the connected axis can accelerate, hold speed, and stop with repeatable behavior. Its control function makes it suitable for packaging, handling, and other multi-axis machinery where repeatable motion is required.

The drive can deliver up to 200 A of continuous output current, so conductor sizing and cabinet heat extraction must support that load. That current capacity supports large servo axes, but it also requires suitable wiring and cabinet ventilation. Cooling relies on air drawn from inside the control cabinet, so overall panel airflow controls operating temperature. An enclosure rating of IP20 protects against accidental finger contact, which means the unit is intended for installation in a clean cabinet. Real-time axis data are exchanged over a SERCOS interface, providing deterministic communication on a fiber-optic ring. Precise rotor position is supplied to the controller through digital servo feedback, allowing tight velocity and position control.

The permitted working range is 0 – 45 °C, and the hardware may be stored at -30 – 85 °C without damage to internal components. Operation is valid up to 1000 m above sea level, and higher installation heights require derating because reduced air density lowers cooling effectiveness. The unit is Version 1 in the Line 02 platform, which matches the connector layout used for that generation. Storage and operating conditions should remain within these ranges to support reliable thermal performance. These limits should be considered when the controller is installed in enclosed cabinets or warmer production areas.
