DDS02.1-W150-RS03-03-FW
MPN: R911286953
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days

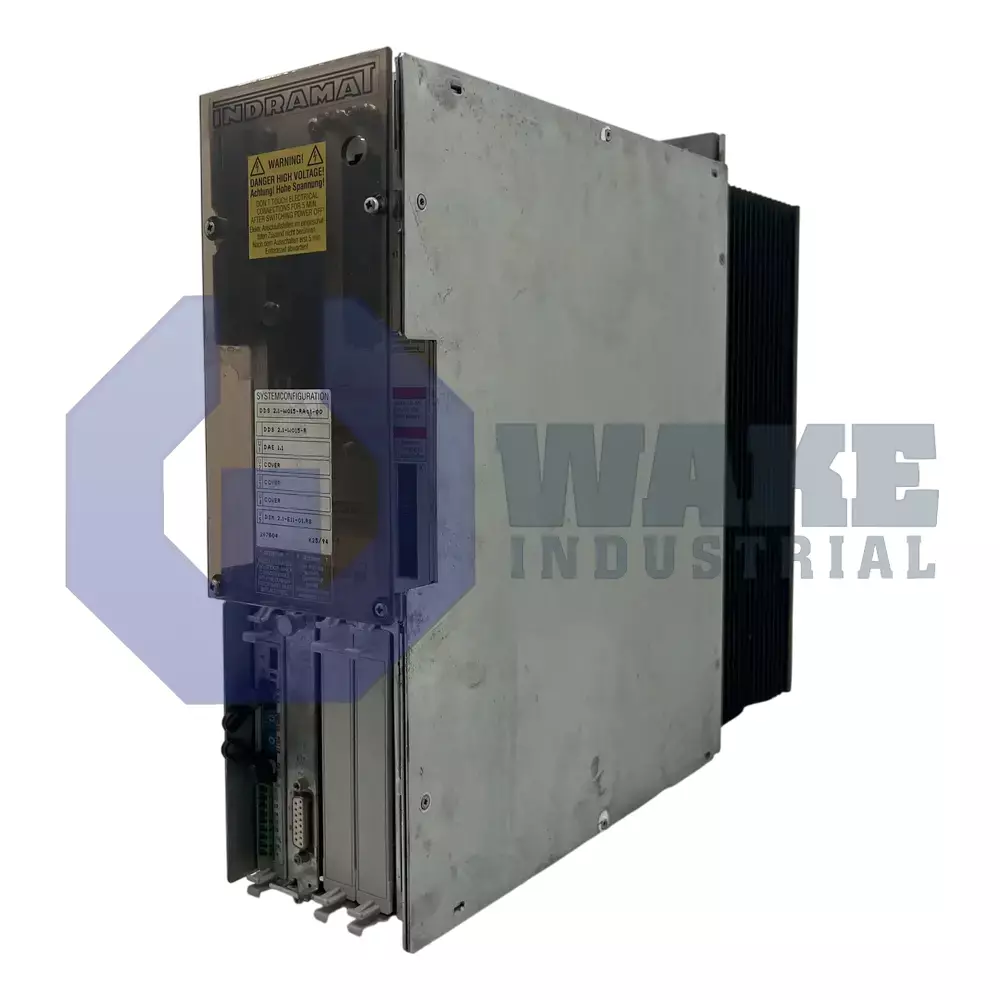

The DDS02.1-W150-RS03-03-FW Servo Drive is manufactured by Bosch Rexorth Indramat. The drive operates with Internal Cooling, 150 A rated current, and Resolver Feedback.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth has contributed greatly in industrial automation for the good cause. The company is known for its quality and standard in industrial servo motors, drive controllers, and power tools like drills, cutters, and grinders.
The DDS02.1-W150-RS03-03-FW model is a drive controller with an approximate weight of 5.5 kg with a simple and lightweight body to allow efficient heat exchange with the environment. The DDS02.1 drive controller generates heat during continuous running which must be dissipated using an external cooling fan or blower. The drive control unit is designed to be operated in specified ambient and environmental conditions including a permissible temperature with rated data of 0 - 45 degree Celsius. If needed to store the device, the temperature should be maintained between -30 and +85 degree Celsius. The drive controller is protected under IP20 category housing with design according to EN 60529 (IEC 529-1989). The maximum permissible absolute air humidity of 25 g/cubic-meter and relative air humidity of 95%. The DDS02.1 drive controller requires an input of 300 V with a tolerance of 15%.
The model DDS02.1-W150-RS03-03-FW uses a resolver optional module for motor feedback and SERCOS interface for connection with multiple drive applications. The drive controller is designed to allow easy handling and cooling. The device is rated to handle 150 A of current. The connection point U5 is dedicated for the software module while U1 is for the command-communications module. The electrical connections should be made according to the schematic diagram provided in the user manual. Contact Wake Industrial for maintenance or repair services for the product (DDS02.1-W150-RS03-03-FW). Note that the drive controller is installed on a flat and clean surface.
